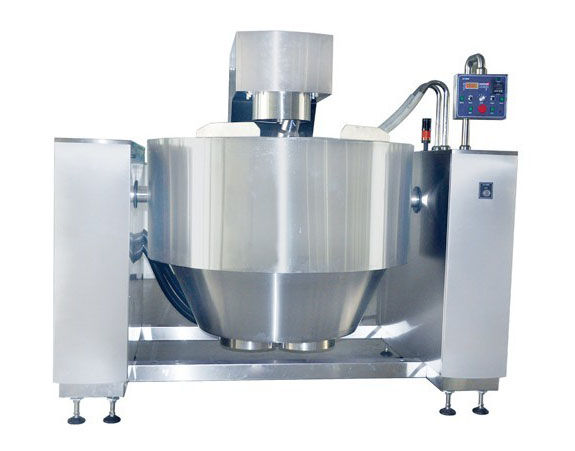

Gas fired chili sauce frying pan
  • Gas fired chili sauce frying pan

Gas fired chili sauce frying pan

Parameter:
Volume of the pot:200L
The depth of the pot:900mm
Revolutionary speed:6.7-33
Rotary speed:14-69.3
Power:22.kw
Electricity requirement:380v/50hz
Weight of the equipment:800kg
Dimension:190*1550*1750mm


Product introduction:

The hot pepper meat sauce frying pan heated by gas can fry hot pepper sauce, various meat sauces and some jam products. It belongs to one of the hot pepper sauce frying pans. The way of gas heating is adopted. The heating of the pot body is relatively uniform, the heating speed of domestic materials is fast, and the work efficiency is high. The hot pepper meat sauce frying pan heated by gas has a system automatic discharge system, and the application is more convenient by selecting circuit operation. The pot body can be tilted at any angle, reducing the labor intensity of workers.


Scope of the application:

Hot pepper meat sauce frying pan heated by gas is widely used in canteens of enterprises and institutions such as schools, troops, hospitals, factories, Chinese restaurants and catering centers


Advantage of the product:

1. The bottom scraping and mixing system completely overcomes the high viscosity material without damaging the nutritional components, and maintains environmental protection and energy conservation standards. It is also an ideal choice for food filling companies.

2. The system adopts automatic discharging system and circuit operation, which makes the application more convenient. The pot body can be tilted at any angle, which reduces the labor force and improves the work efficiency.

3. The pot body is molded with 304 stainless steel plate. It is closed as a whole without blind area. It is easy to clean and does not paste the pot.

4. All parts of the frame are made of 304 stainless steel and polished, which meets the specifications of sanitary inspection standards.

5. The system adopts automatic discharging system and circuit operation, which makes the application more convenient. The pot body can be tilted at any angle, which reduces the labor force and improves the work efficiency.

6. The special frying pan for chili sauce frying pan is made of SUS304 stainless steel, which fully meets the food quality specifications


Note:

1. Before formal using, the agitator shall be operated without load. If there is no abnormal noise, it can be put into application

2. To lubricate the facility reducer regularly;

3. In the working process of automatic stirring frying pan operation, the effectiveness of the facilities must be grounded; When connecting the power supply for the first time, check whether the facility shell is leaking electricity. If leakage is detected, check the electrical circuit immediately

4. In the working process of the facility, it is forbidden to put hands in the pot to prevent risks;

5. In case of invalid operation and continuous mixing of automatic mixing frying pan, the power supply shall be cut off in time for inspection, and the operation can be put into operation again after the phenomenon is cleared
