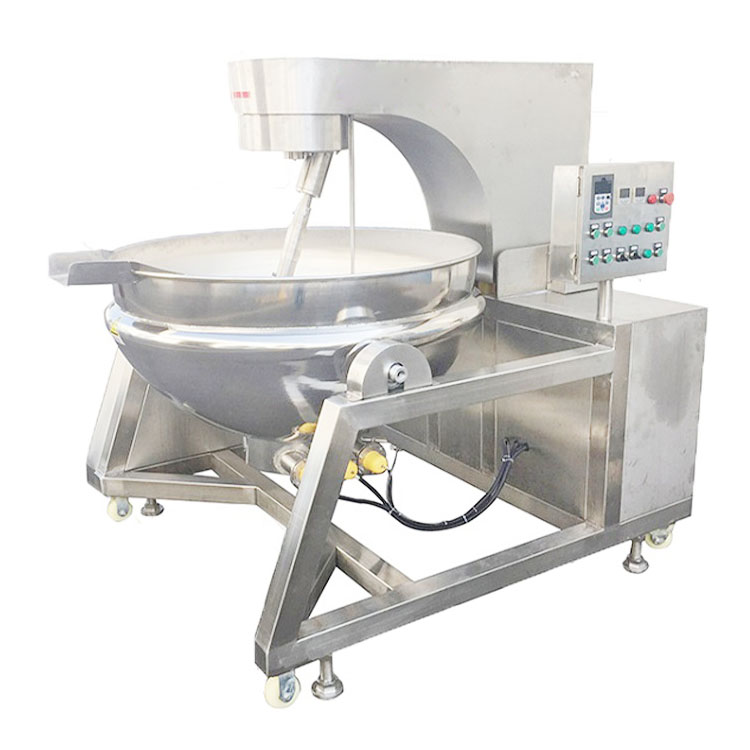

Tilting chili sauce sandwich pot
  • Tilting chili sauce sandwich pot

Tilting chili sauce sandwich pot

Parameter:
Volume of the pot:400L
Depth of the pot:1100mm
Revolution speed:6.7-33
Rotation speed:14-69.3
Power requirement:22.kw
Voltage and frequency:380v/50hz
Weight of the equipment:1000kg
Dimension:190*1550*1750mm


Products introduction:

The tilting chili sauce sandwich pot is made of stainless steel, which ensures that the finished products of chili sauce meet the provisions of food hygiene standards. This sandwich pot has a systematic automatic discharge system, which overcomes the phenomenon that it is difficult to discharge and not easy to clean. It can be used for the production and processing of chili sauce, seafood sauce, beef sauce and other sauce products. It is applied in large restaurants, canteens, schools and other places, It has the advantages of rapid heating, energy saving and efficient operation.


Scope of the application:

It is widely used in the processing of all kinds of food. It can also be used in large restaurants or canteens to boil chili sauce, seafood sauce, beef sauce and other sauce products


Advantage of the product:

1. The bottom and side of the tilting chili sauce sandwich pot are divided into three-layer structure, with thermal insulation and circulating oil circuit, rapid heating and energy saving. So as to increase the output.

2. The hydraulic lifting method rotates the pot body, maintains the separation of the agitator and the pot body, and then carries out the hydraulic inclined pouring system, which can be inclined at an angle of 90 °, which is conducive to cleaning and reduces the amount of labor.

3. The tilting chili sauce sandwich pot is a tilting lower mixing frying pan, which overcomes the phenomenon that the upper mixing is difficult to discharge and not easy to clean.

4. The tilting chili sauce sandwich pot has a systematic automatic discharge system, which is operated by circuit, and the application is more convenient. The pot body can be tilted at any angle, which reduces the labor force and improves the work efficiency.

5. The pot body is molded with 304 stainless steel plate. It is closed as a whole without blind area. It is easy to clean and does not paste the pot.

6. The tilting chili sauce sandwich pot is made of SUS304 stainless steel, which fully meets the food quality specifications.


Note:

1. In case of invalid operation and continuous stirring of chili sauce sandwich pot, the power supply shall be cut off in time for inspection, and the operation can be put into operation again after the phenomenon is cleared;

2. In the working process of facility operation, it is forbidden to put hands in the pot to prevent risks;

3. Before formal application, the agitator shall be operated without load. If there is no abnormal noise, it can be put into application;

4. Regularly moisten the reducer of tilting chili sauce sandwich pot;

5. In the operation workflow of tilting chili sauce sandwich pot, the effectiveness of the facilities must be grounded; When connecting the power supply for the first time, check whether the facility shell is leaking. If leakage is detected, check the electrical circuit immediately.
