MOVABLE SCISSOR LIFT
  • MOVABLE SCISSOR LIFT
  • MOVABLE SCISSOR LIFT
  • MOVABLE SCISSOR LIFT
  • MOVABLE SCISSOR LIFT

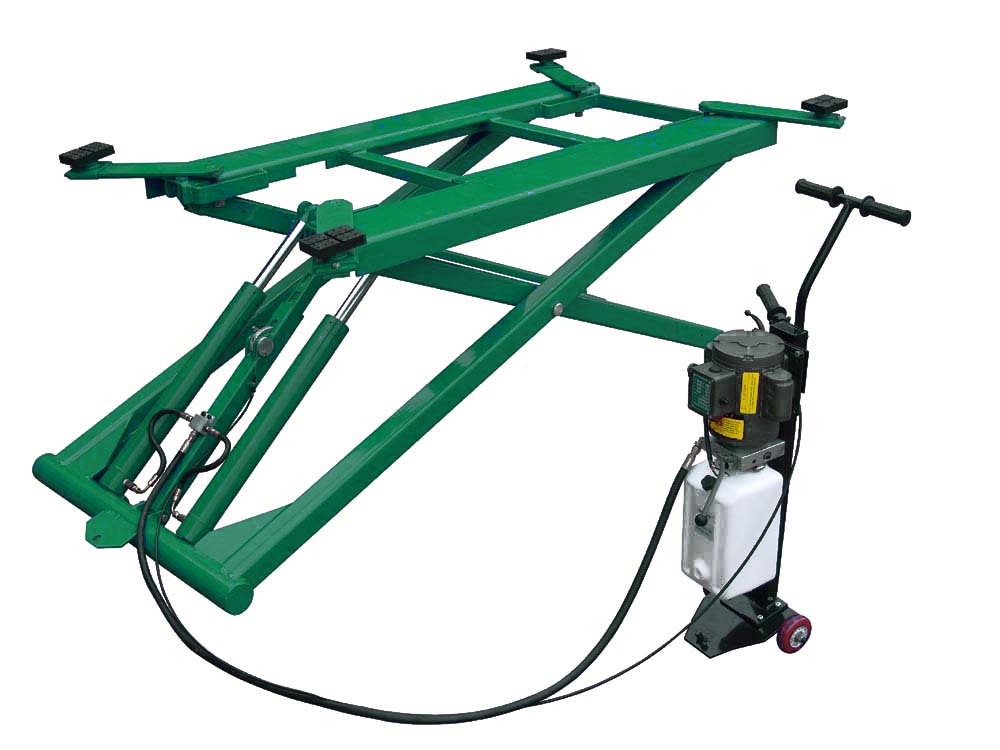

MOVABLE SCISSOR LIFT

Movable, with portable power unit cart serves as pull handle.

Safety lock bar & manual lock release.

Rigid connection of the whole structure to ensure synchronization.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

PARAMETERS

Model NO LS27/1000/M LS30/1200/M
Lifting Capacity 2700 Kg 3000 Kg
Max Lifting Height 1200 mm 1300 mm
Min height 110 mm 110 mm
Platform(L*W) 1680*1080 mm 1680*1080 mm
Movable Device Yes, Portable motor cart serves as pull handle
Lock Release Manual Release Manual Release
Another Lock Release Electric unlock is also available
Documents with Shipping INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET
Warranty 2 years against manufacturing defects
Rise/Drop Time 50 S / 40 S
Power Supply
Motor Capacity
220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
OR according to customers' request
Color Chart

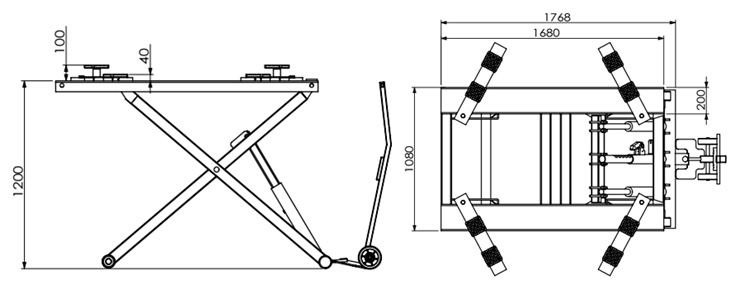

DRAWING
