DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT
  • DOUBLE WIDE 4 POST CAR PARKING LIFT

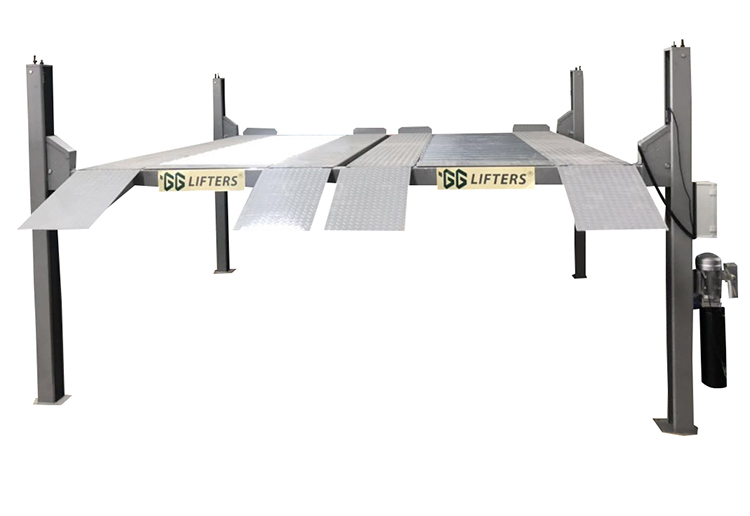

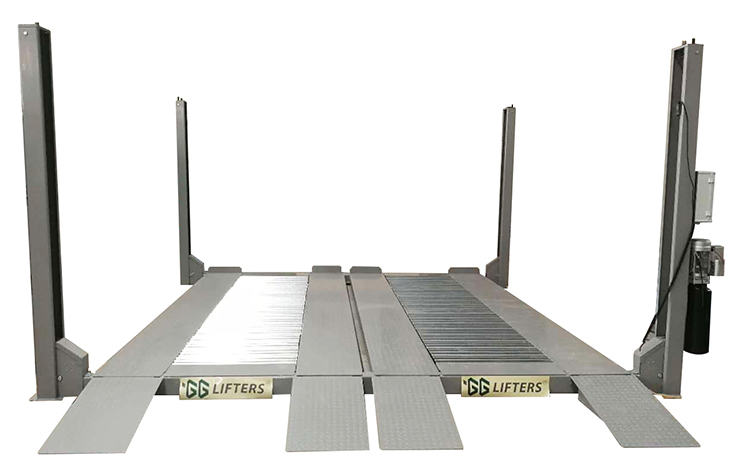

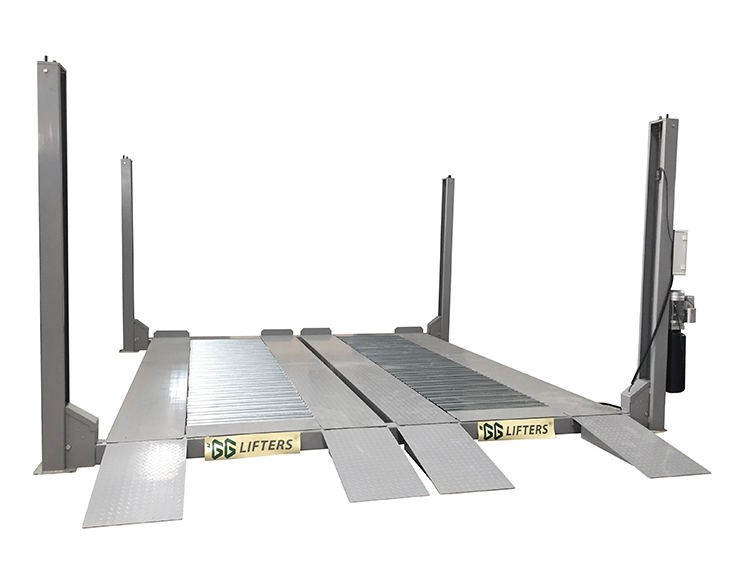

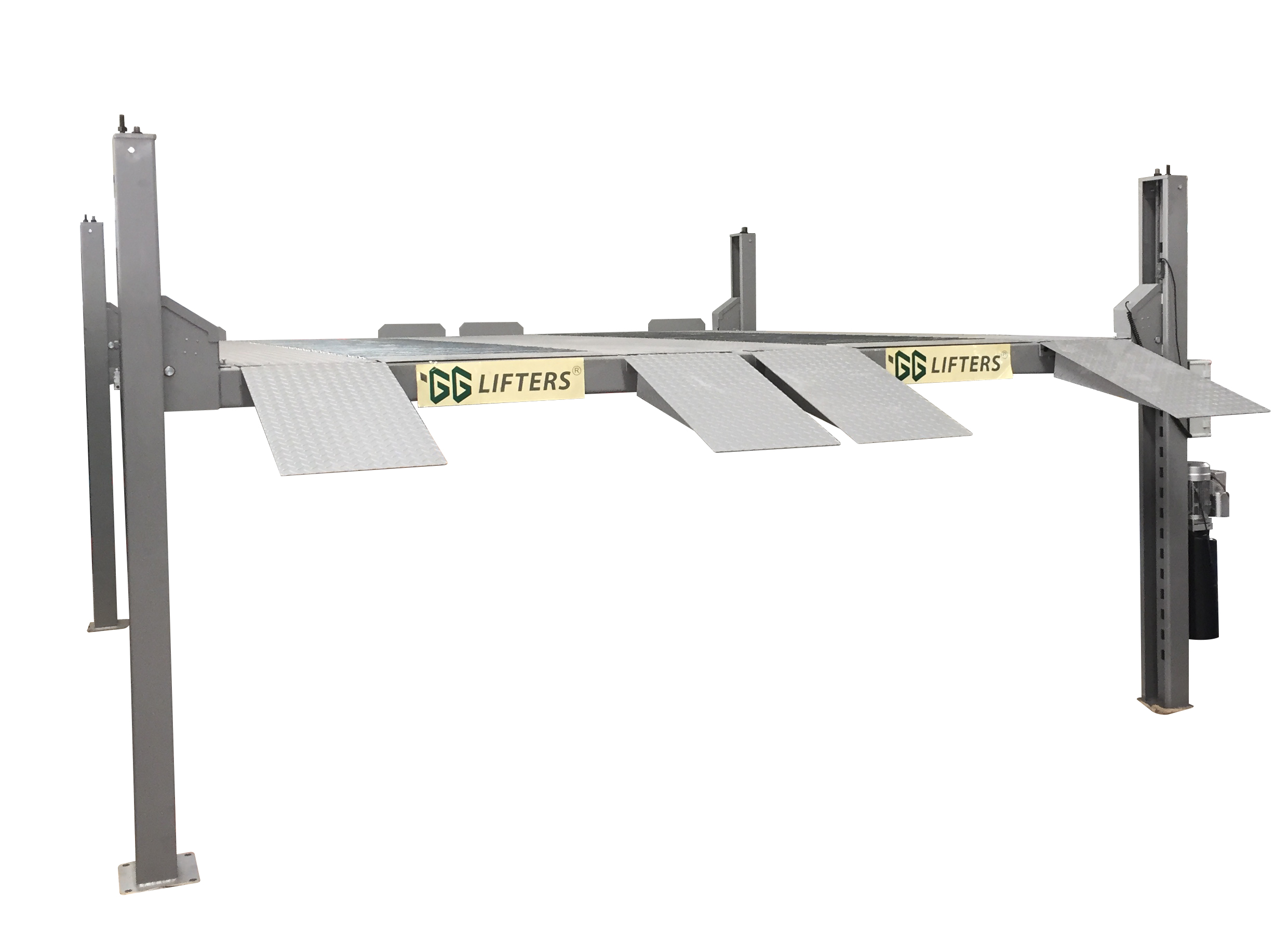

DOUBLE WIDE 4 POST CAR PARKING LIFT

1.  Offering space for 4 cars parking
2.  Customized according to layout,  Space & cost saving due to its compact design.

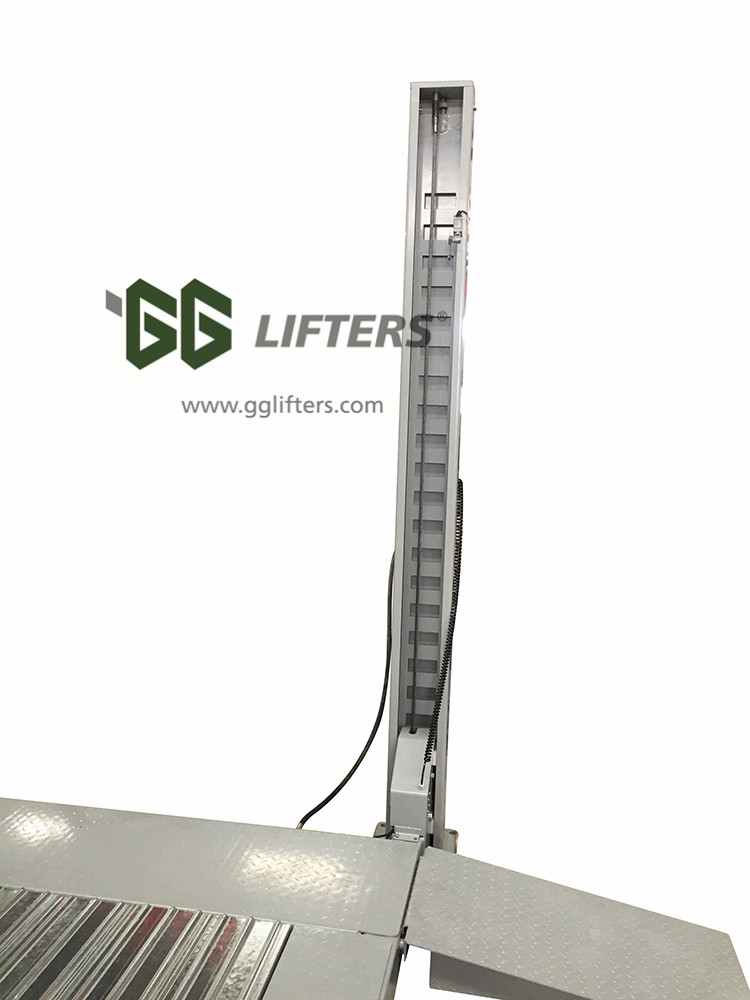

3. Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4. Hydraulic driven and steel rope lifting system.

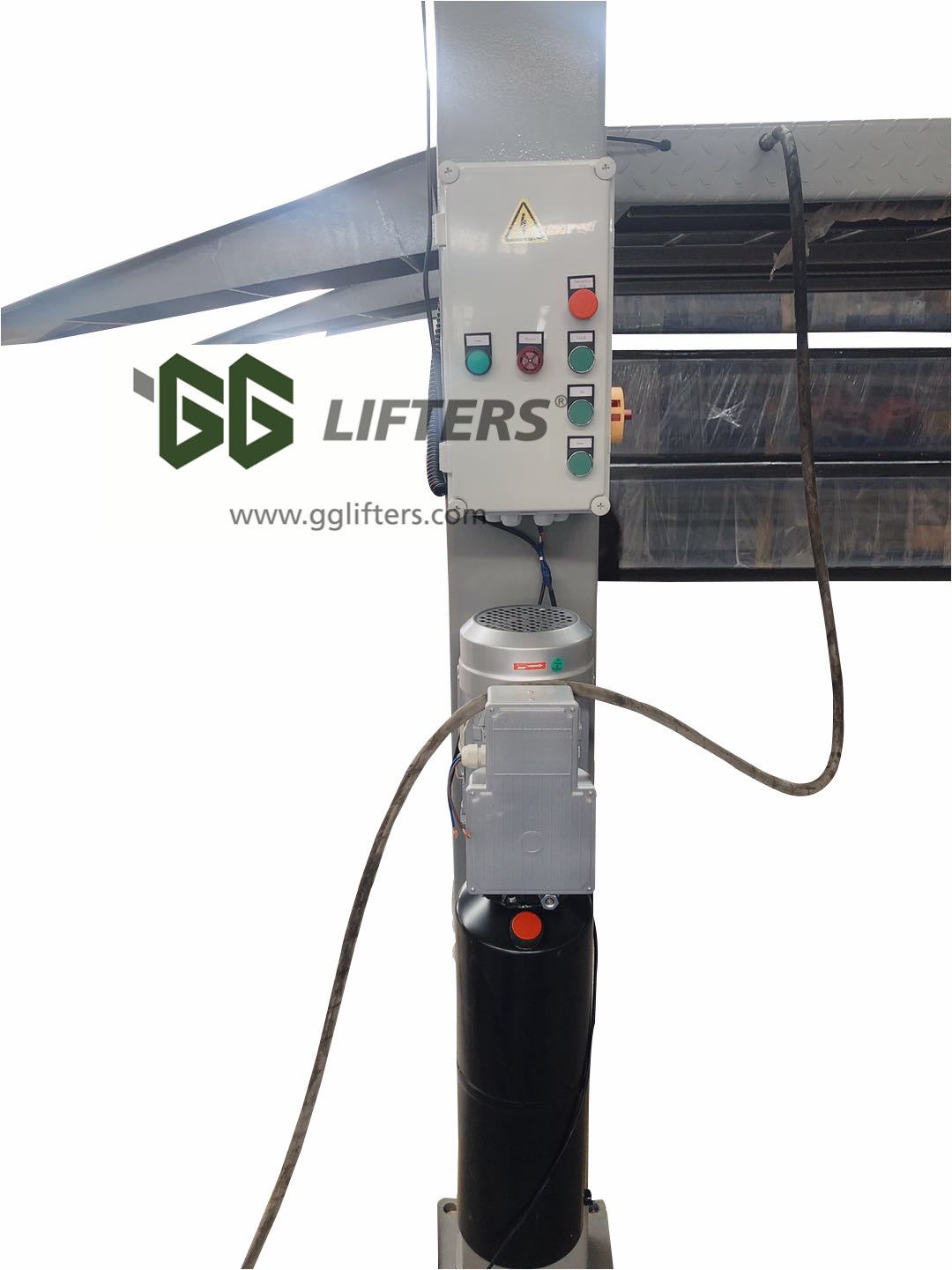

5. Electric operation with operation panel.
6. Automatic locking system with electric lock release.
7. The whole sliding framework synchronous balance system.
8. Suitable for multi-vehicle parking & storage.
9. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

PARAMETER


Model PFP40/2000
Lifting height(mm)  2000
Lifting capacity(kg) 4000kg totally
Operation type  Electric panel
Lock release type electric lock release
Safety devices Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture
Driven mode  Hydraulic driven

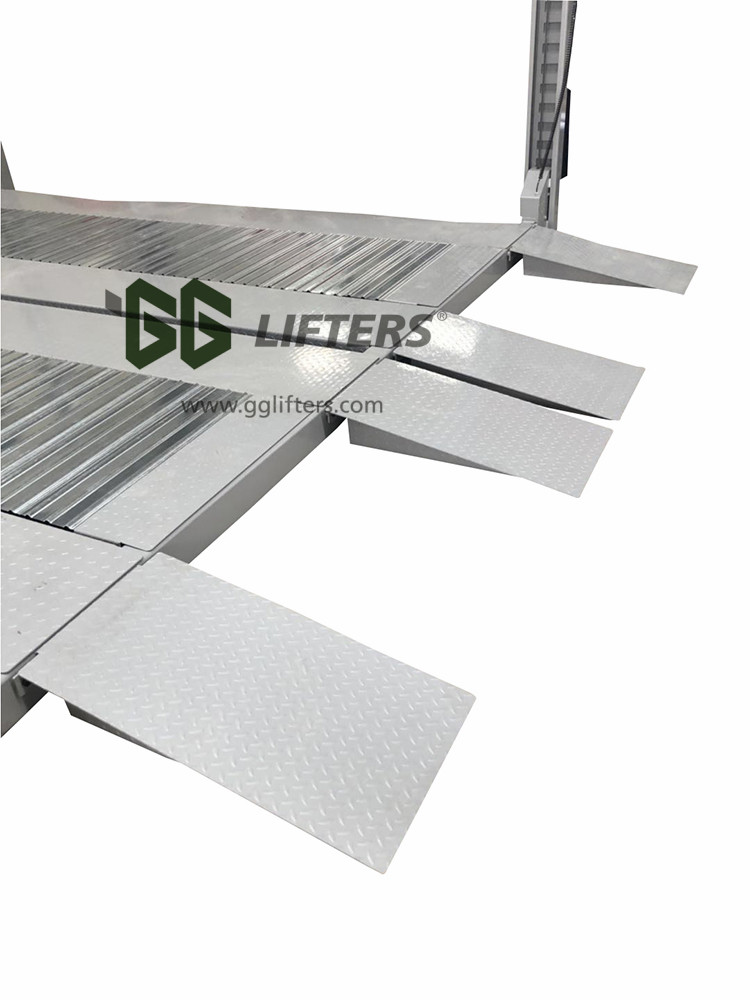

Middle in the runway Galvanized wave plates
space for cars  4 cars
Motor capacity  2.2kw
