ROTARY PARKING SYSTEM
  • ROTARY PARKING SYSTEM
  • ROTARY PARKING SYSTEM
  • ROTARY PARKING SYSTEM
  • ROTARY PARKING SYSTEM
  • ROTARY PARKING SYSTEM

ROTARY PARKING SYSTEM

Motor driven, chain lifting system.

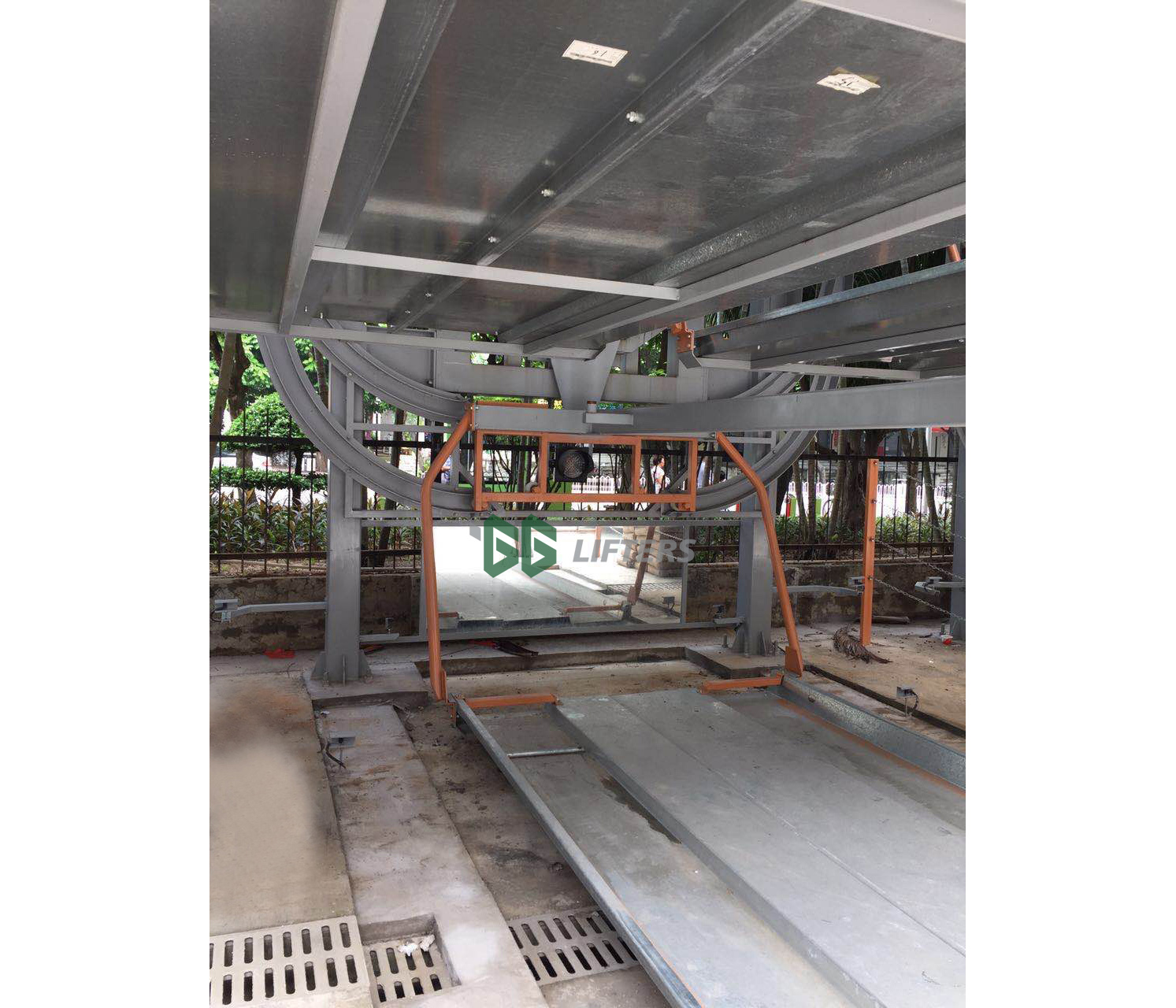

Designed to park vehicles by vertically circulating cage in CW / CCW directions.

The most space efficient parking solution as you can park up to 16 cars in small area doesn’t exceed 2 cars.

Simple one-touch control and doesn’t require professional operator.

Intelligent rotation direction (in CW / CCW) to shorten entry / exit time.

PLC automatic control system, touch screen to call the required vehicle in one touch.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


PARAMETERS

Model NO PCX20/9-16D PCX25/9-16D
Lifting Capacity 2000 Kg 2500 Kg
Vehicle Size 5200*1900*2050 mm 5300*2000*2000 mm
Parking Space 16 cars 16 cars

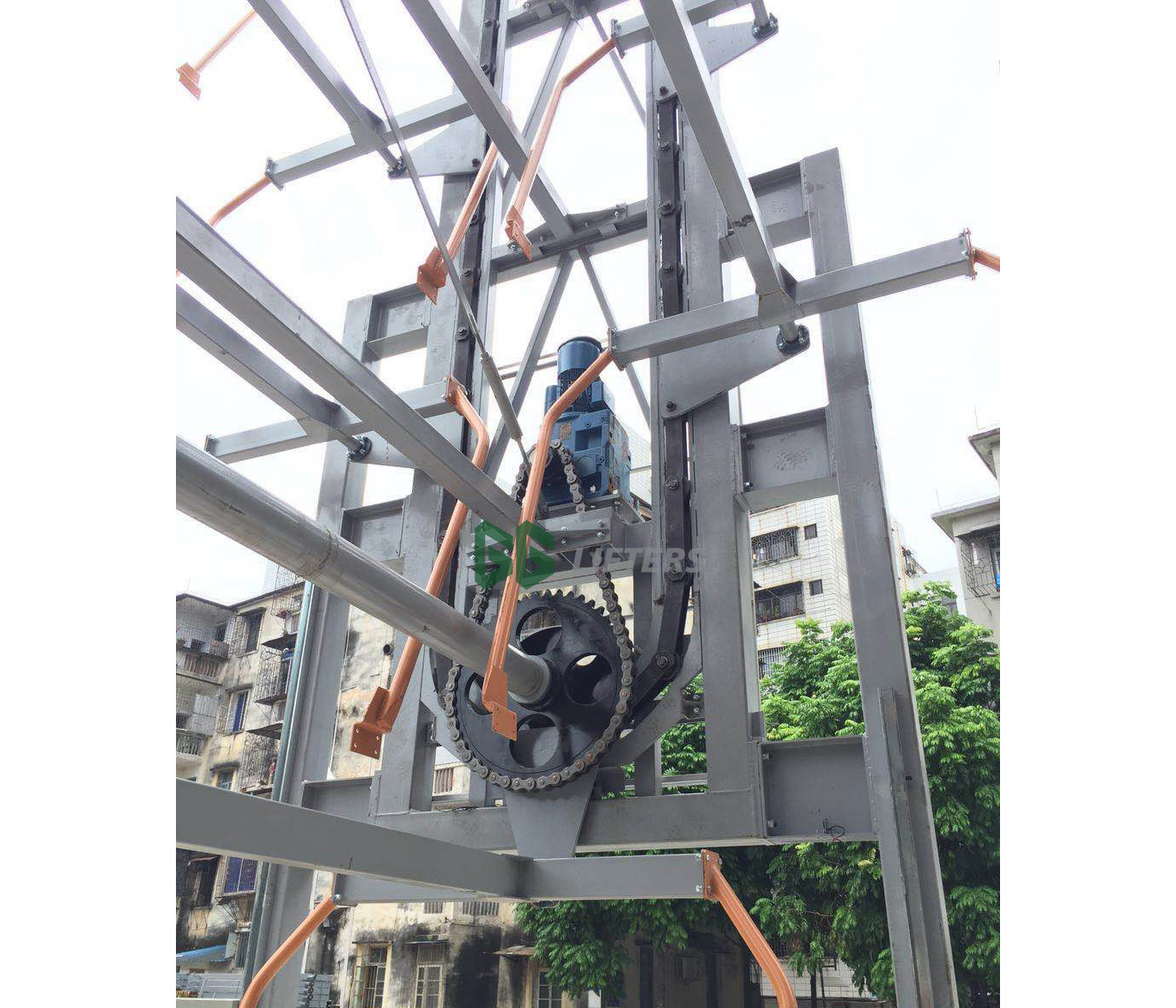

Drive Mode motor + chain + sprocket
Motor Capacity /Speed 7.5 Kw x 4Ph / 4.4 M / Min(2RPM)
15 Kw-MOTOR
9.2 Kw / ≤4.4 M / Min
Operation Mode swiping card / manual button PLC control

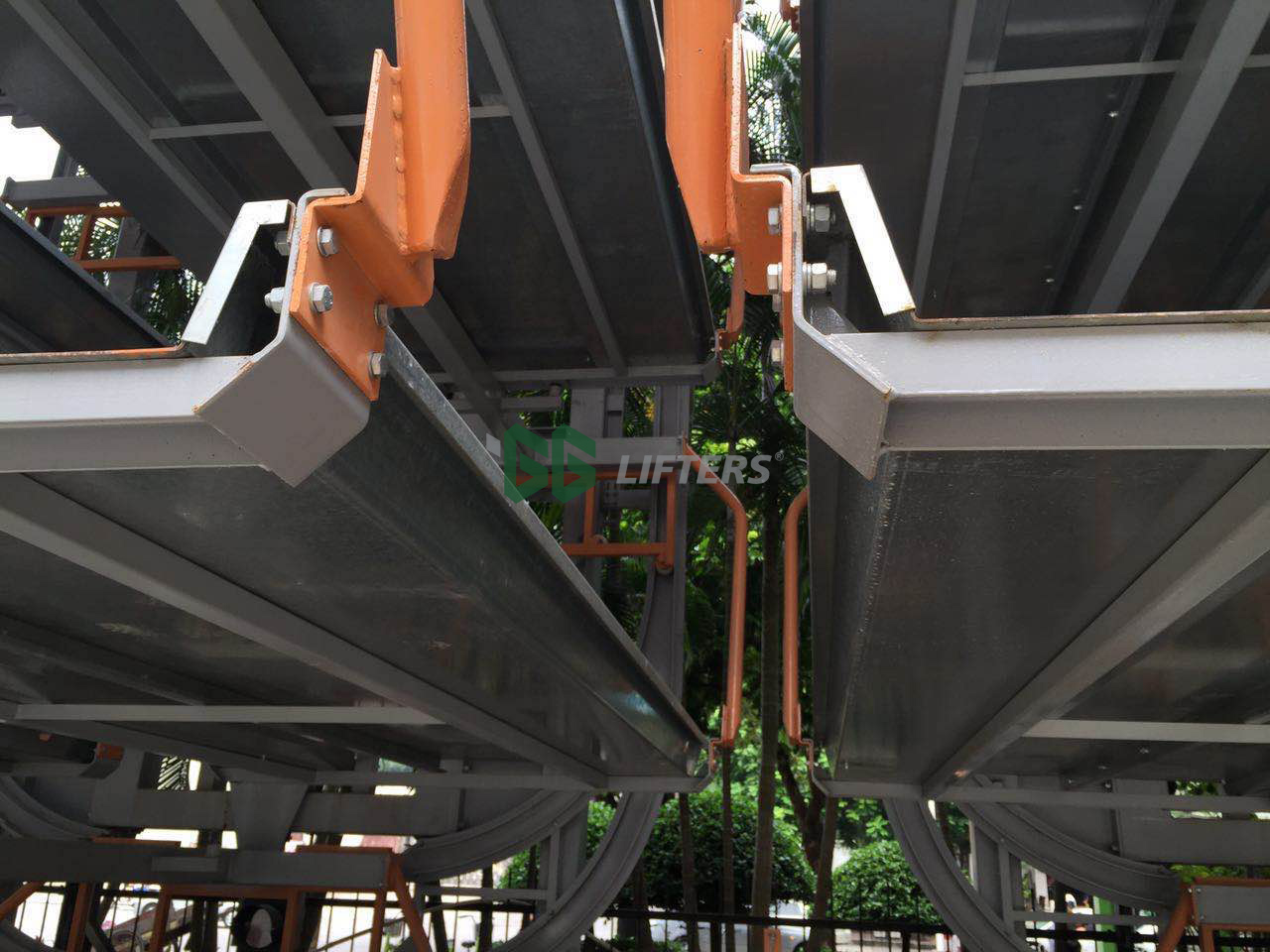

Pallet Materials 2.2 galvanized wave plate 2.2 galvanized wave plate
Total Loading Capacity 32000 Kg 40000 Kg
Warranty 2 years against manufacturing defects
Installation Space 6000*4850 mm 6500*5500 mm
Safety Device photo electric sensor photo electric sensor
Motor Capacity/Power Supply
220 V / 1Ph, 50 Hz / 60 Hz
  or according to customers' request
380 V / 3 Ph, 50 Hz
or according to customers' request
Color Chart

DRAWING
