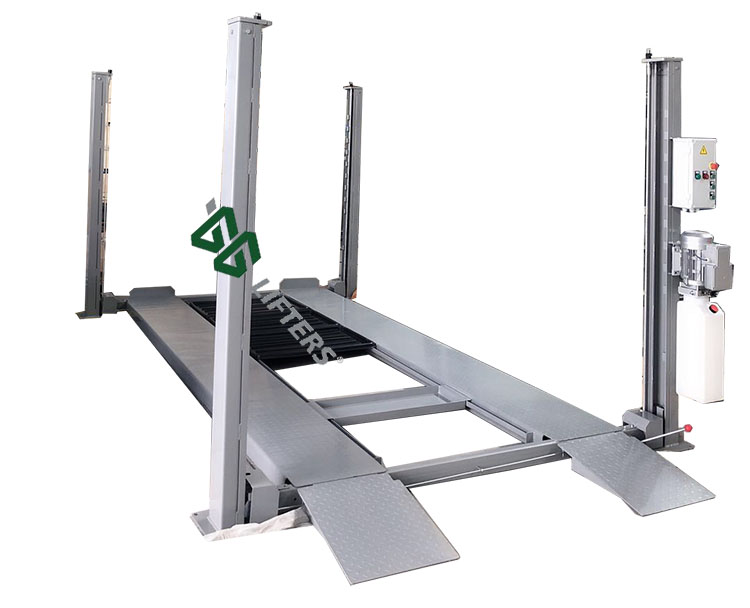

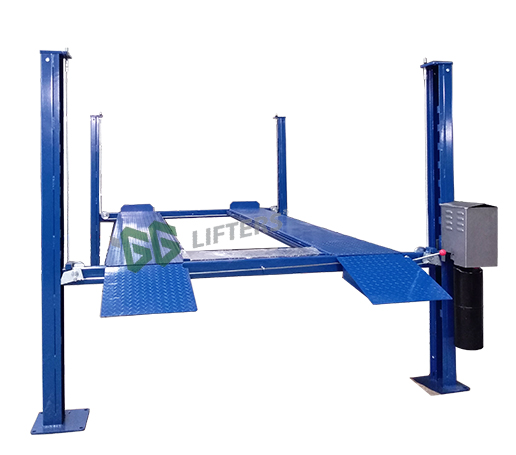

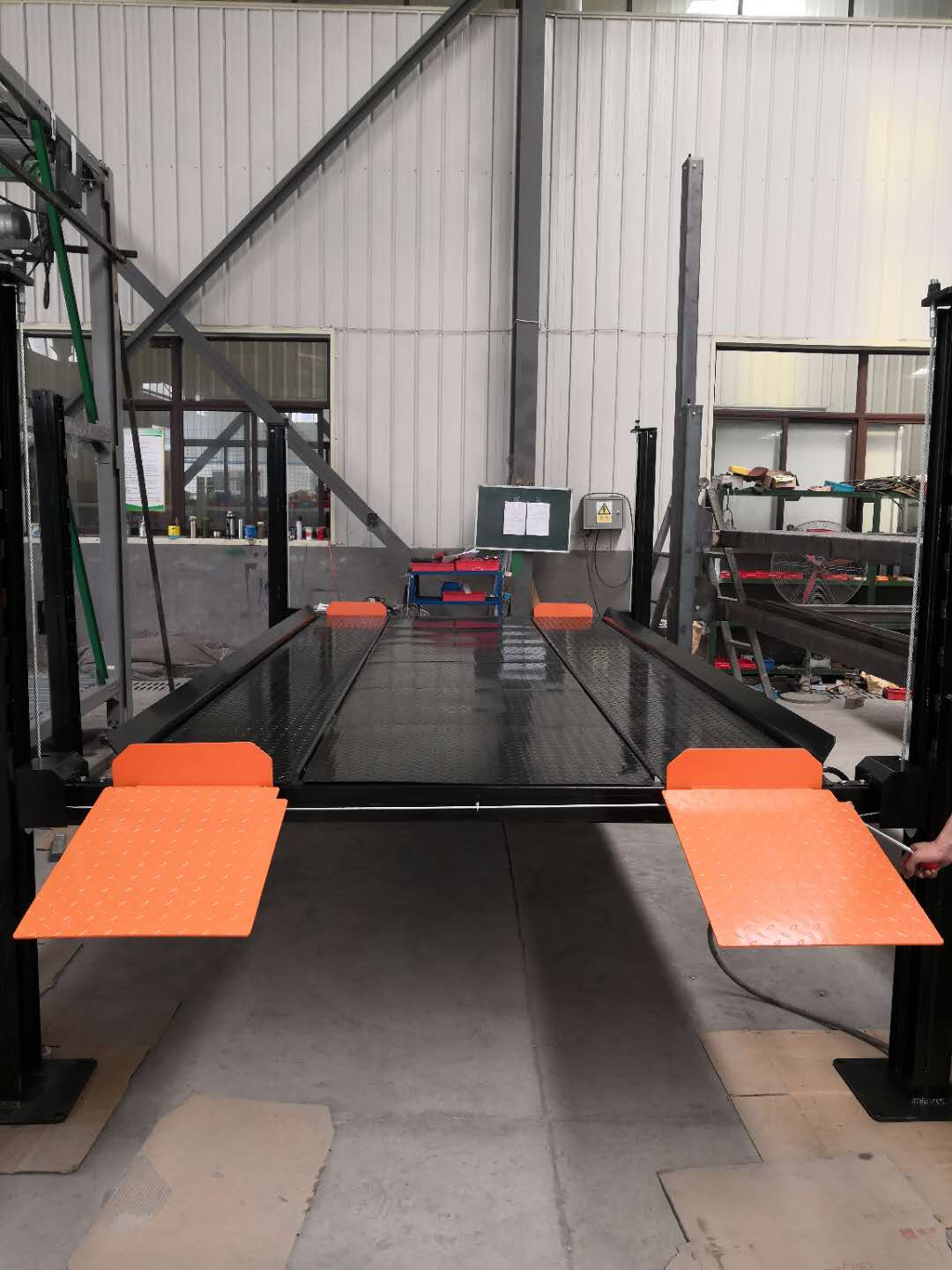

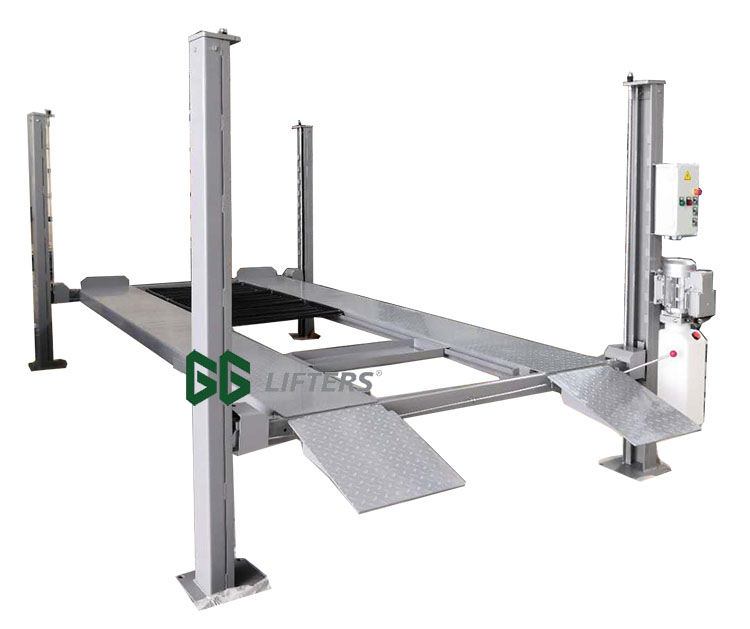

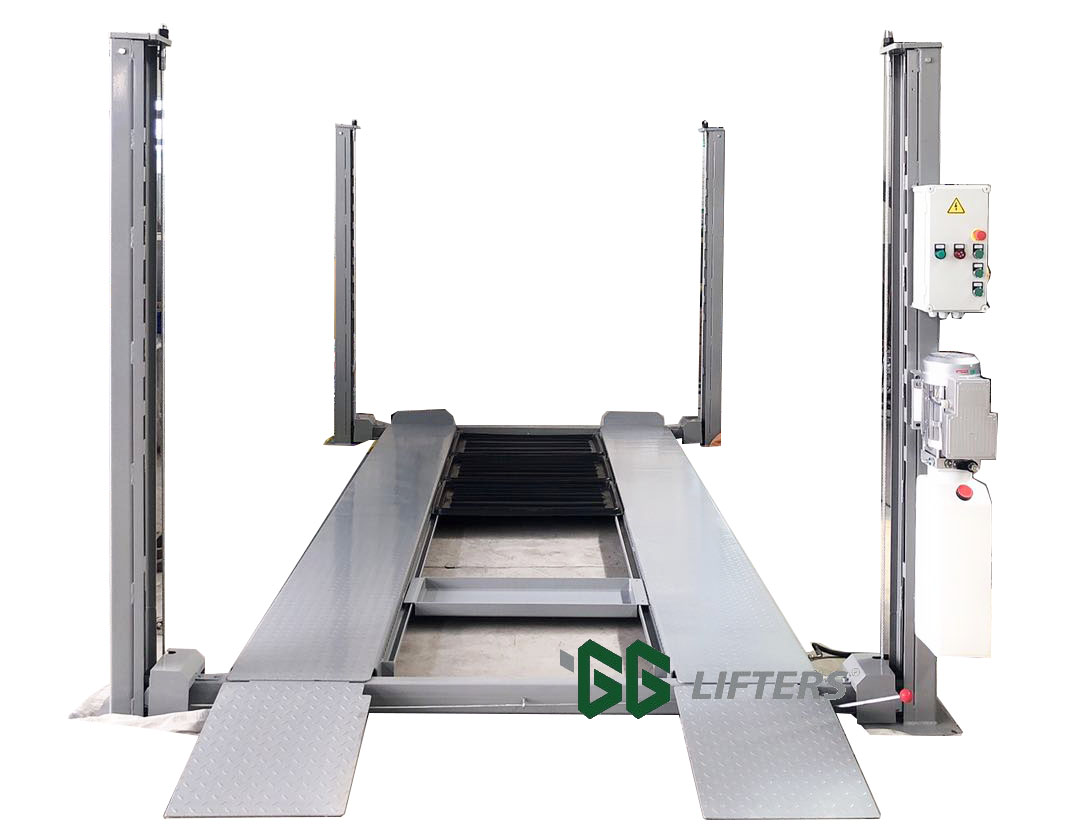

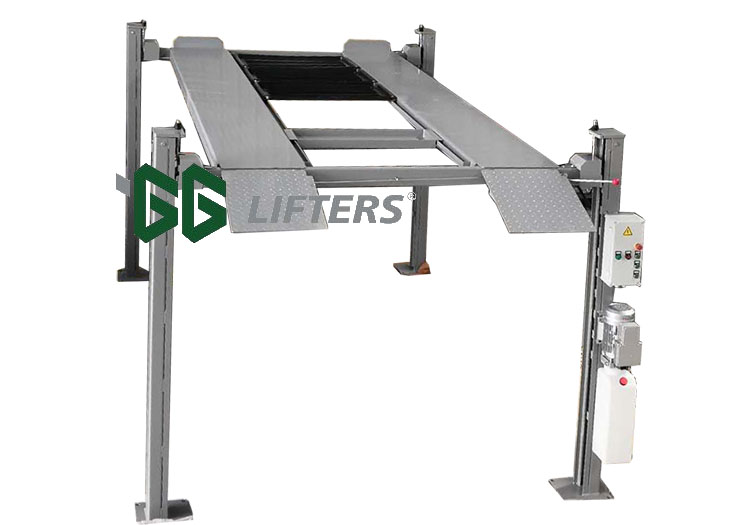

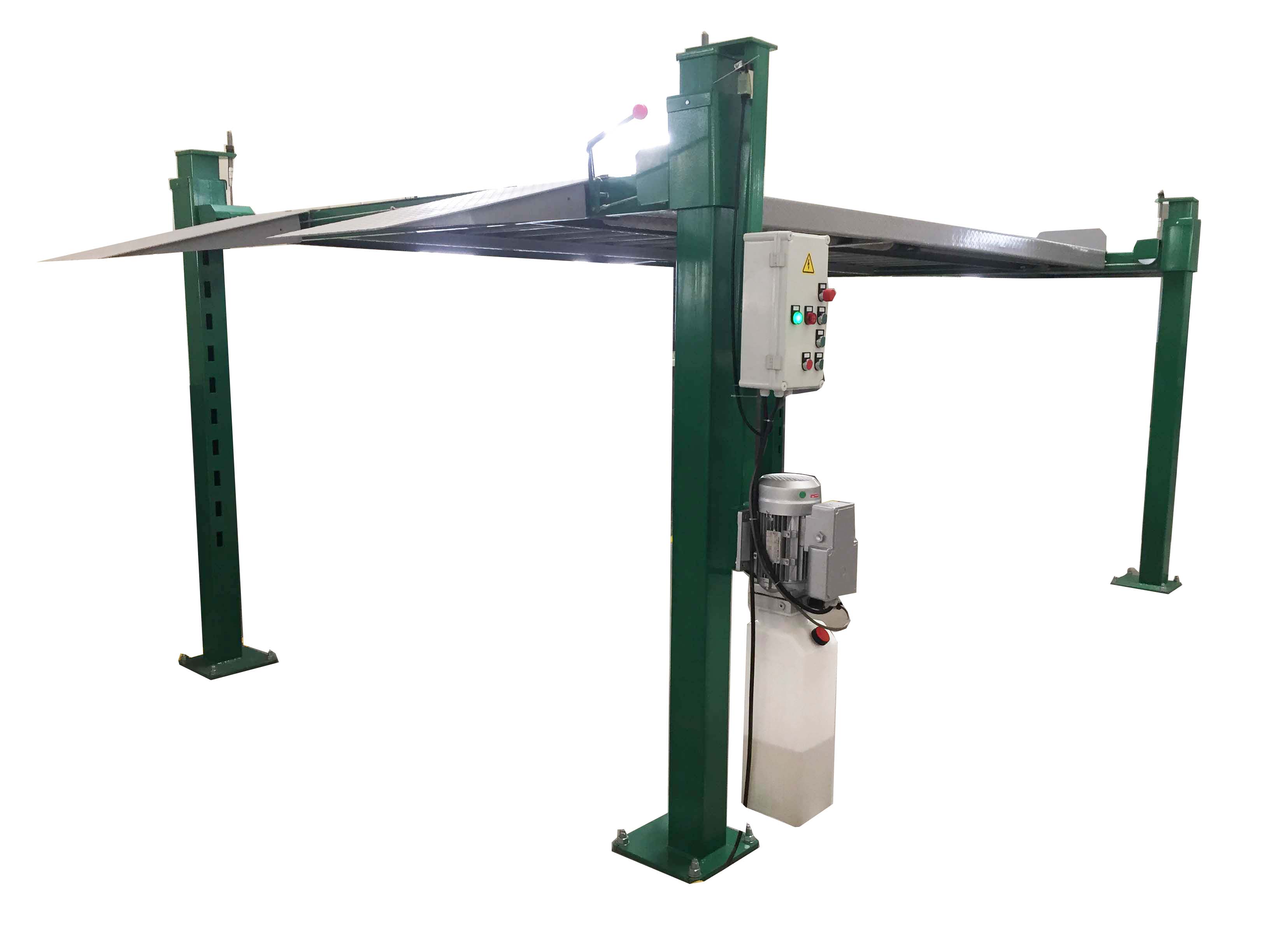

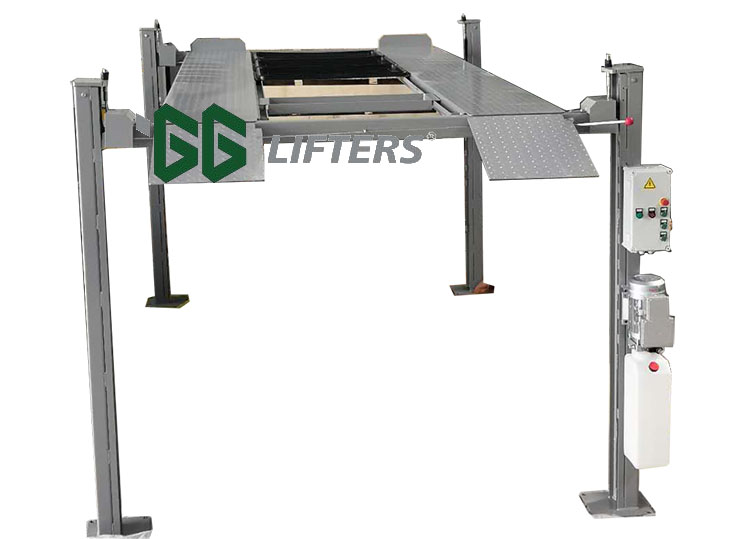

FOUR POST CAR PARKING LIFT
(TWO PARKING SPACE)

Hydraulic driven, steel rope lifting system.

Single stage dual-cylinder lifting.

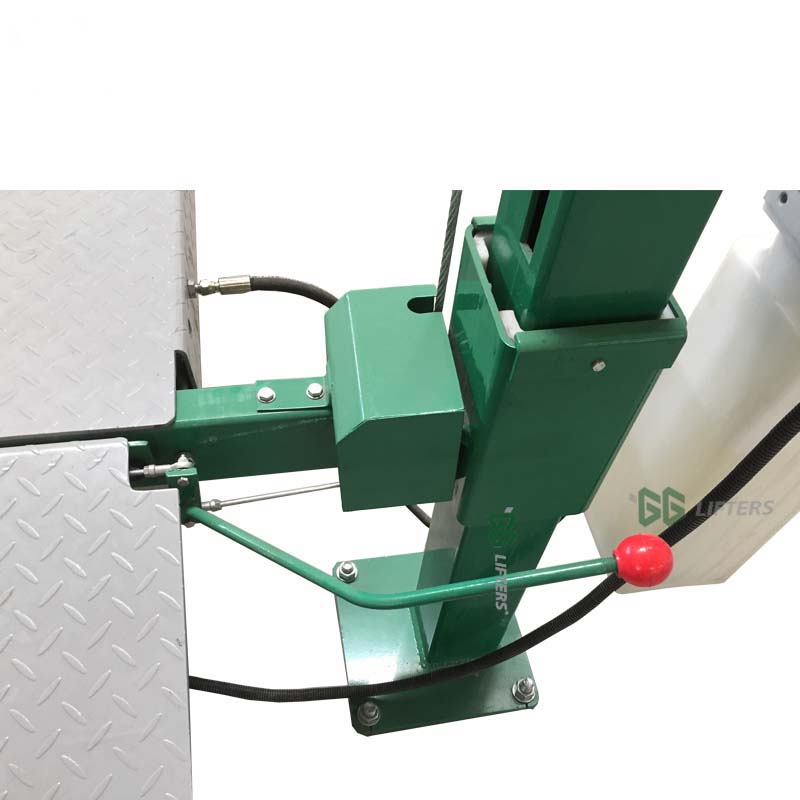

Automatic lock & Manual / electric Lock release.

 High polymer polyethylene slide blocks, wear-resistance.

Platform runway & ramps made of diamond steel plates.

Movable galvanized steel plates in the middle.

Anti-falling mechanical locks in four posts at different heights to ensure utmost safety.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


VIDEO

PARAMETERS

Model No. PFP27/1800 PFP27/2000 PFP36/1800 PFP36/2000
Lifting Capacity 2700 Kg 2700 Kg 3600 Kg 3600 Kg
Max Lifting Height 1800 mm 2000 mm 1800 mm 2000 mm
Drive Through 1900 mm
Middle of Runway plastic oil tray
Lock Release Manual unlock by keep pushing the handle during descent period
Installation Space 4800*2700*2100 mm
Rise/Drop Time 70 S / 60 S
Power Supply/Motor Capacity 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
Color Chart

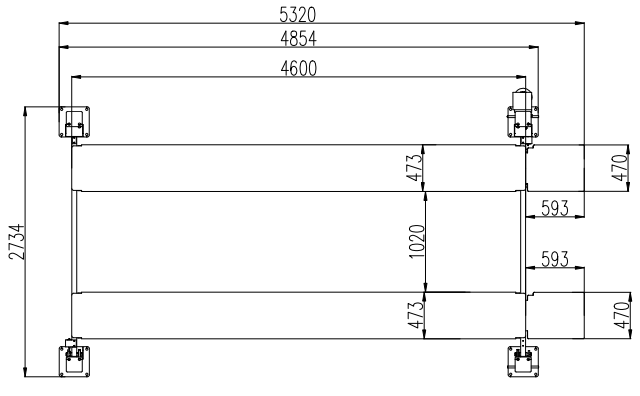

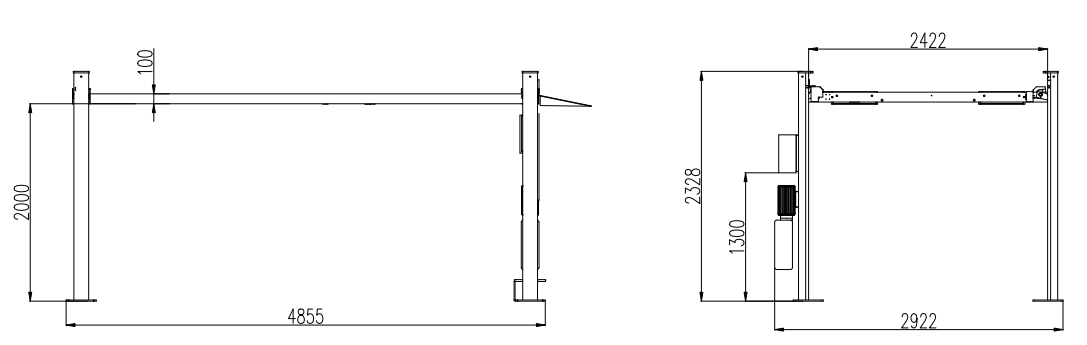

DRAWING

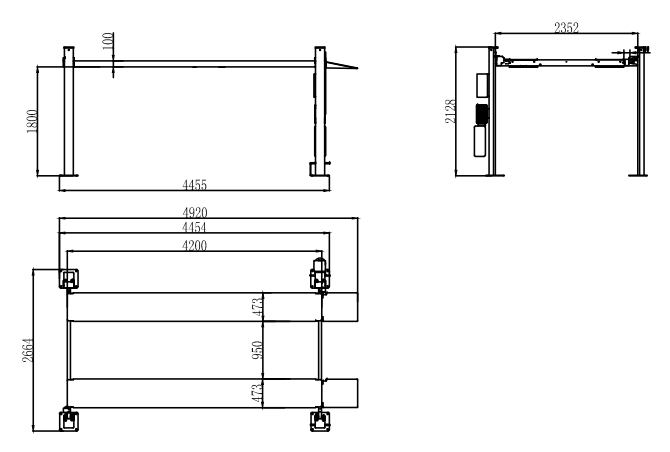

Bending coulmn type PFP36/1800

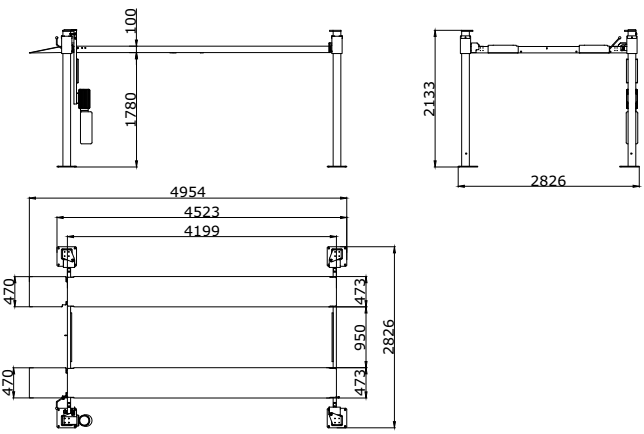

Tube column type PFP36/1800
