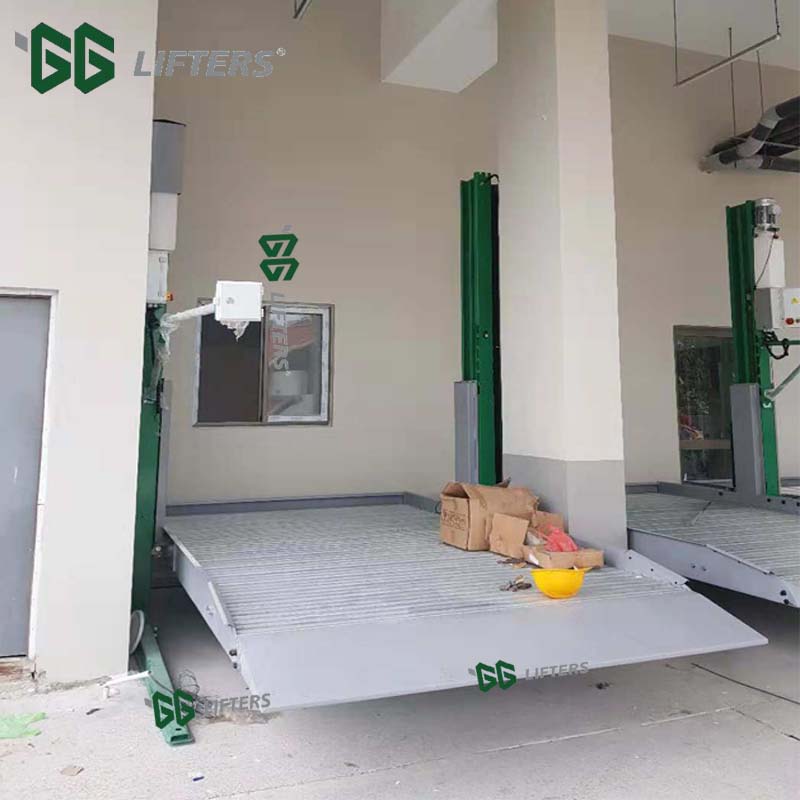

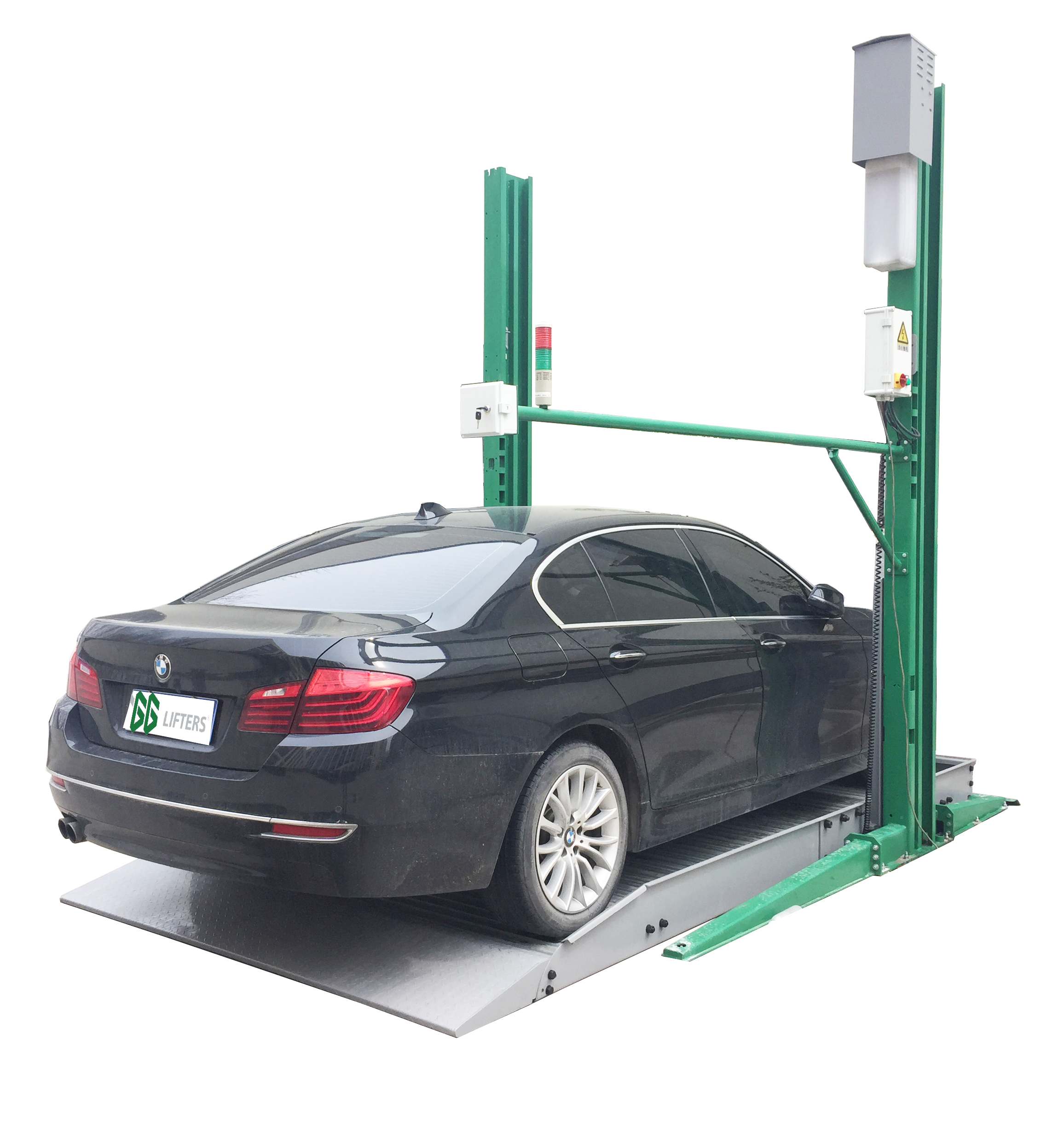

TWO POST CAR PARKING LIFT

TWO POST CAR PARKING LIFT

Hydraulic driven and chain balance system.

Two stage dual-cylinder lifting.

Automatic lock & electric Lock release.

Anti-falling mechanical locks (8 holes) at different heights to ensure safety.

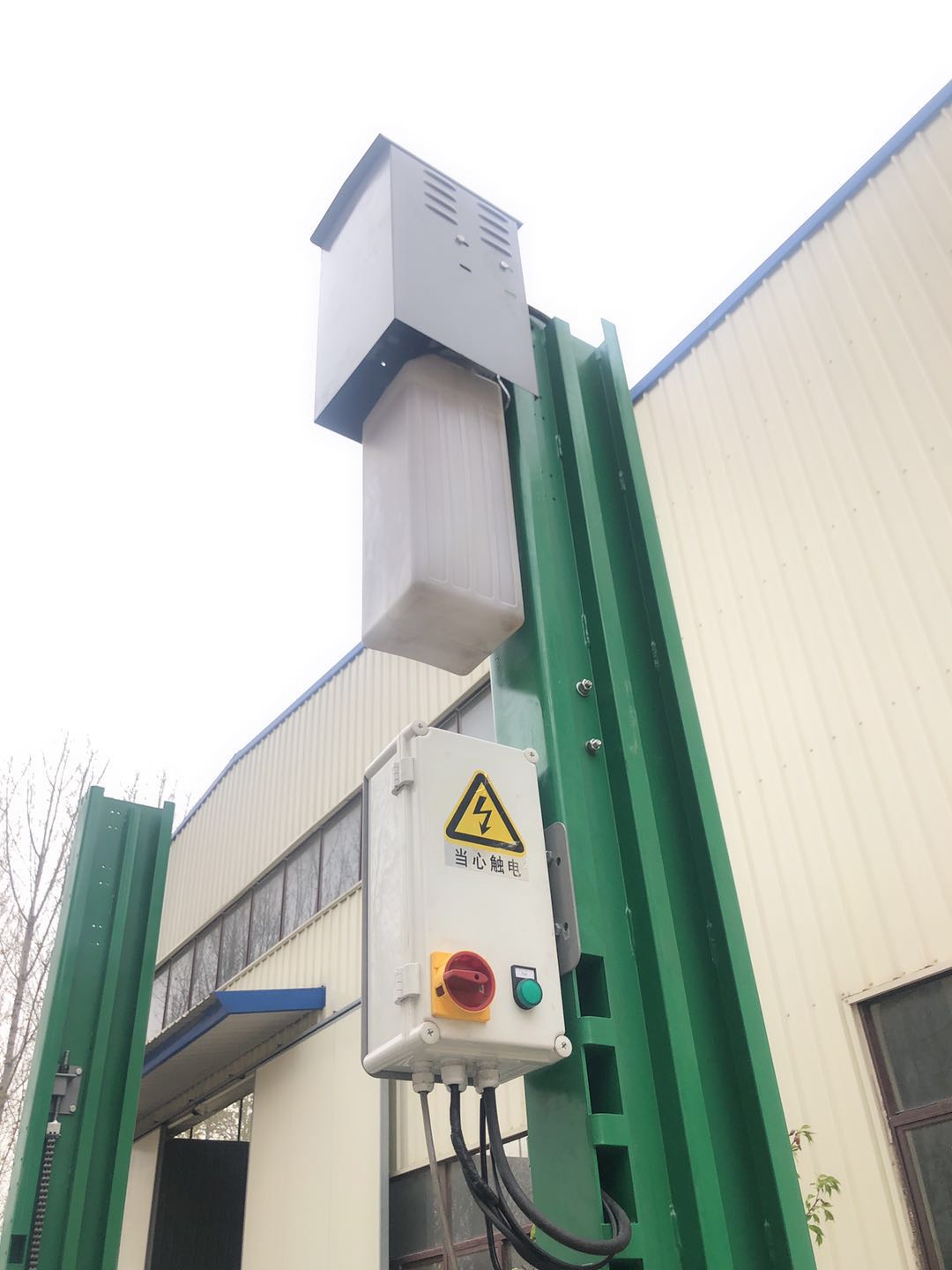

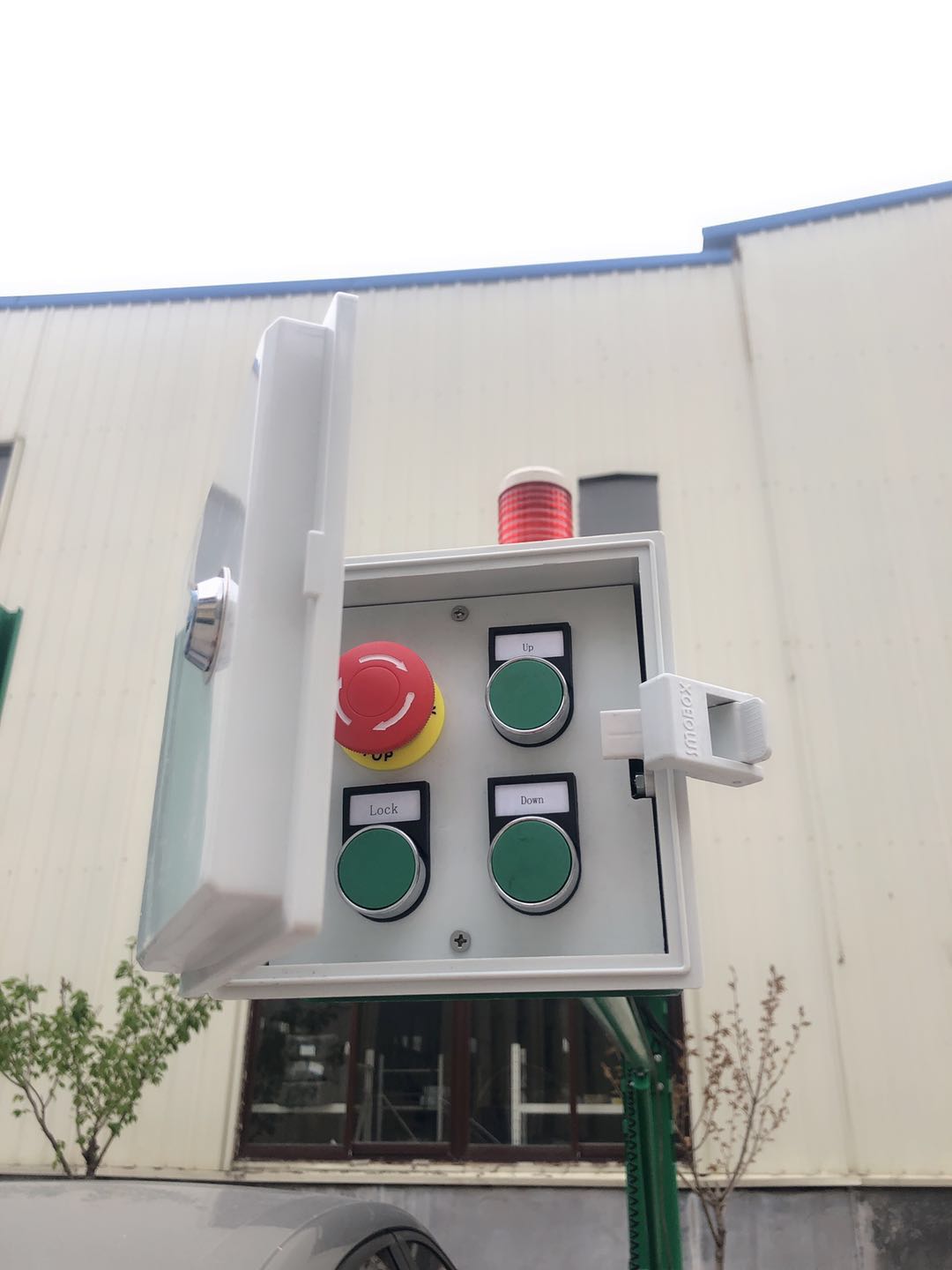

Operation control box (UP, DOWN & Emergency).

High polymer polyethylene slide blocks, wear-resistance.

Suitable for commercial and residential use.

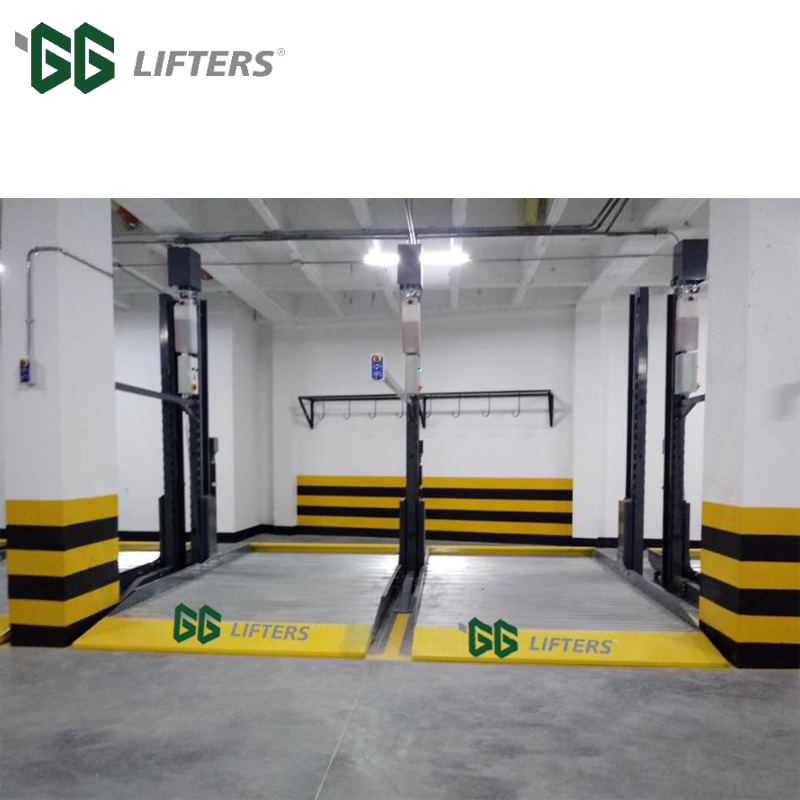

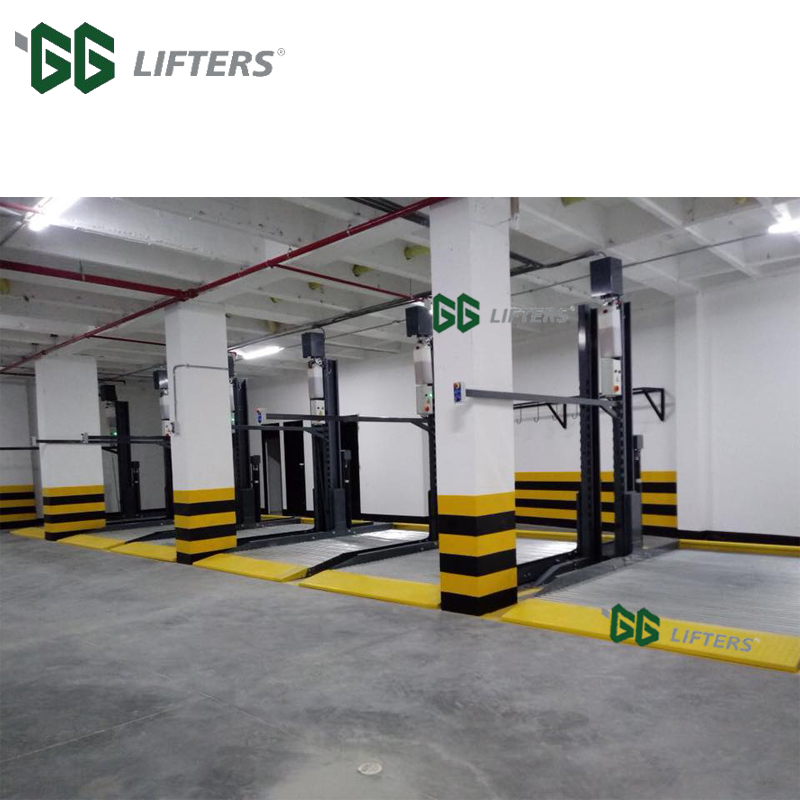

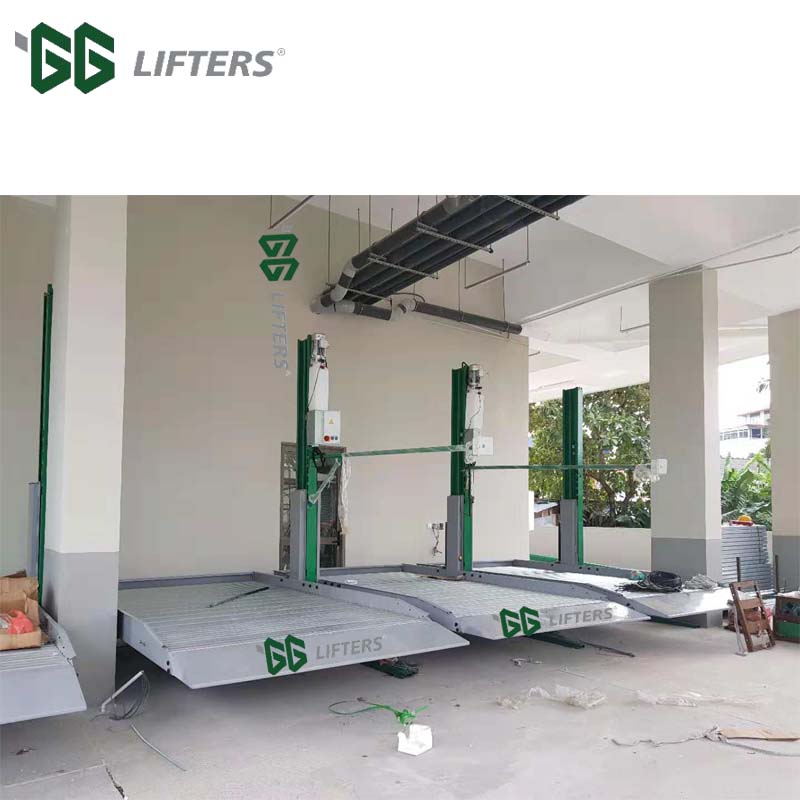

Space saving, possibility to share posts for multiple connected units.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


VIDEO

PARAMETERS

Model No. PTP23/2100 PTP27/2100 PTP32/2100
Lifting Capacity 2300 Kg 2700 Kg 3200 Kg
Lifting Height 2100 mm 2100 mm 2100 mm
Post Height 3000 mm 3500 mm 3500 mm
Drive Through 2100 mm 2100 mm 2100 mm
Weight 950 Kg 1050 Kg 1150 Kg
Package Dimension 3800*800*800 mm 3850*1000*970 mm 3850*1000*970 mm

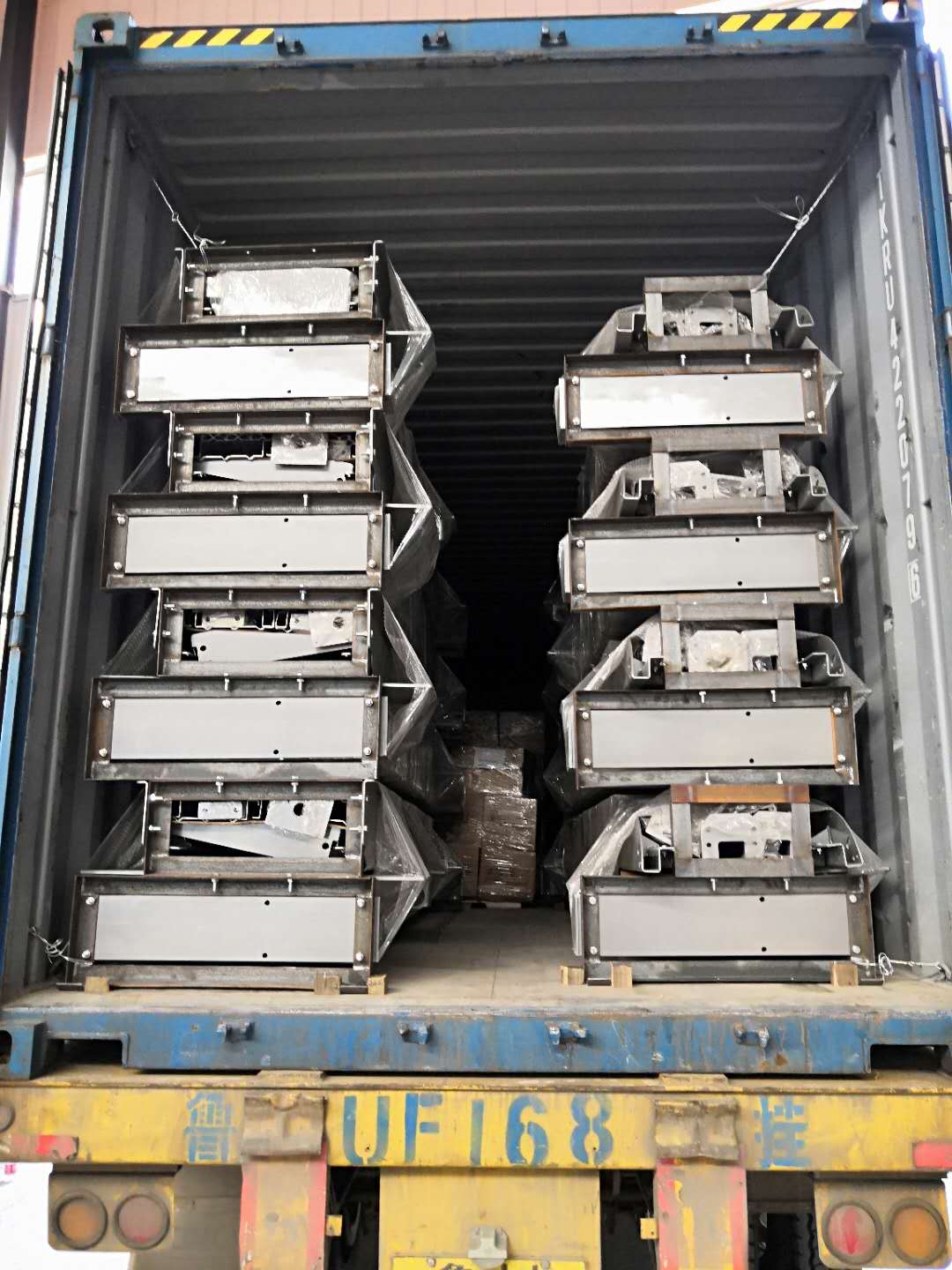

Packing 8 or 9 pcs / 20’ GP; 18 to 20 pcs / 40’ GP
Lock Release Electric Unlock
Rise/Drop Time 70 S / 60 S
Power Supply/Motor Capacity 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
Color Chart

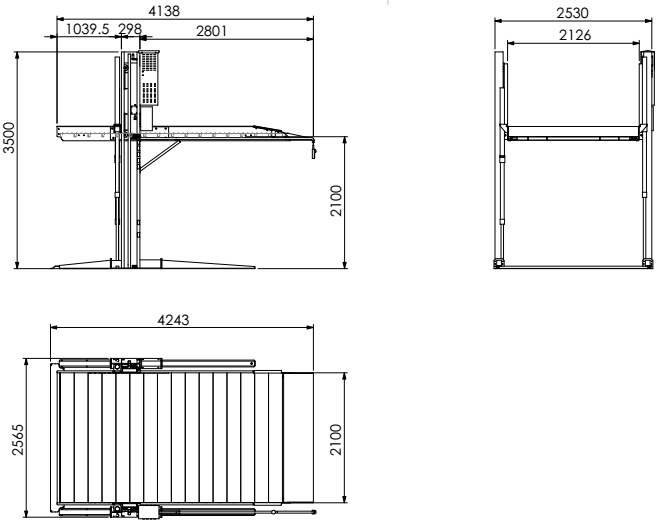

DRAWING
