STACKER PARKING LIFT

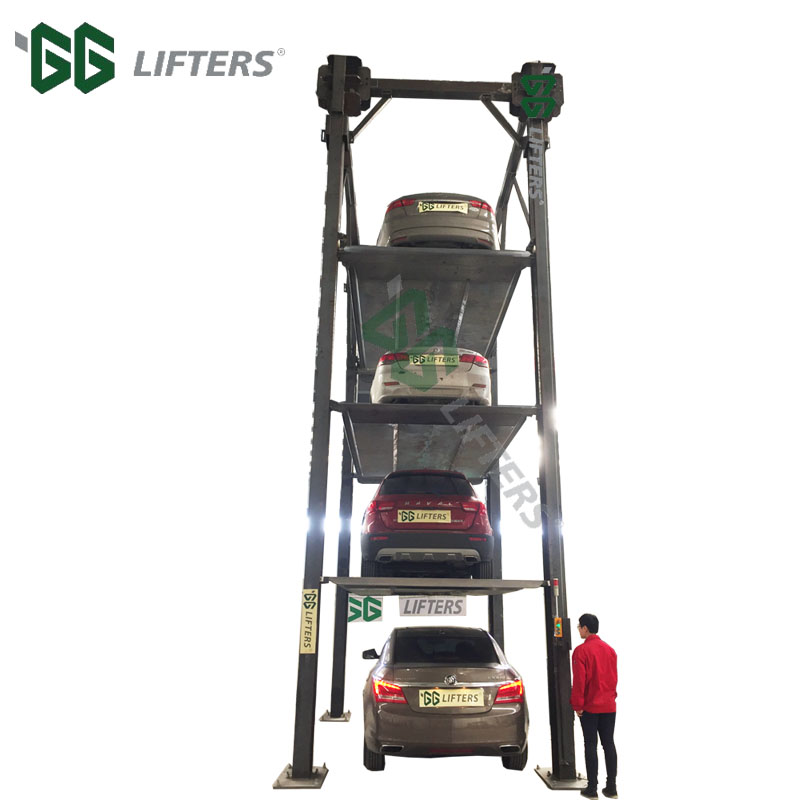

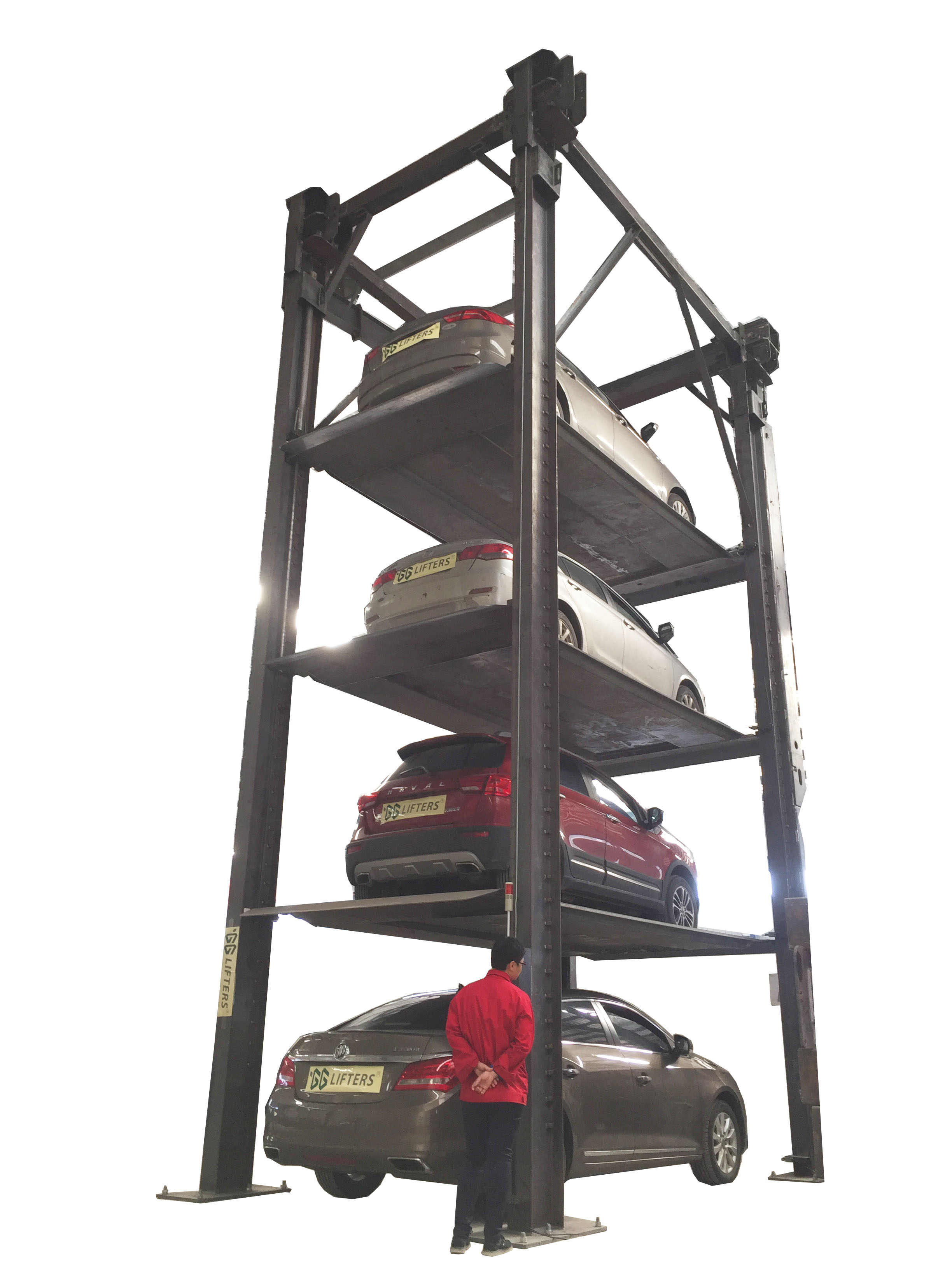

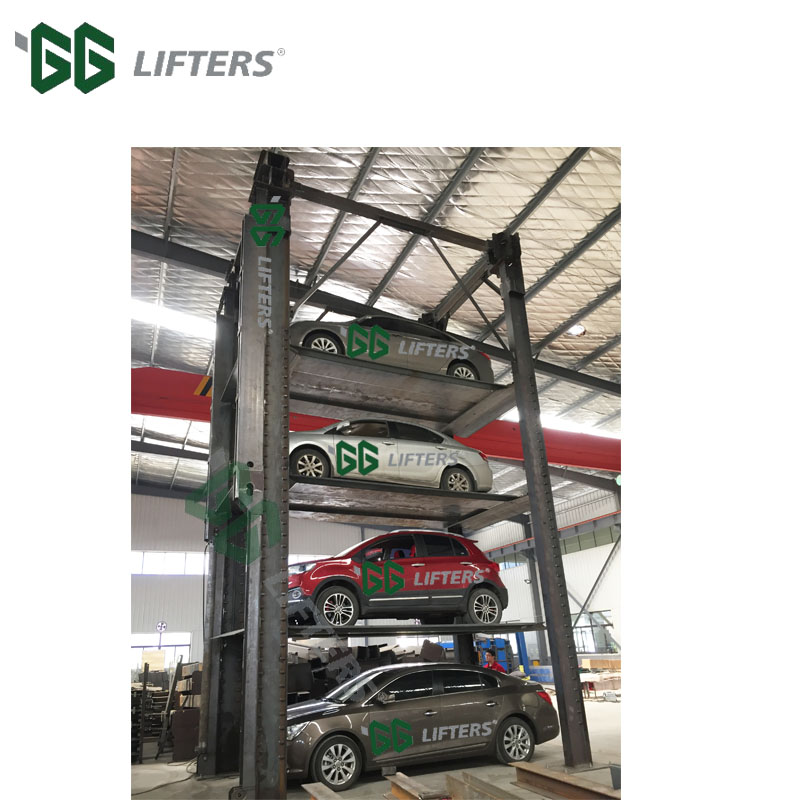

Four post multi-level parking system with hydraulic driven and steel rope lifting system.

Automatic lock at every platform level to ensure safety.

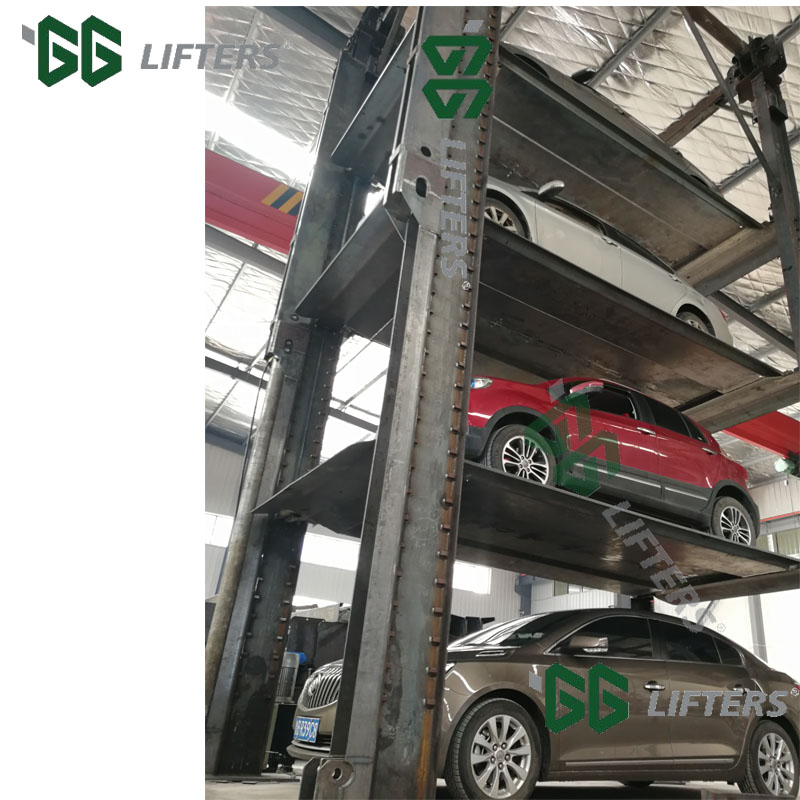

Mechanical locks at all heights in all posts to prevent falling & collision.

Steel rope break protection mechanism to increase safety.

Parachute valve at hydraulic cylinder to avoid oil pressure drop.

Simultaneously manually unlock for all platforms at all levels.

Space saving, possibility to share posts for multiple connected units.

Suitable for car dealers & car service centers.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Possibility to have intumescent fire retardant coat for indoor application.


VIDEO

PARAMETERS

Model No. PFS25/G+2 PFS25/G+3 PFS30/G+3
Lifting Capacity 2500 Kg 2500 Kg 3000 Kg
Lifting Height 2030 mm 2030 mm 2030 mm
Overall Width 3400 mm 3400 mm 3550 mm
Overall Height 6690 mm 8720 mm 9169 mm
Drive Through 2100 mm 2100 mm 2200 mm
Device Mode Hydraulic cylinder driven + wire rope
Operation Mode Automatic / Push Button / Turn Keys
Rise/Drop Time 50 S / 40 S   60 S / 50 S   60 S / 50 S
Lifting Speed 4 M / Min 4 M / Min 4 M / Min
Warranty 2 years against manufacturing defects
Power Supply
Motor Capacity
220 V / 380 V, 50 Hz / 60 Hz,
1 Ph / 3 Ph, 5.5 Kw
220 V / 380 V, 50 Hz / 60 Hz,
1 Ph / 3 Ph, 7.5 Kw
Color Chart

DRAWING
