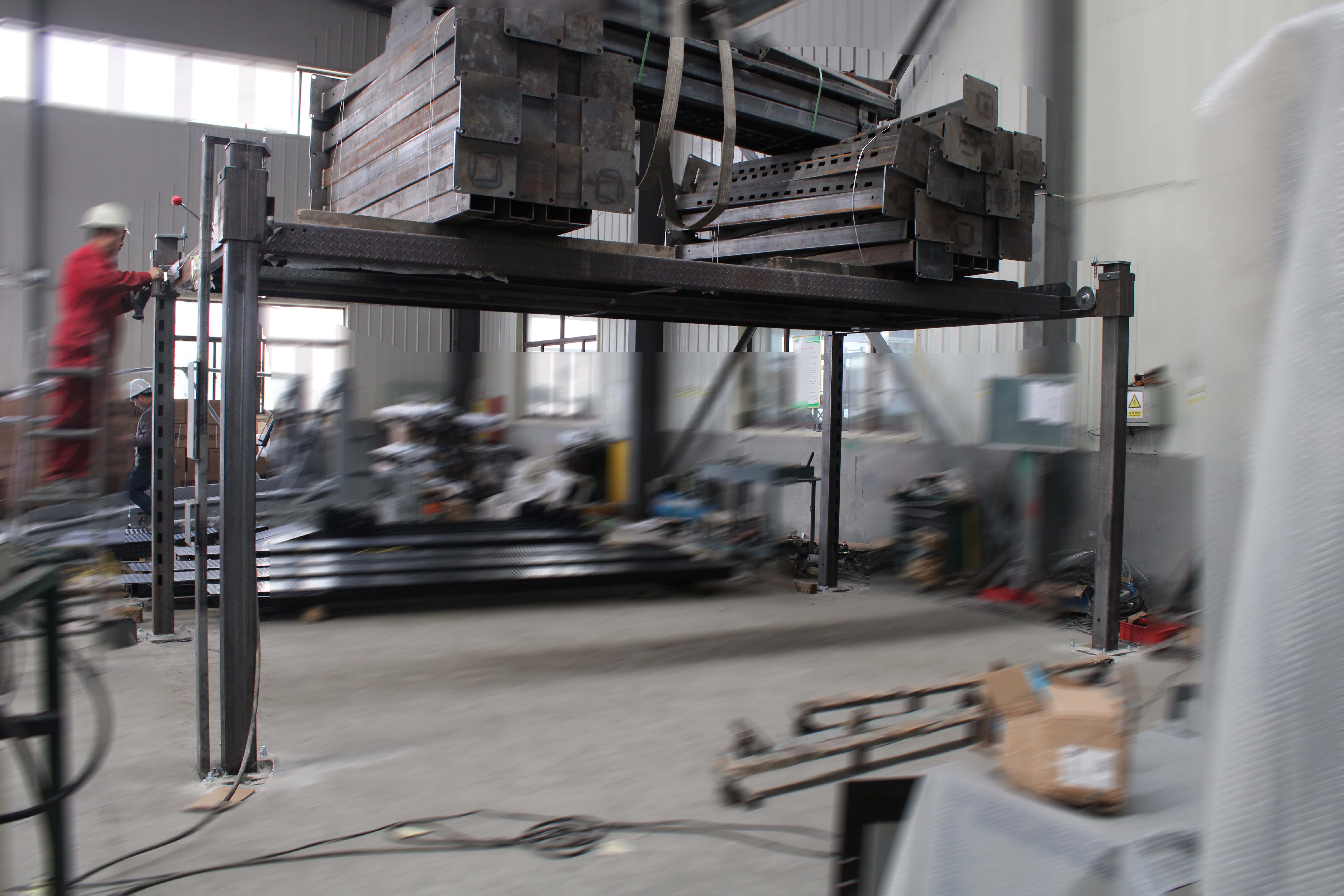

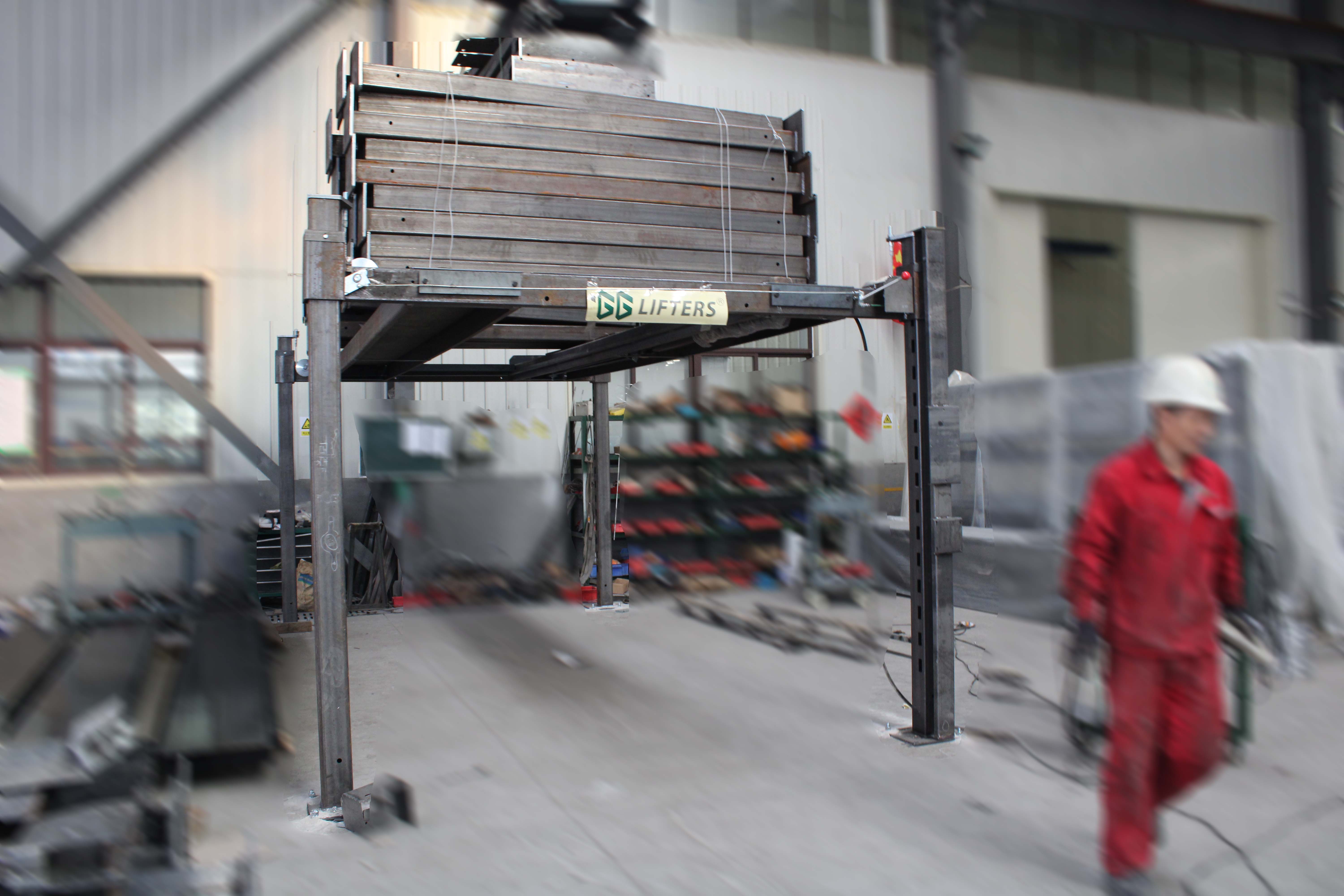

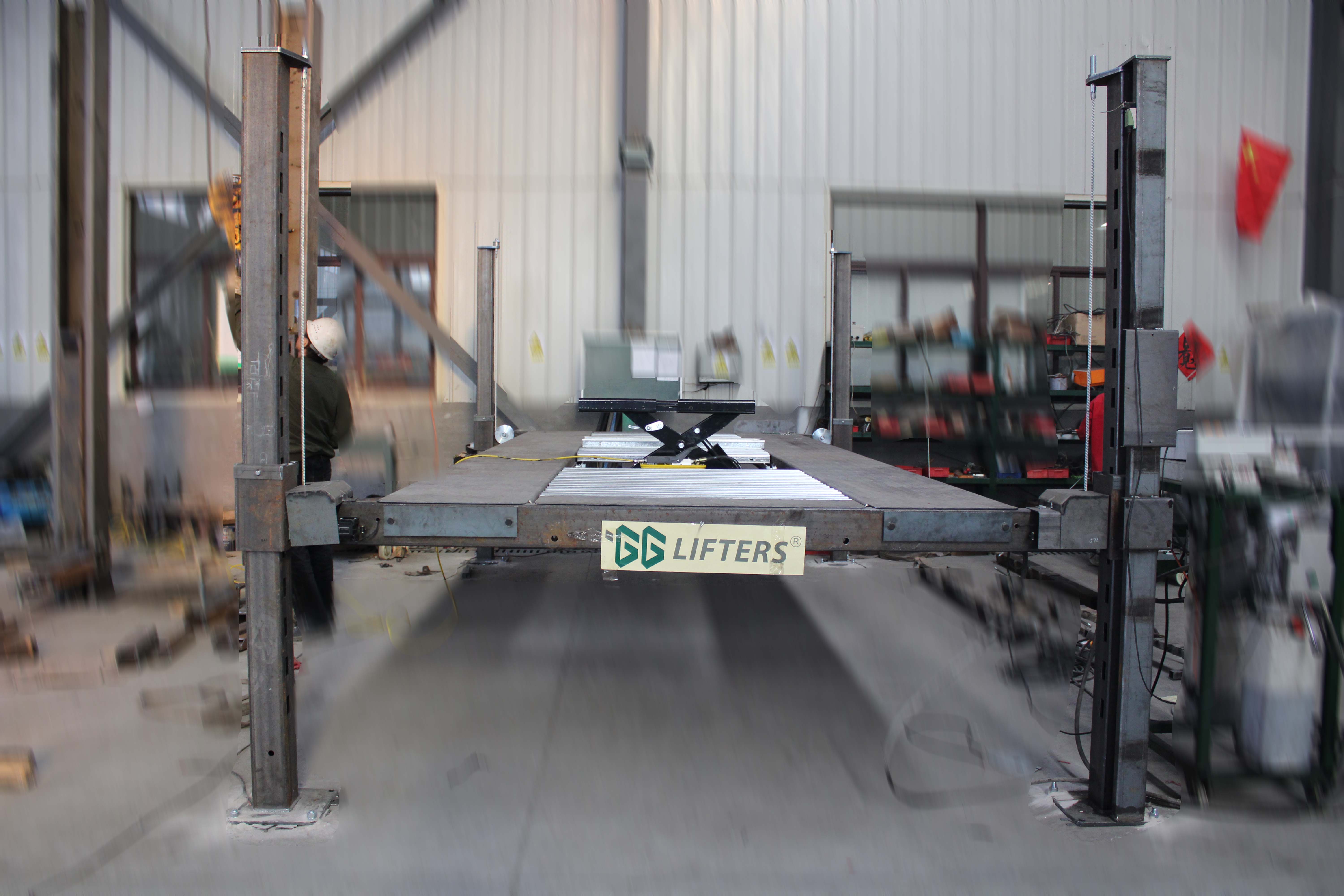

HEAVY DUTY 4 POST CAR PARKING LIFT (TUBE COLUMN TYPE)

1.  With igh lifting capacity up to 5 Tons (11000 lbs).
2. Super wide platform to be 2120mm (72’4’’) and drive through clearance, and lengh of runway to be 5200mm (170’7’’), A full 2100mm (82") of clearance under the platform while resting on the top lock.
3. 12 * 12 cm (5" × 5") posts with 6" × 6" steel wire rope pulley, thicker crossbeam, 510 mm (20’’) wide runway increased cable to handle heavy duty.
4.  Tracks between runways and support plate in runways for extra strength
5. Reliable mechanical locking system.
6. Manual lock release or electric lock release.
7. Operation buttons with electric operation control panel.
8. Limite switch on post to avoid car hitting ceiling.

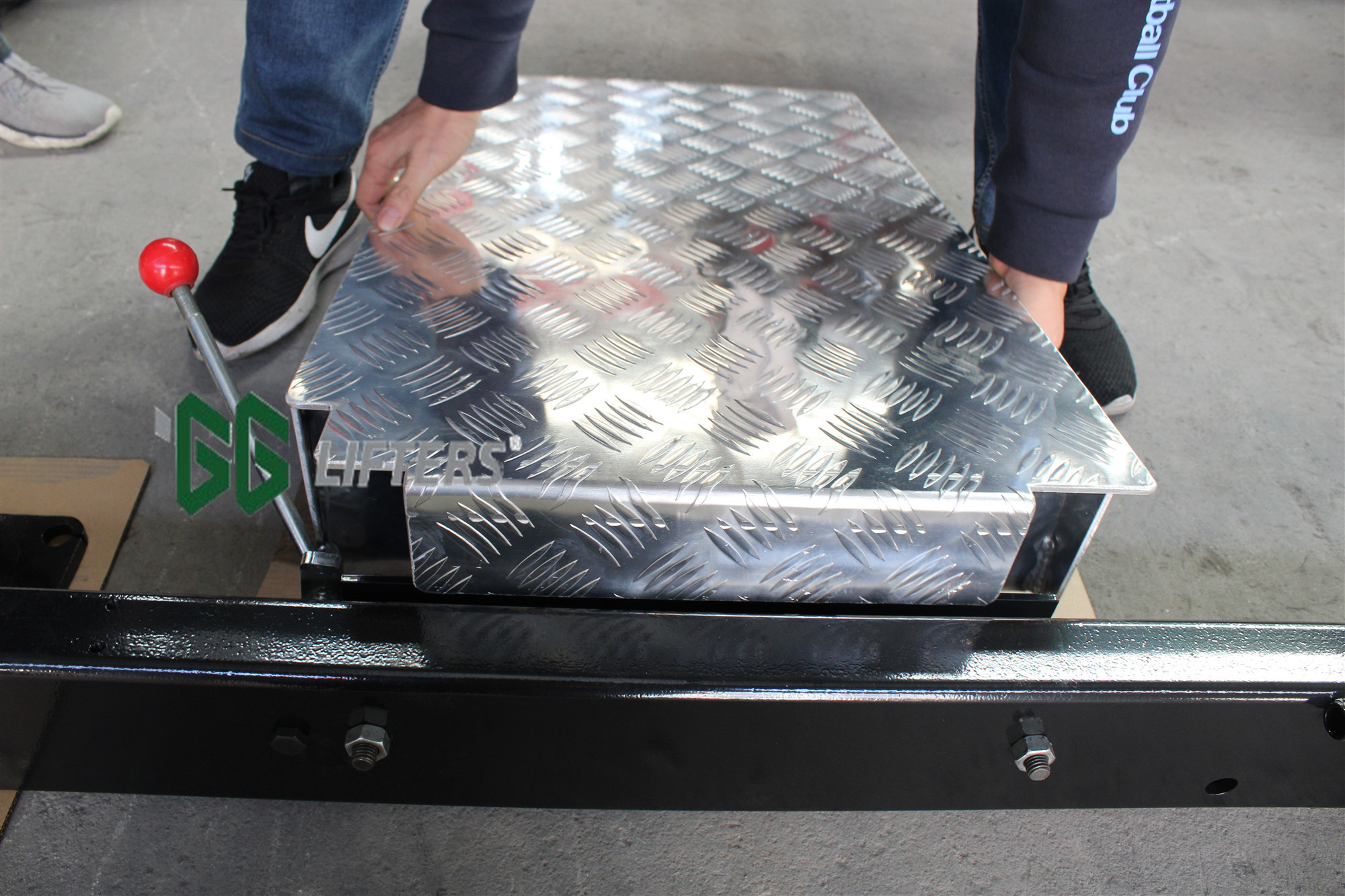

9.Wave plates or diamond plates in the middle of runway.

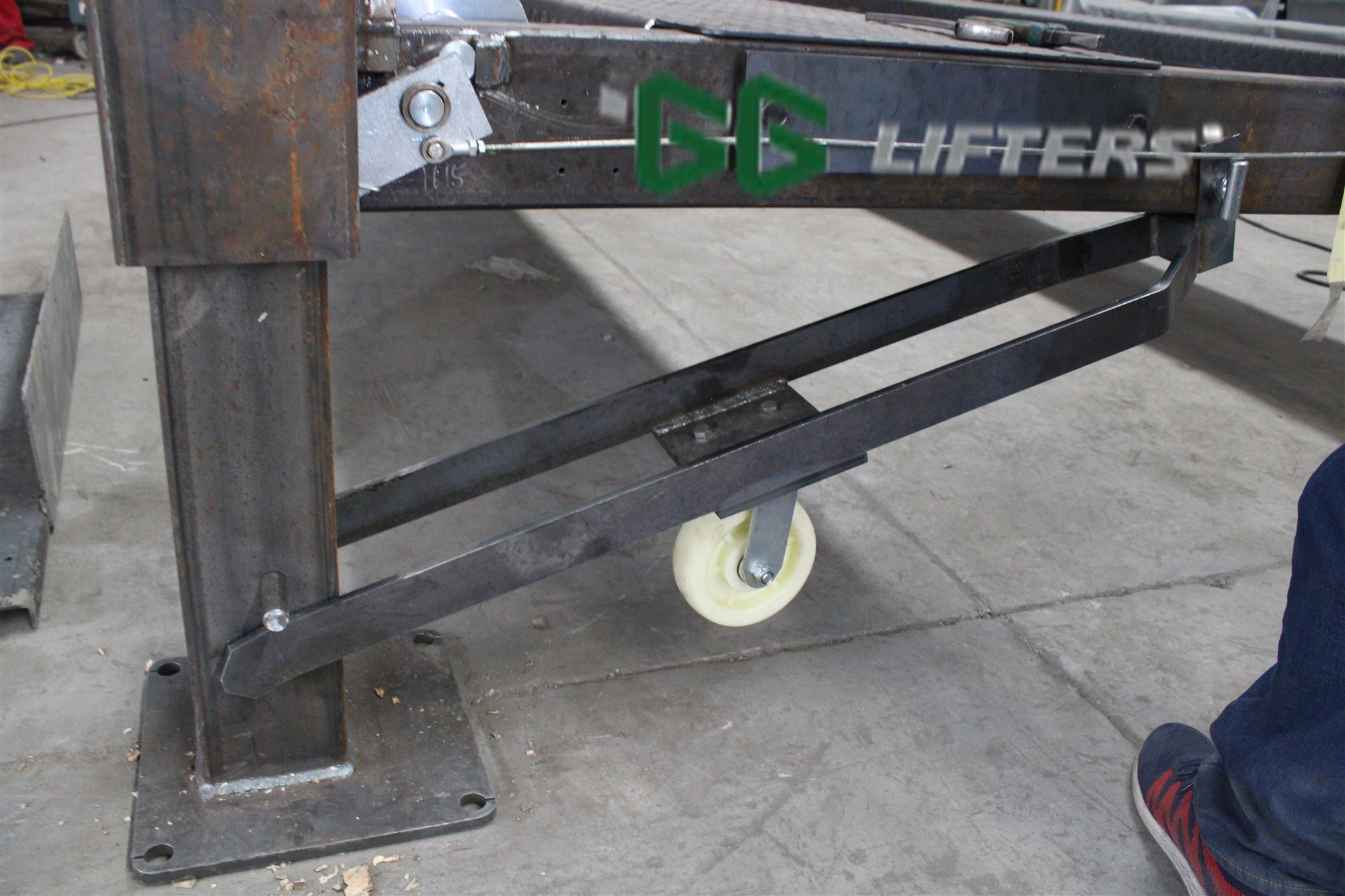

10. Optional aluminum ramp, rolling jack and caster kit.
11.Suit to dually trucks, and other wider trucks such as the Ford Raptor.

PARAMETER

Model NO. PFP40/2100 PFP50/1200
Lifting Capacity 4000 Kg 5000Kg
Lifting Height 2100 mm 2100mm
Drive through 2120 mm 2120mm

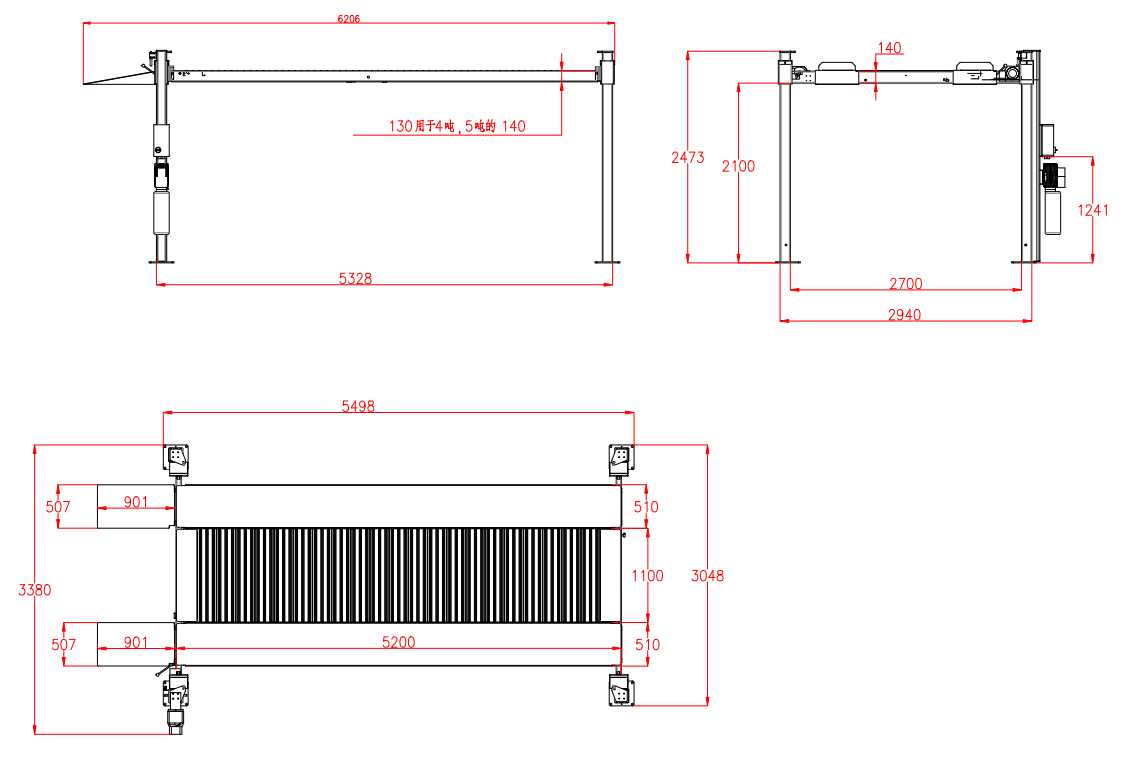

External Dimensions 6206*3380*2473 mm 6206*3380*2473mm
Operation Type Push buttons on operation box Push buttons on operation box
Manual Lock Release Manual lock release or electric lock release Manual lock release or Electric lock release
Middle in the runway  Galvanized wave plates / Dimond plates Galvanized wave plates / Dimond plates
Rolling jack 2 ea hydraulic rolling jack, manual release with pneumatic pump 2 ea hydraulic rolling jack, manual relaease with pneumatic pump
Packaging dimensions 5400*550*850 mm 5400*550*850mm
