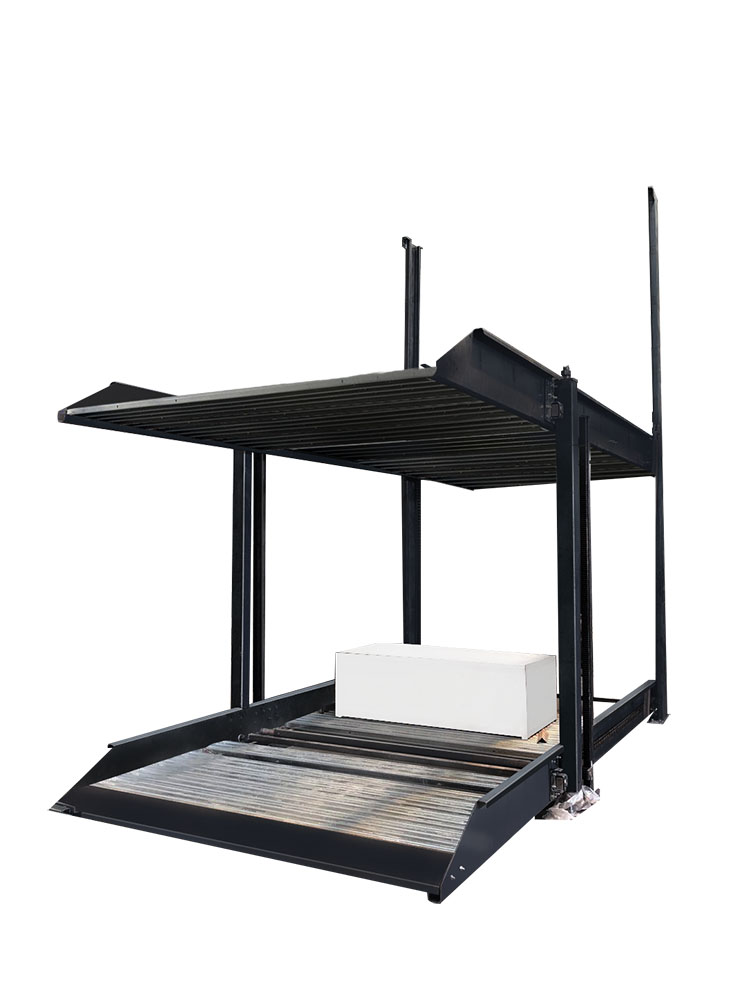

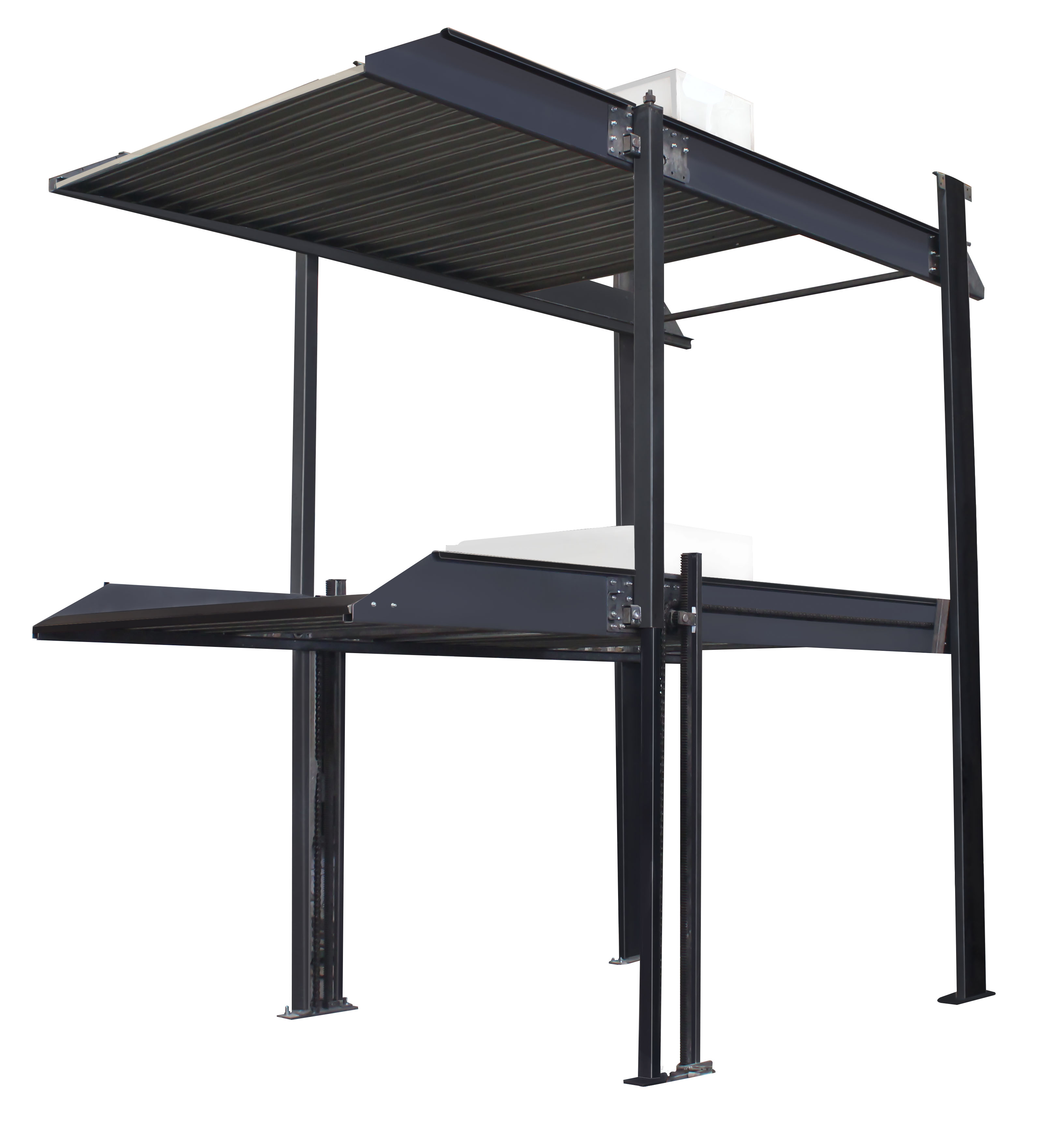

HYDRAULIC 2 POST PIT CAR PARKING SYSTEM (UTS)

HYDRAULIC 2 POST PIT CAR PARKING SYSTEM (UTS)

1.Hydraulic driven and chain balance system.
2.Fully utilization of underground space.
3.Directly park or pick up the car at any level independently.
4.Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance.
5.Multiple mechanical locks on posts to ensure safety.
6.Flexible designed according to customer requirements, suitable for residential & commercial use.
7.Electric sensors to confirm no persons or objects before rising up/down the platforms.
8.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


PARAMETERS

Model NO UTS20/2 UTS25/2
Lifting Capacity 2000 Kg 2500 Kg
Total Height 4290 mm 4290 mm
Vehicle Size 5000*1850*1750 mm 4850*1950*2000 mm
Quantity in container 3 in 20 GP; 6 in 40 GP
Drive Mode Hydraulic Driven + Roller Chain
Parking Capacity 2
Safety Device Anti-falling device
Operation Mode Automatic/ Manual
Speed 2.6 M / Min
Power Supply/Motor Capacity  220 V / 380 V, 1 Ph / 3 Ph, 50 Hz / 60 Hz, 2.2 Kw
Color Chart

DRAWING
