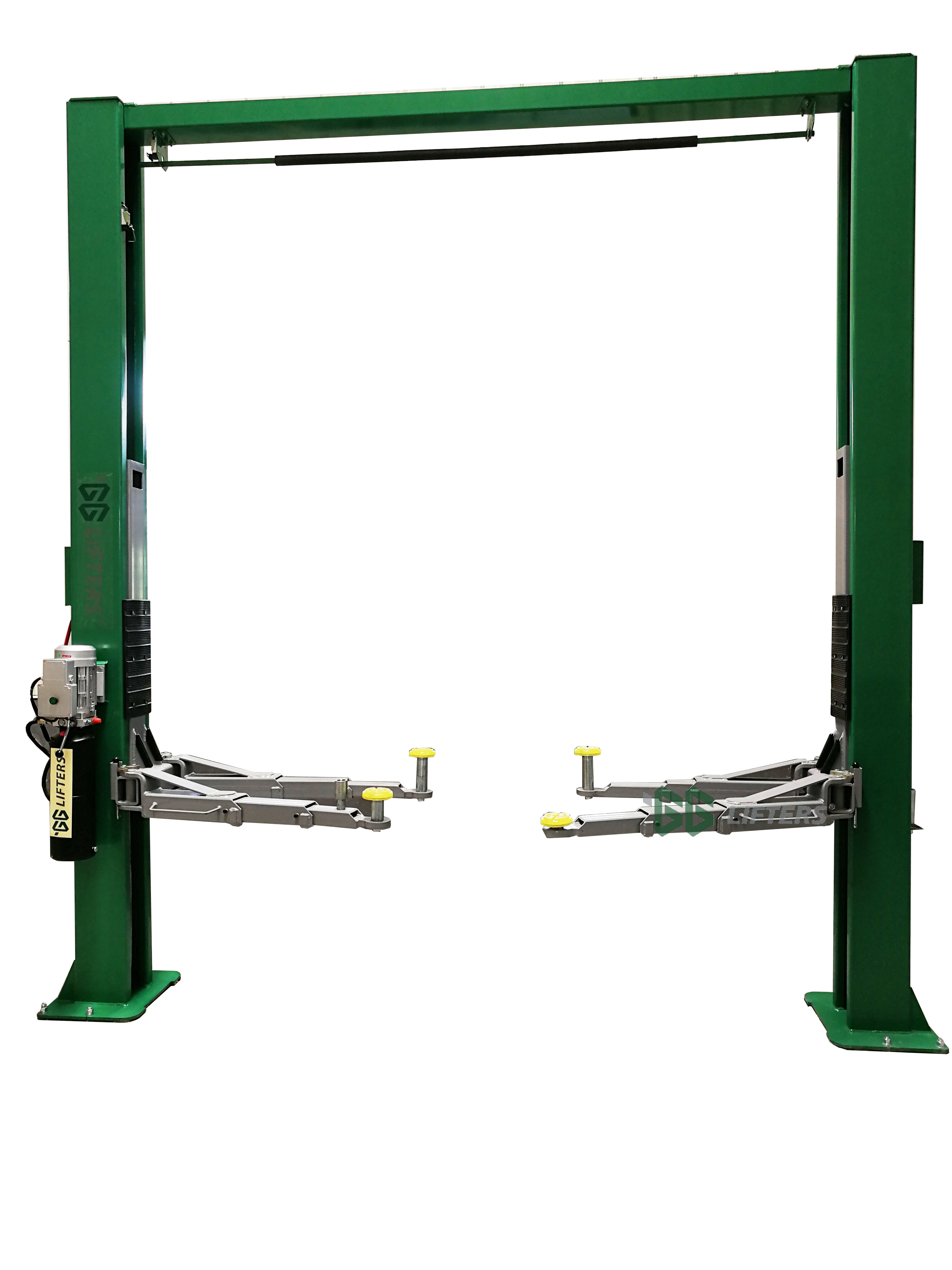

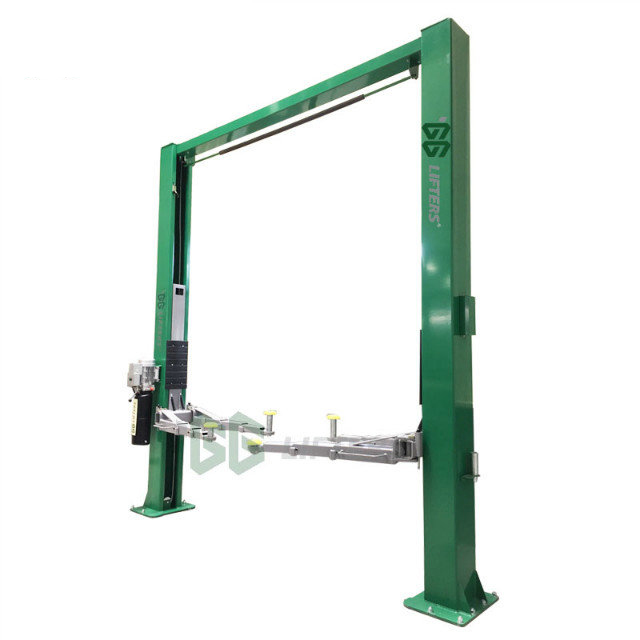

CLEAR FLOOR TWO POST CAR LIFT
CE CERTIFIED.
Dual-cylinder hydraulic driven and wire rope balance system.
Lifting carriages connected to cylinders, sliding on the posts.
High polymer polyethylene slide blocks, wear-resistance.
Extra width between two posts without floor plate.
Automatic safety locks, manual lock release system.

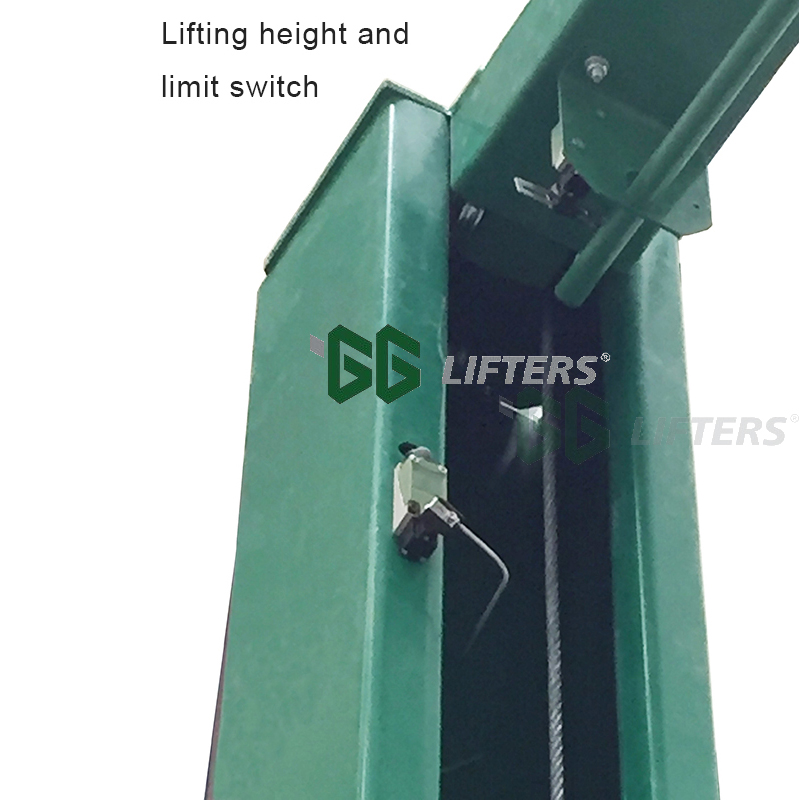

Limiting displacement bar with limit switch to stop lifting in the highest position.
Adjustable lifting height to suit any type of cars.

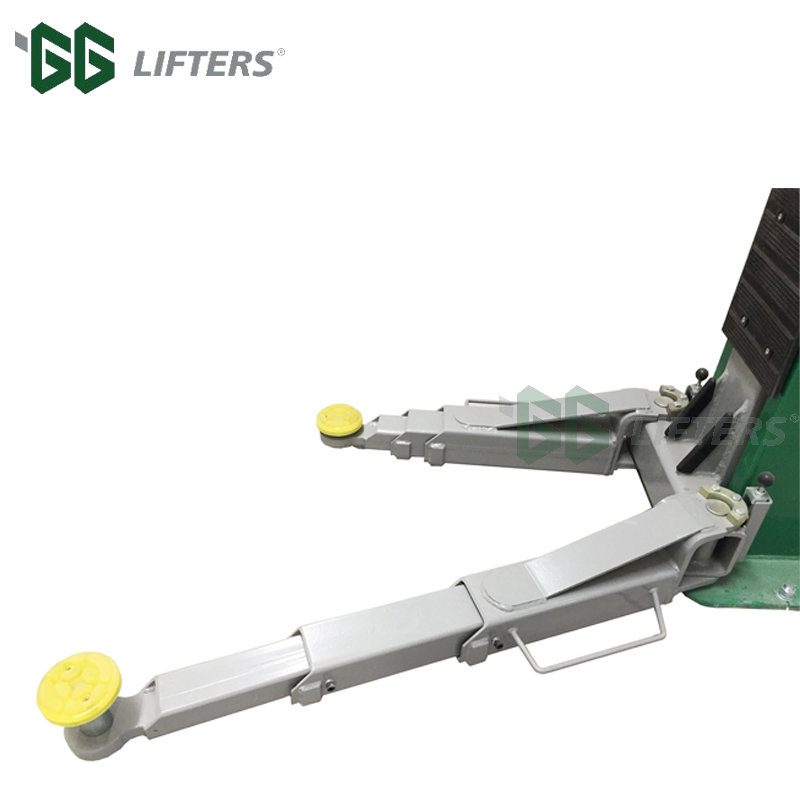

3 stages swing arms to fit long cars.
Optional electric control panel IP 65 with high quality components (CHINT).

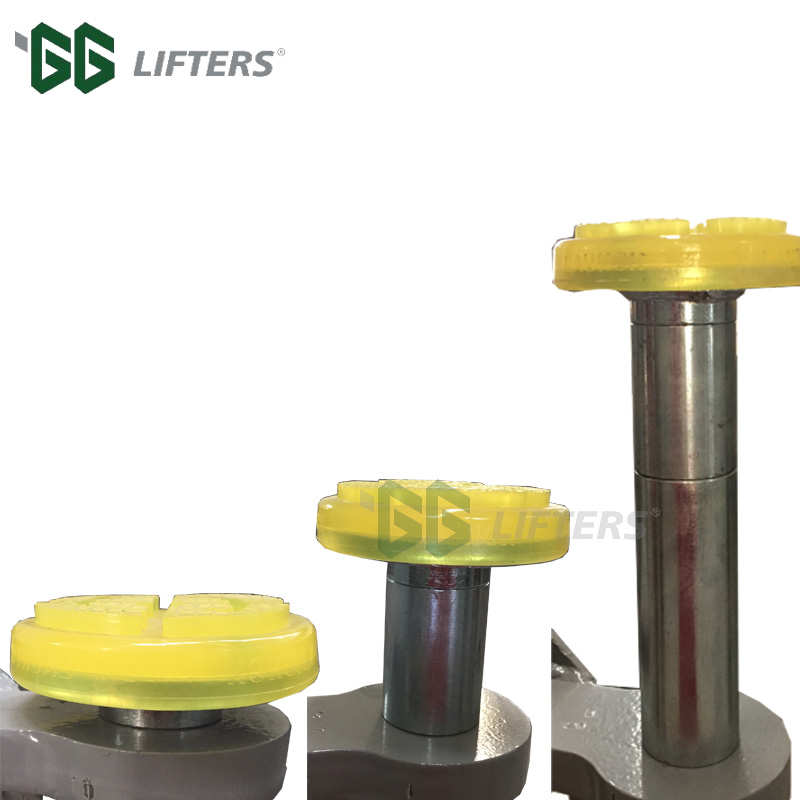

Polyurethane durable screw/ fixed pads and free high adapters.
Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
VIDEO
PARAMETERS
| Model No. | LTC40/1850-2J | LTC45/1960-3J | LTC50/1960-3J |
| Lifting Capacity | 4000 Kg | 4500 Kg | 5000 Kg |
| Max Lifting Height | 1850 mm | 1960 mm | 1960 mm |
| Total Height | 3670 mm | 3860 mm | 3860 mm |
| Gross weight (kg) | 720 kg | 760k kg | 800 kg |
| Arm Type | 2 Stages | 3 Stages | 3 Stages |

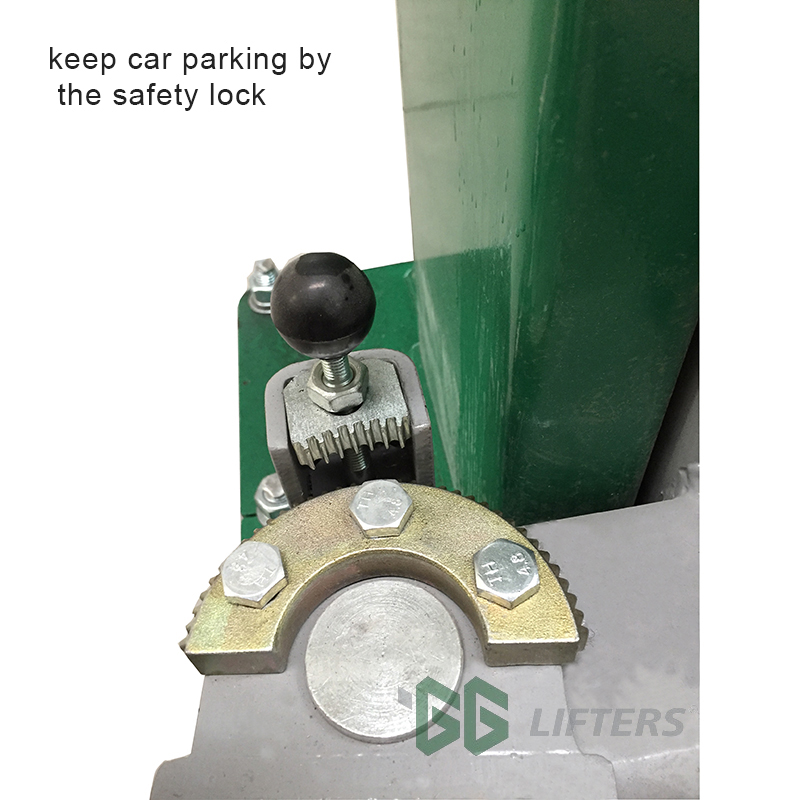

| Arm lock(semi-circle) | Arm lock(semi-circle) | Arm lock(semi-circle) | |

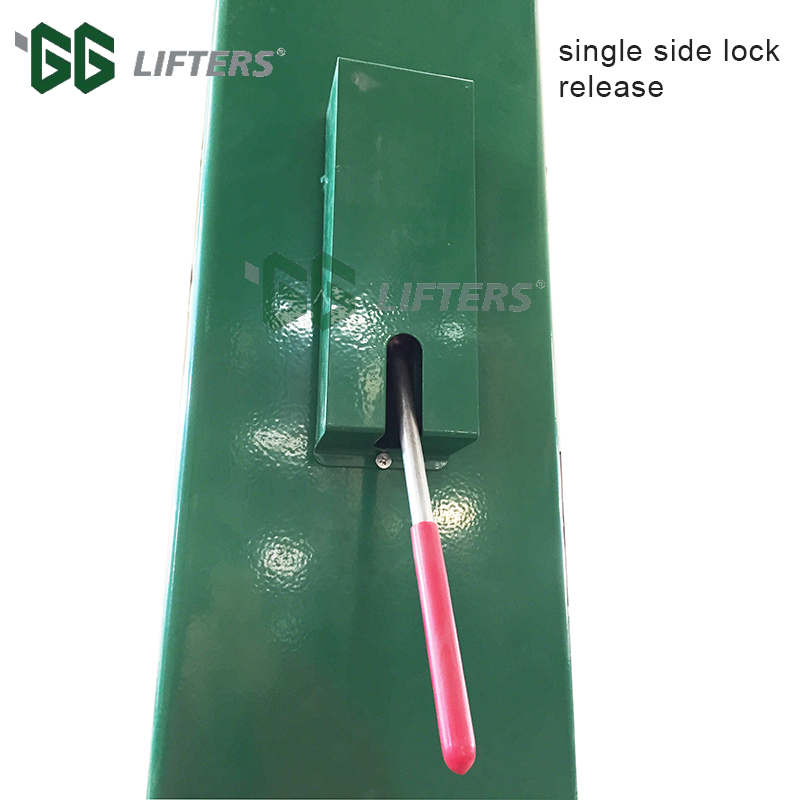

| Lock Release | Double sides lock release | Single side lock release | Single side lock release |
| Another Lock Release | Electric unlock is also available | ||
| Limit Switch | 1 | 2 | 2 |
| Documents With Shipping | INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET | ||
| Warranty | 2 years against manufacturing defects as per GG Lifters limited warranty statement. | ||
| Rise/Drop Time | 50 S / 40 S | ||
|
Power Supply Motor Capacity | 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw | 220V / 380V, 50Hz / 60 Hz, 1Ph / 3Ph, 3 Kw | |
