SCISSOR PARKING LIFT

Foldable posts design to occupy small space.

Single stage dual-cylinder lifting system.

Balance valve to ensure automatic synchronization of both posts.

Automatic lock & electric Lock release.

Platform with optional wave or diamond plates.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


PARAMETERS

Model NO PSL25/2000
Lifting Capacity 2000 Kg
Overall Height 2077 mm
Overall Width 2450 mm
Drive Through 2126 mm
Lifting Height 2000 mm
Safety Device safety locks
Operation Mode Automatic
Warranty 2 years against manufacturing defects
Installation Space 4500*2750*2200 mm
Rise/Drop Time 50 S / 40 S
Power Supply
Motor Capacity
220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
OR according to customers' request
Color Chart

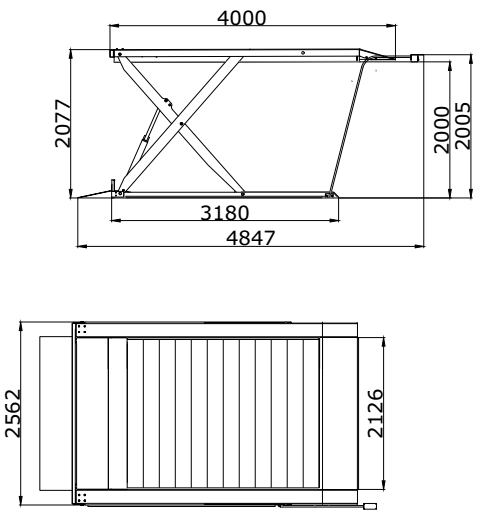

DRAWING
