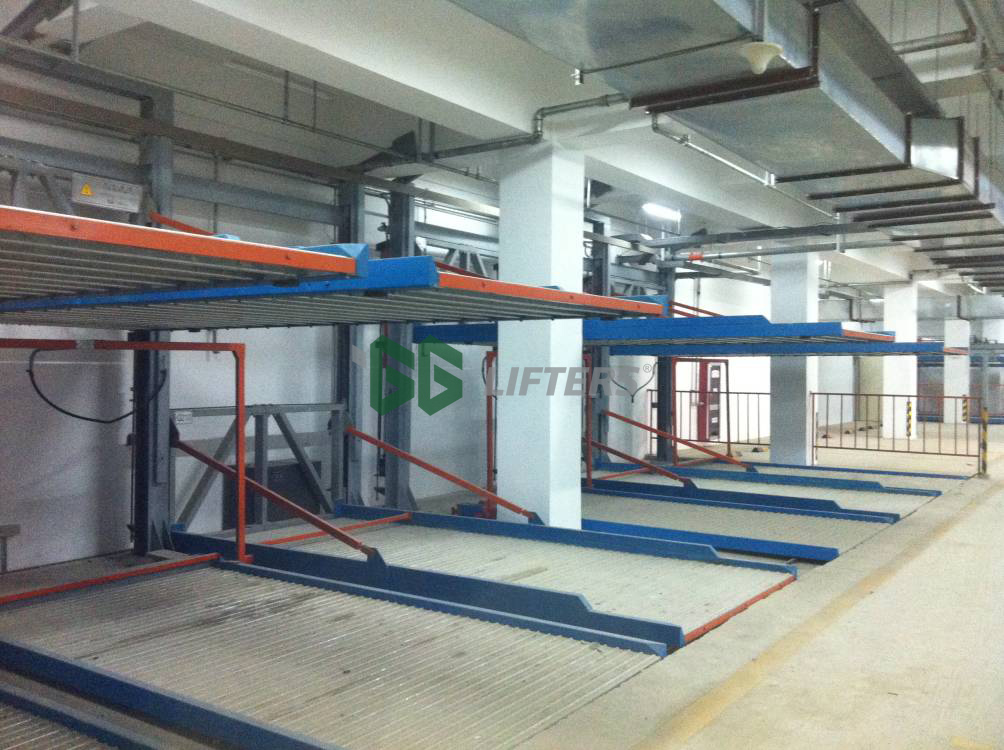

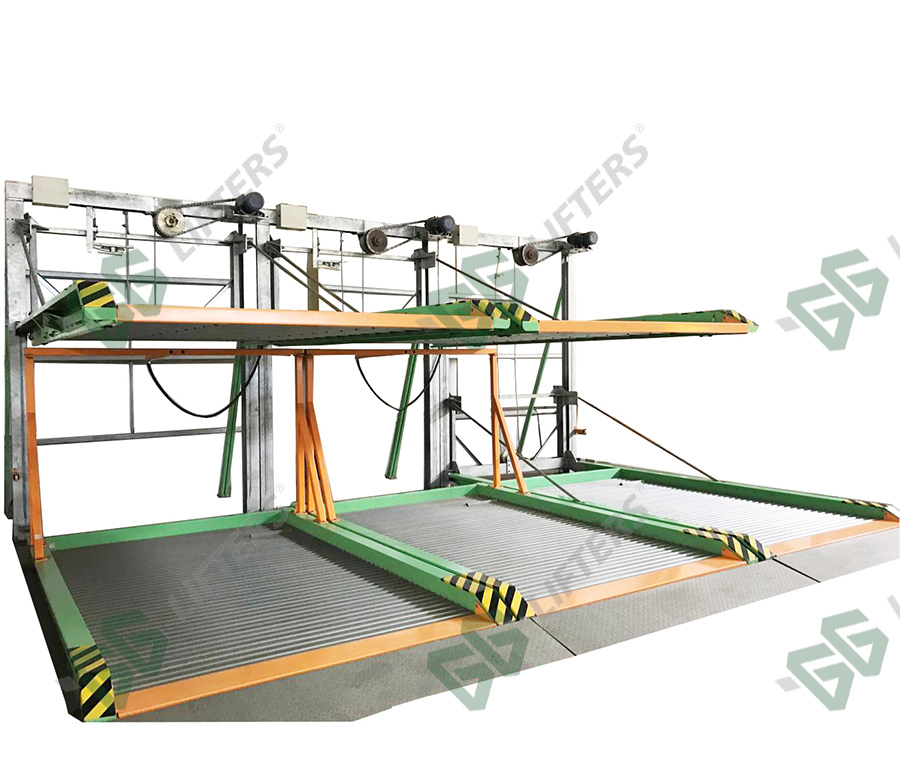

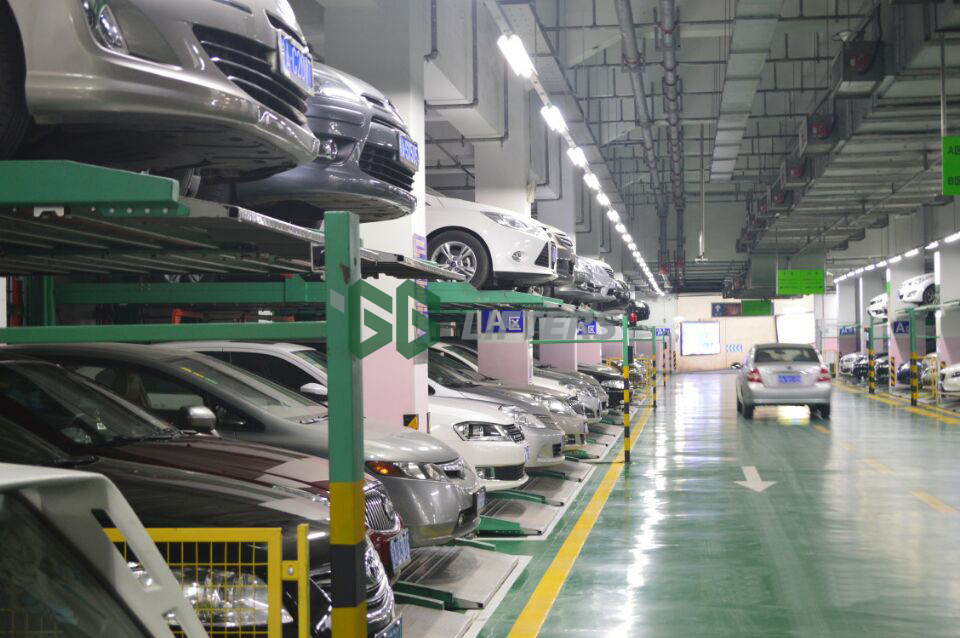

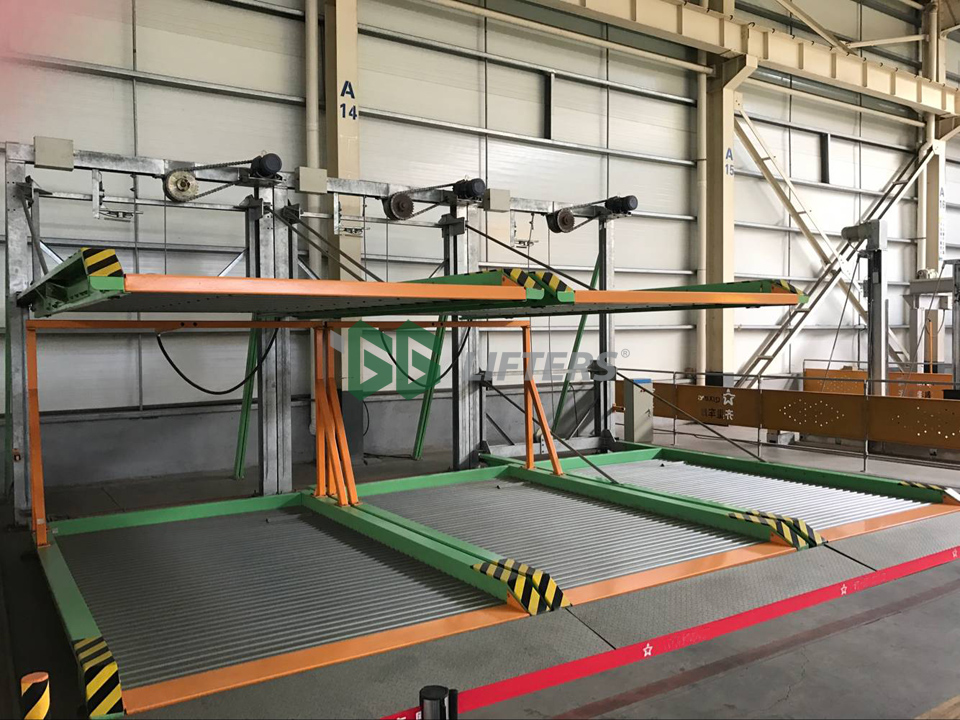

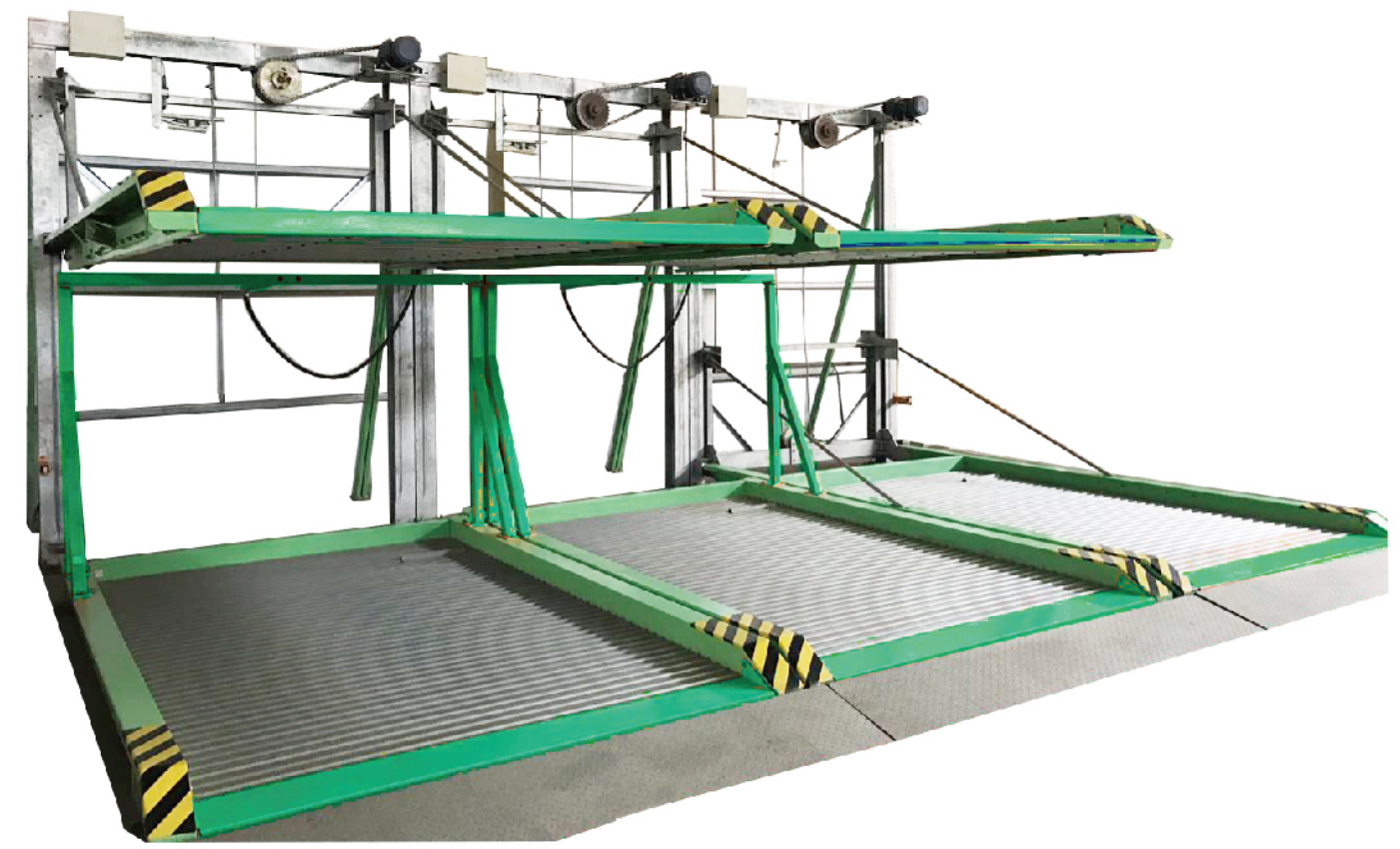

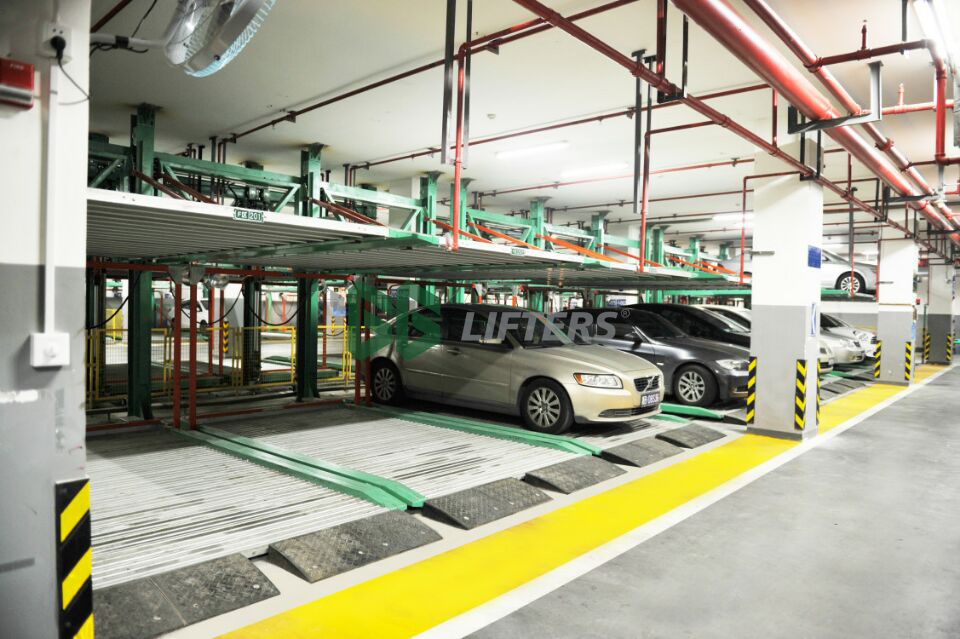

PUZZLE PARKING SYSTEM
(BACK CANTILEVER)

Motor driven and steel rope lifting system.

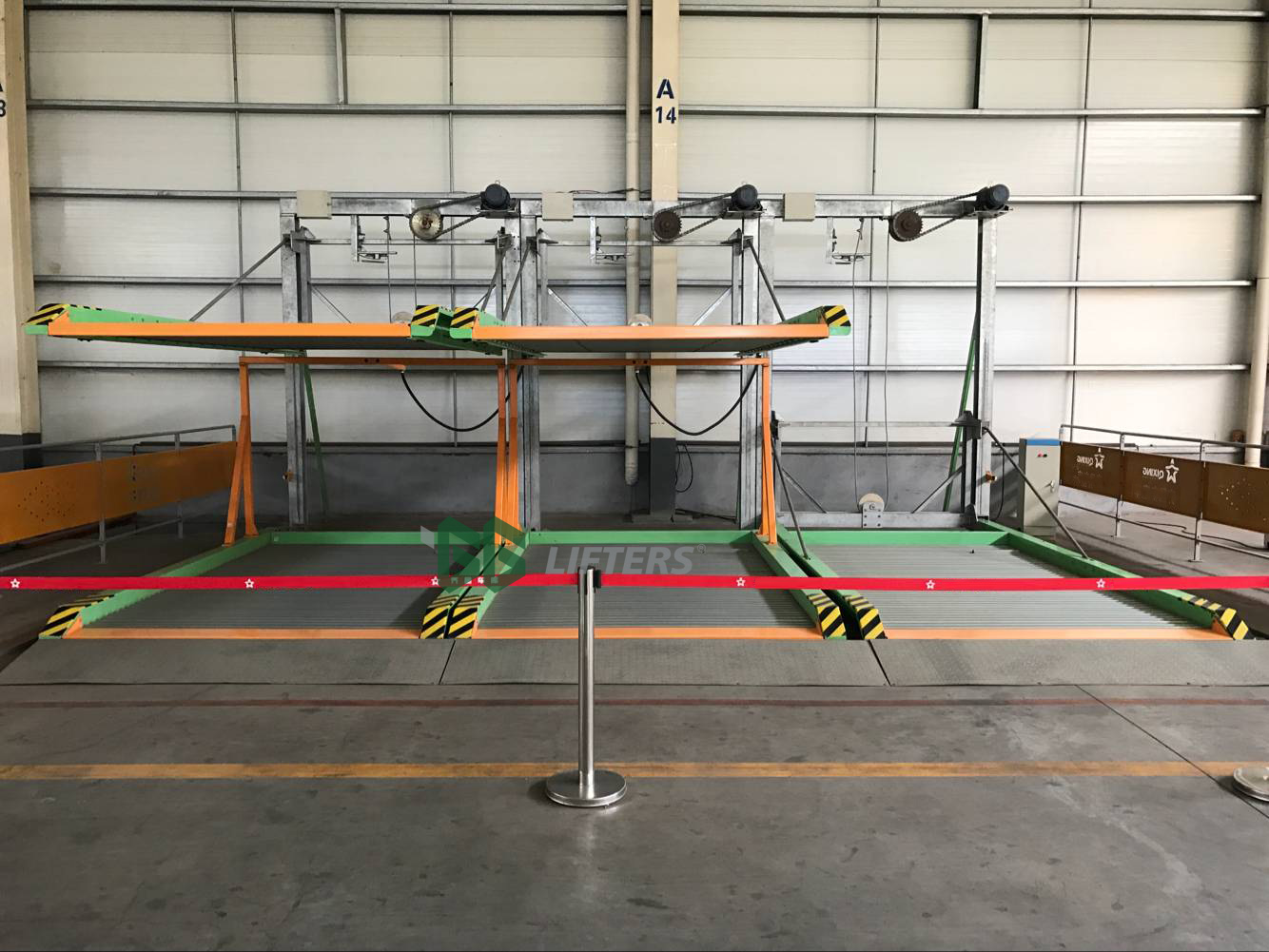

Simple structure, high safety, no front posts to facilitate the entry of the car on platform.

Dependent & space saving with 2 vertical levels.

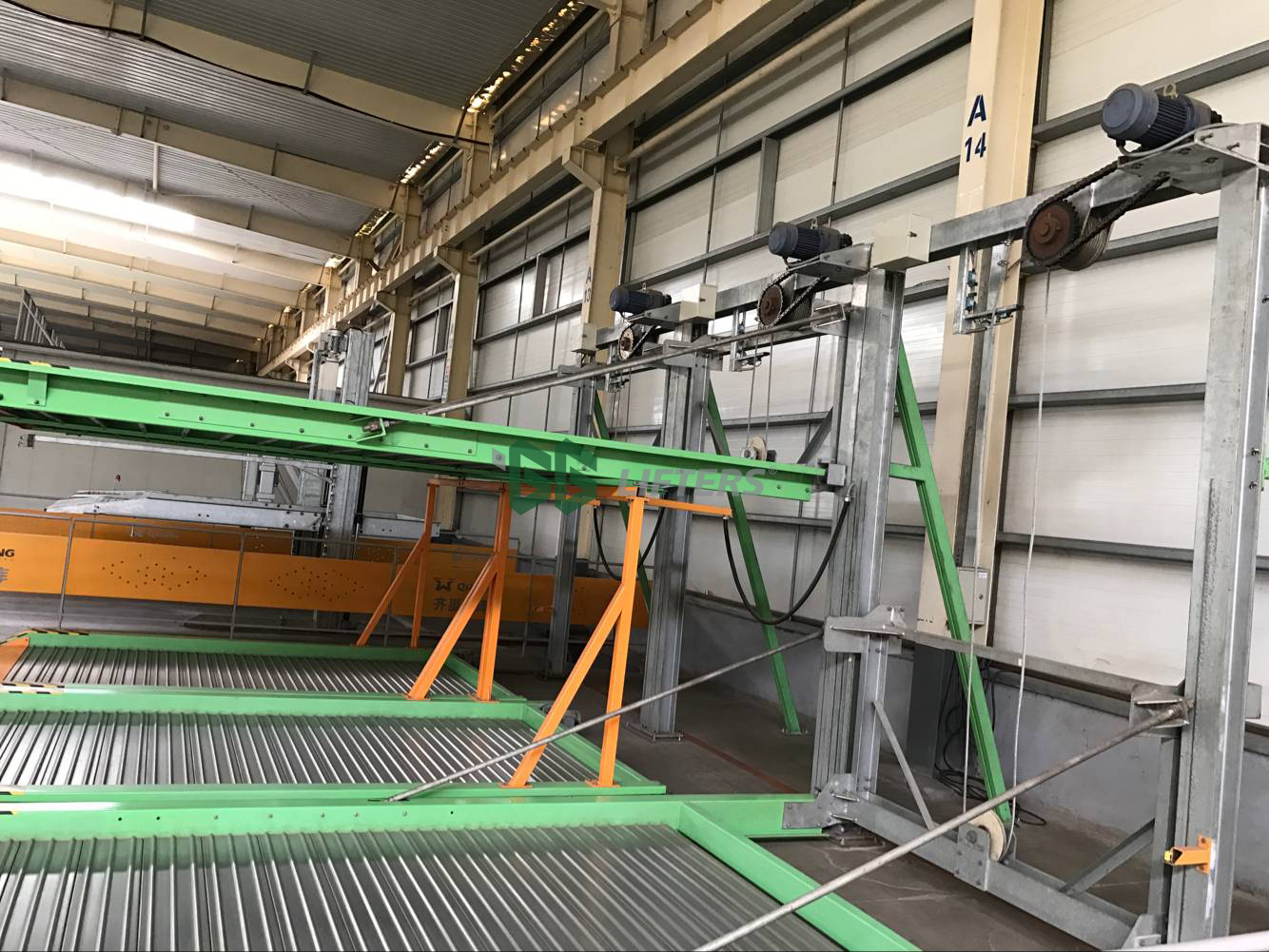

Back cross bars connected to the back posts to carry the load on platforms.

Working principle: upper platforms can only move vertically while lower platforms can only slide horizontally.

PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.

Safety hook device to prevent falling, collision and overload.

Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident.

Emergency stop push button mounted on operation panel as well.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


PARAMETERS

Model NO. PHX23/2-3D
Lifting Motor Power/Speed 2.2 Kw 8 M / Min (2 levels)
Sliding Motor Power/Speed 0.2 Kw 4 M / Min
Drive Mode Motor Driven + Roller Chain
Loading Capacity 2350 Kg
Surface Treatment Sray / Hot Dipped Galvanized
Vehicle Size/Weight standard car : BENZ- E 700L
5065*1860*1467 mm  /  1800 Kg
Max Parking Size 5200*1900*1550 mm
Safety Device Safety lock device by electromagnetic and anti-falling protection device.
Color Chart

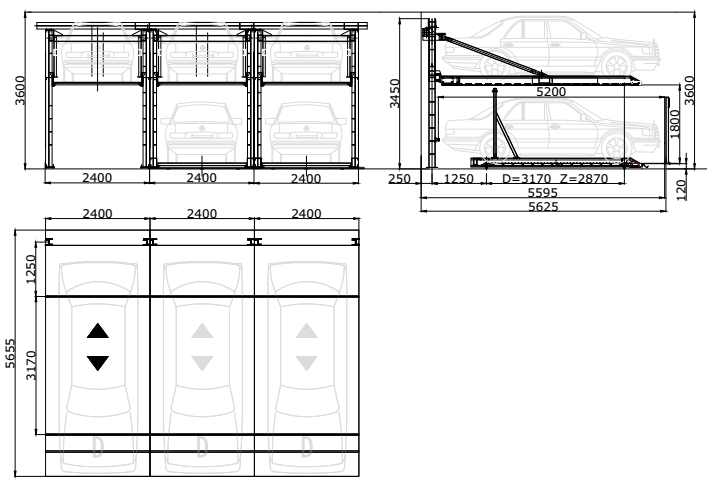

DRAWING
