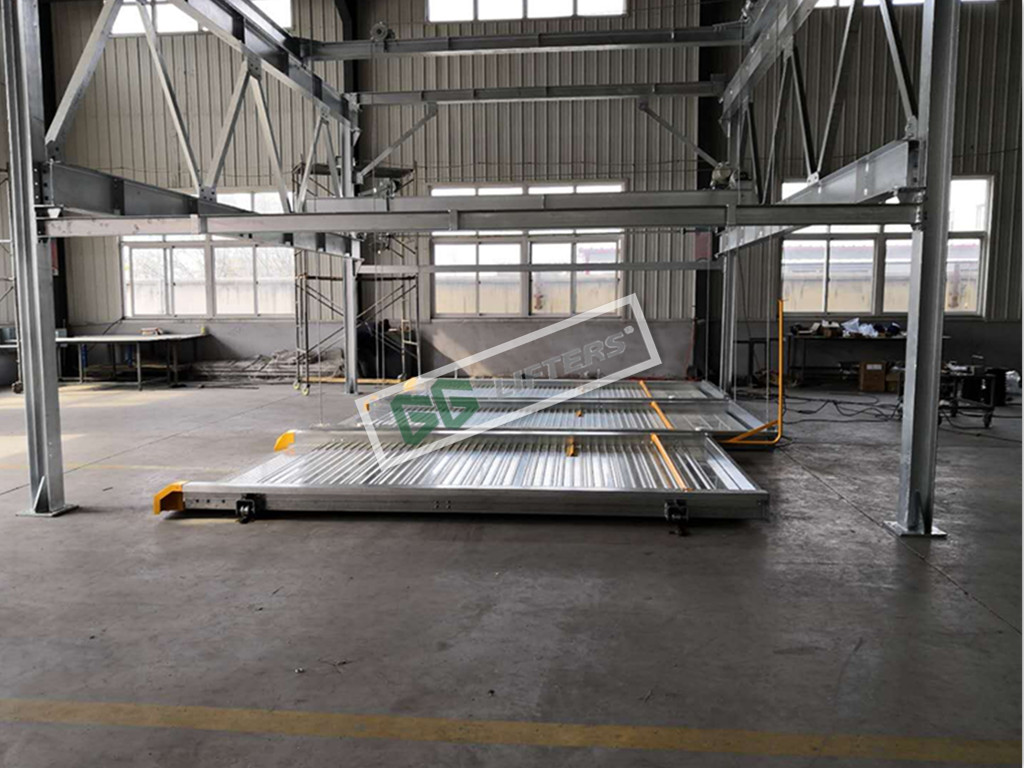

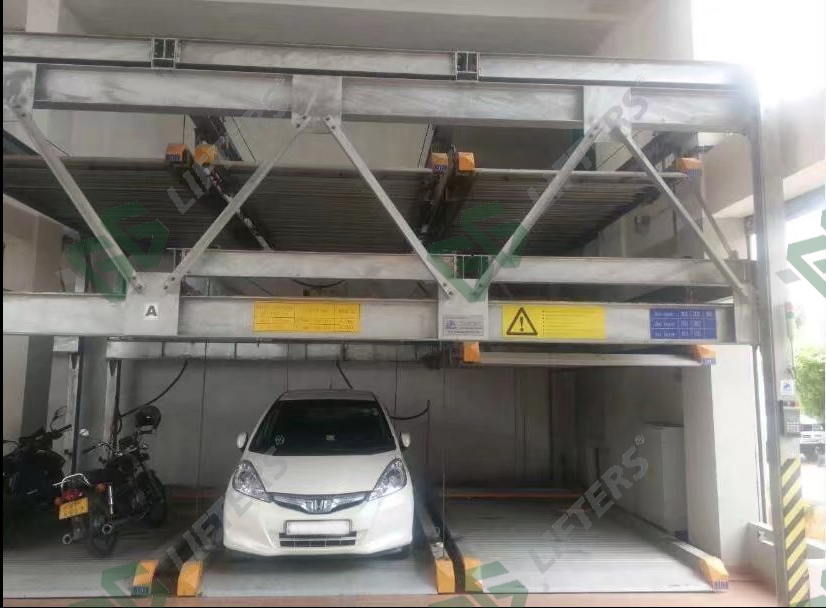

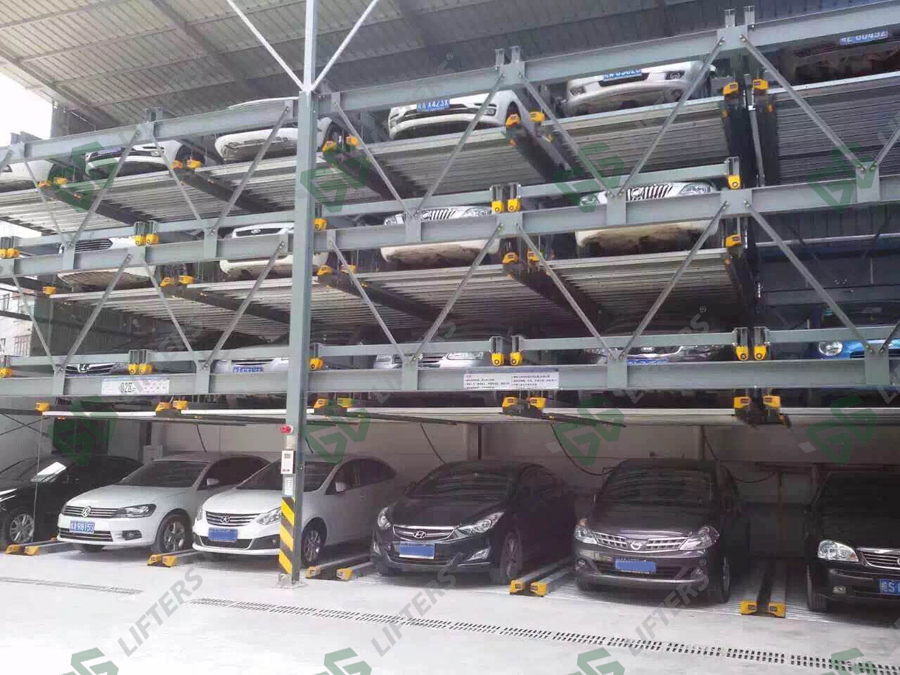

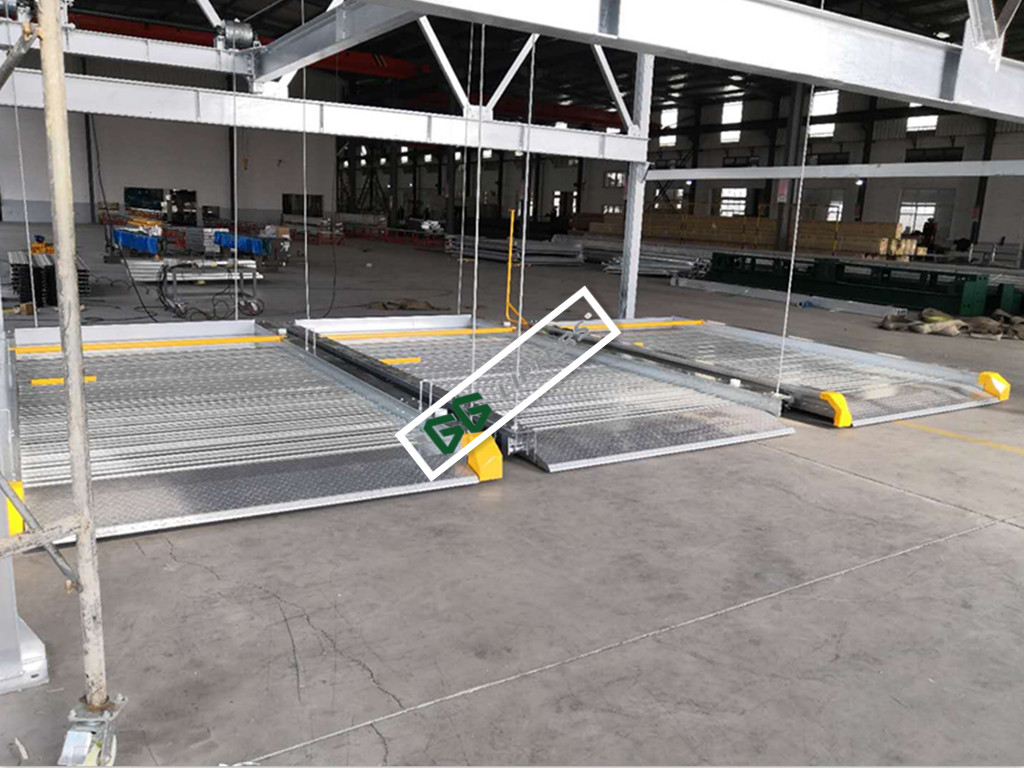

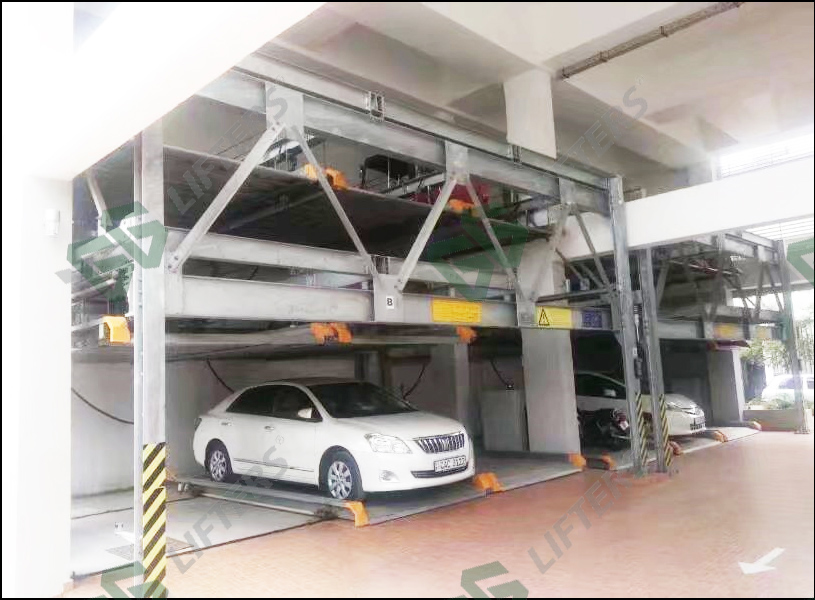

PUZZLE PARKING SYSTEM

Motor driven with chain / steel rope lifting system.

Dependent & space saving with multiple vertical levels (2-6) .

Except the top level, each layer has a spare parking space and front-rear guide rails through which the platforms move horizontally.

The platforms on the top layer can only move up and down and the ground layer can only move horizontally and other platforms can move in both directions.

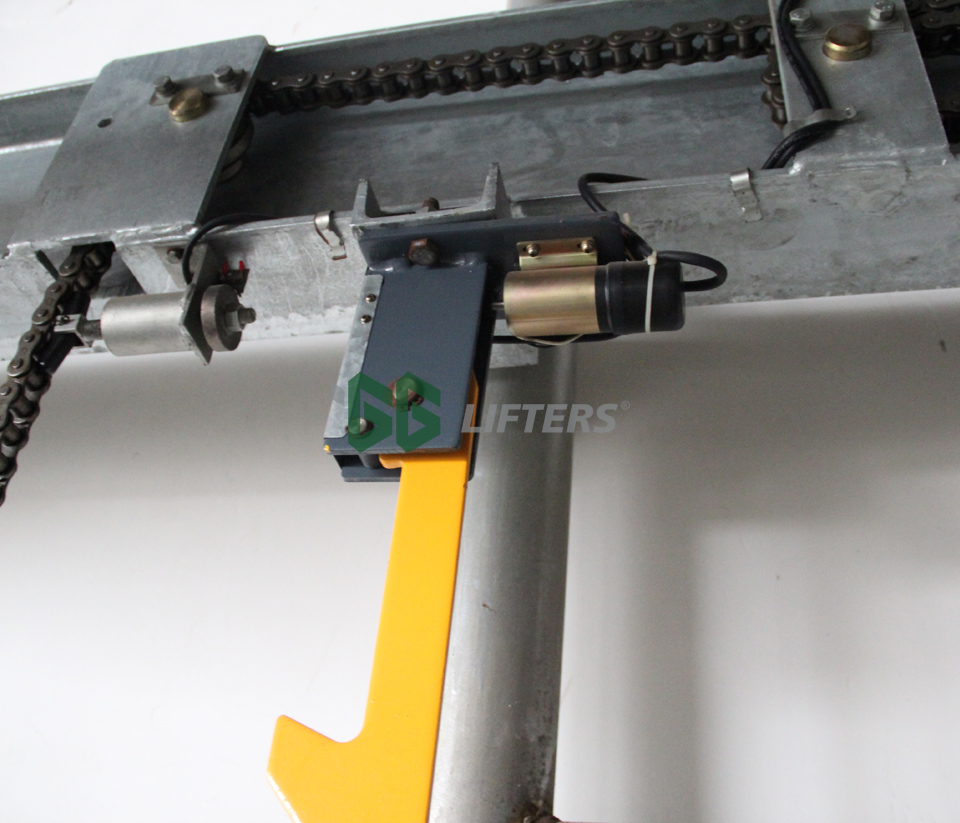

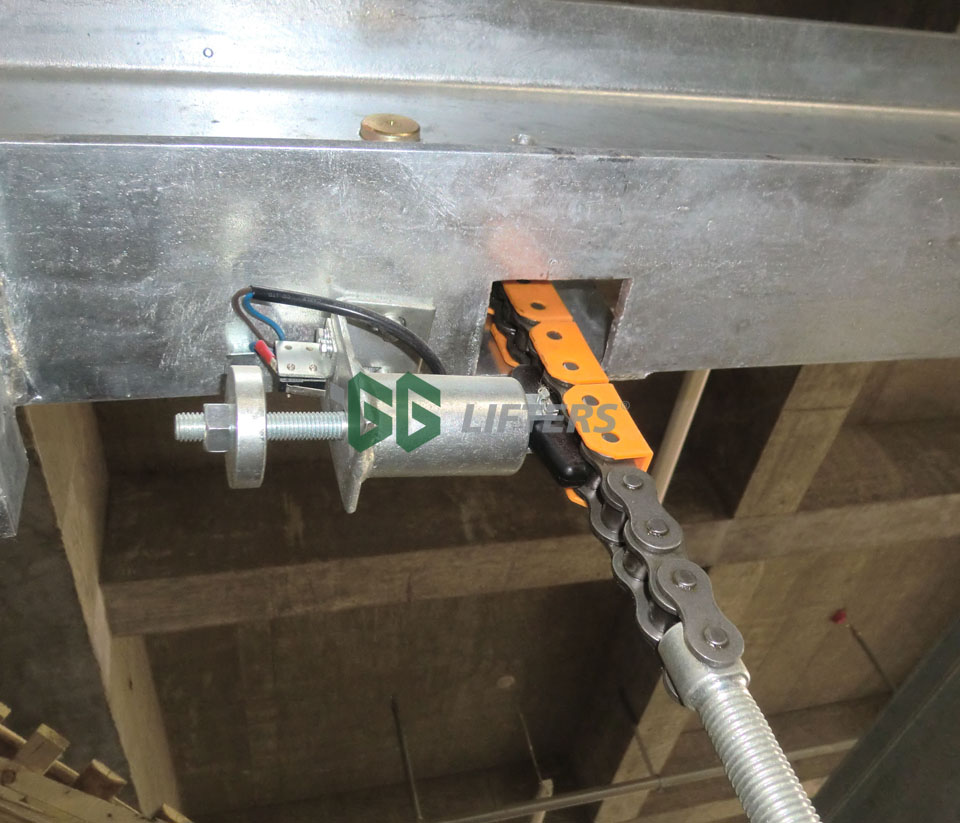

Safety hook device to prevent falling, collision and overload.

Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident.

Emergency stop push button mounted on operation panel as well.

PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.




PARAMETERS

Model NO

PSH20/2

PSH25/2

PSH30/2

Vehicle Size

L

≤5000 mm

          ≤5000 mm

≤5250 mm

W

≤1850 mm

          ≤1850 mm

≤2050 mm

H

≤1550 mm

          ≤1800 mm

≤1950 mm

Drive Mode

Motor Driven+ Roller Chain

Lifting Motor Capacity /Speed

2.2 Kw 8 M / Min (2/3 levels)
3.7 Kw 2.6 M / Min (4/5/6 levels)

Sliding Motor Capacity /Speed

0.2 Kw 8 M / Min

Loading Capacity

2000 Kg

                  2500 Kg

3000 Kg

Operation Mode

Keyboard / ID card / Manual

Lock Release

Electromagnetic lock release device

Power Supply

220 V / 380 V, 1 Ph / 3 Ph, 50 Hz / 60 Hz, 2.2 Kw

Warranty

2 years against manufacturing defects

Color Chart

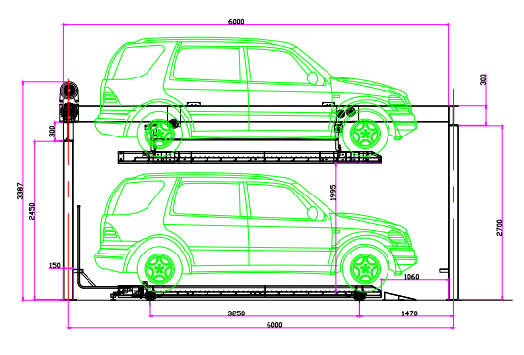

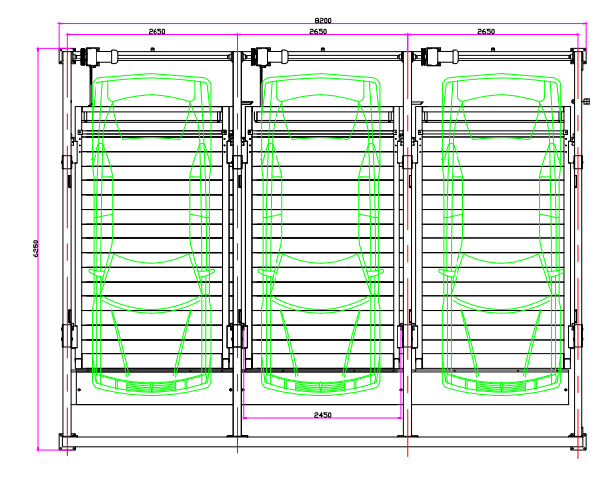

DRAWING

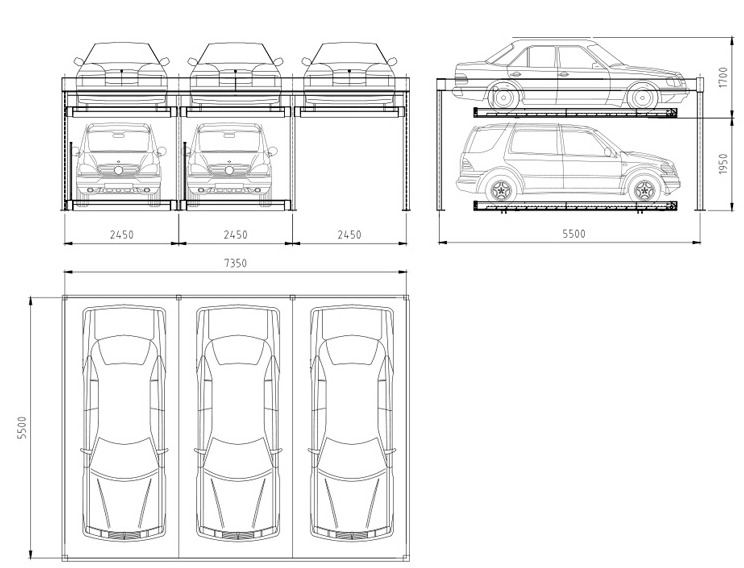

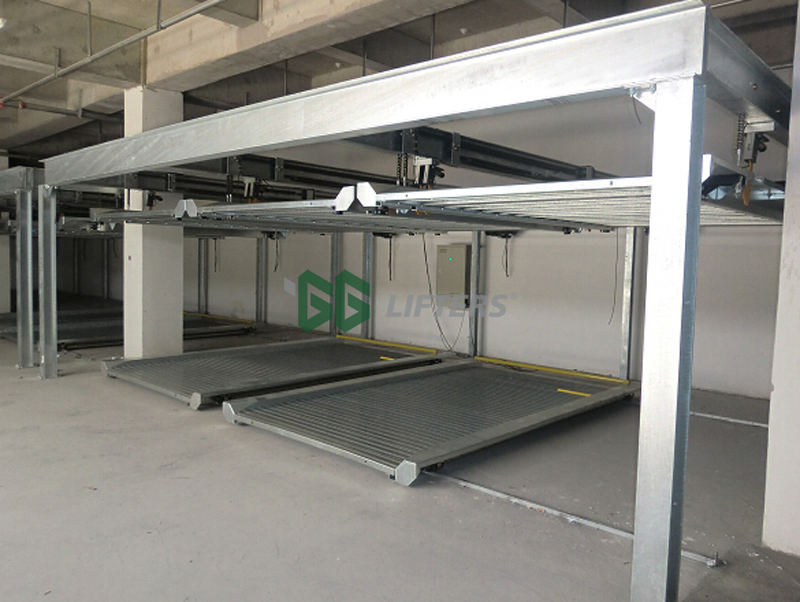

Customized case 1 : PSH20/2

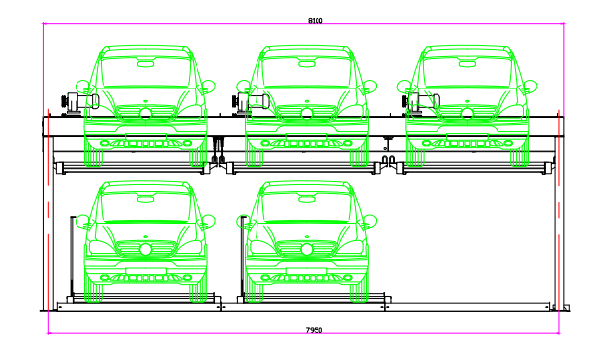

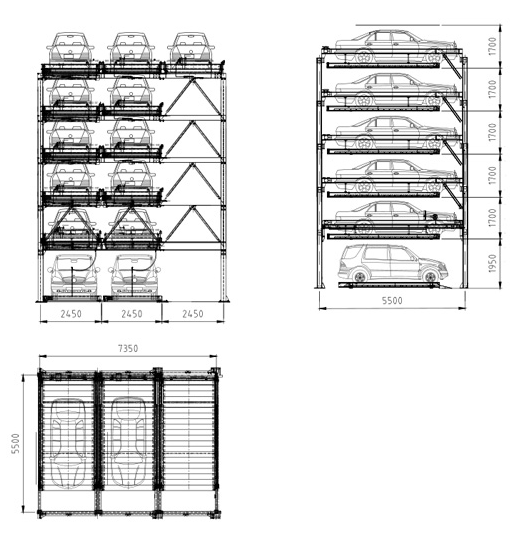

Customized case 3 : PSH25/6

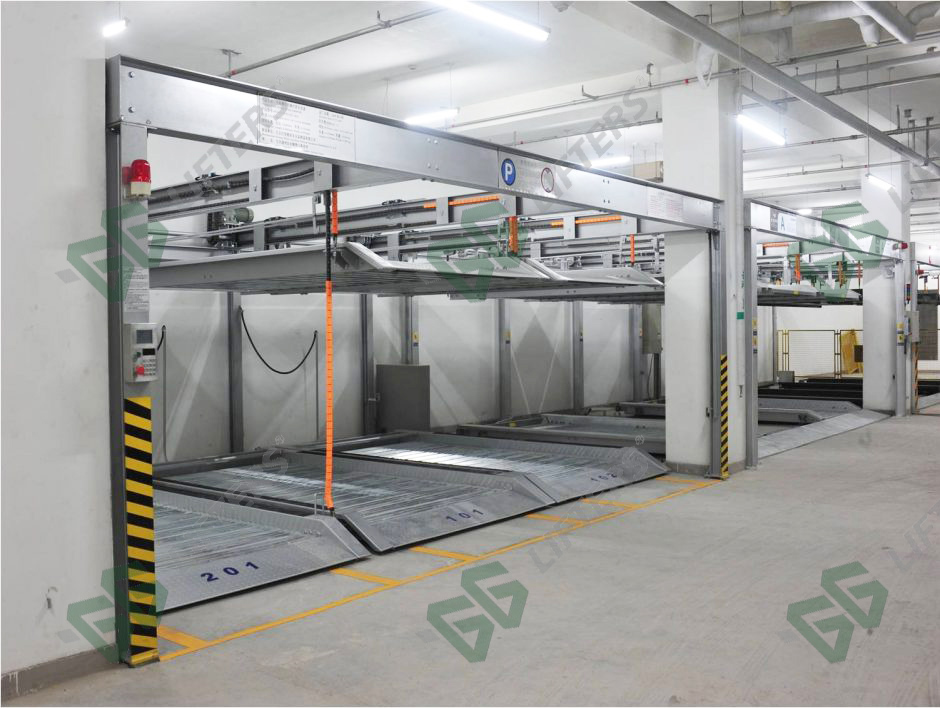

Customized case 3:  PSH30/2
