SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT
  • SINGLE POST CAR PARKING LIFT

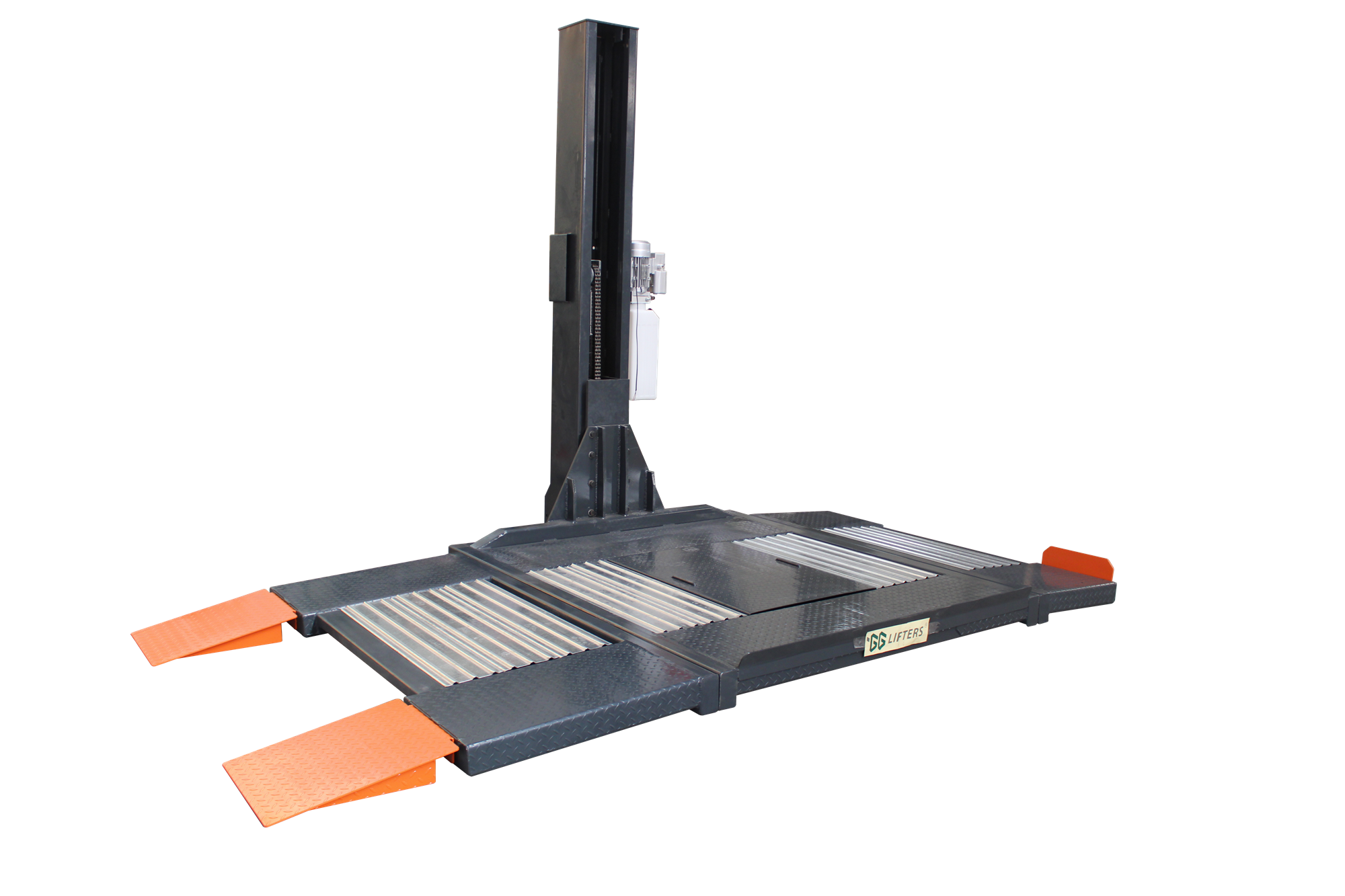

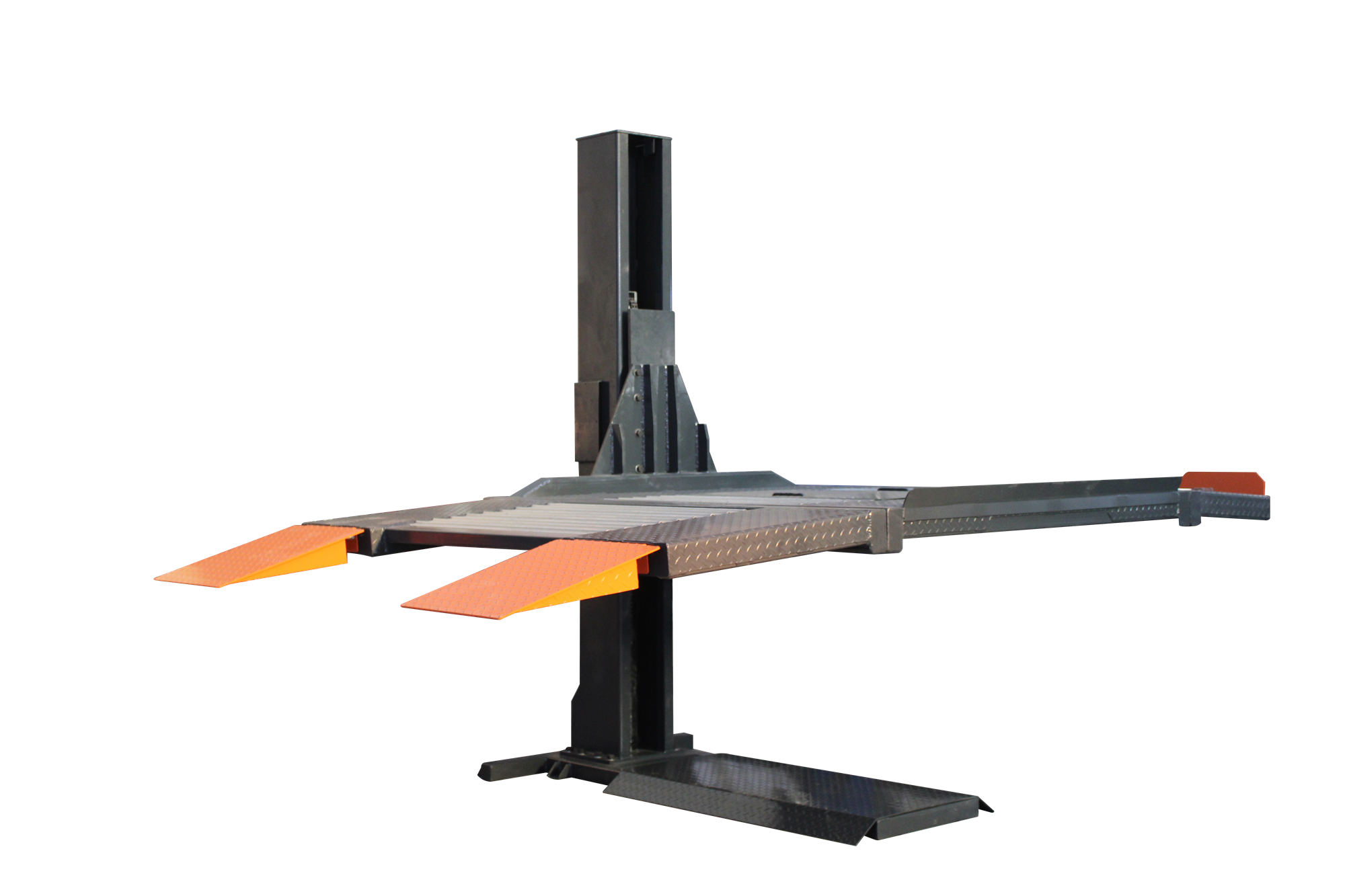

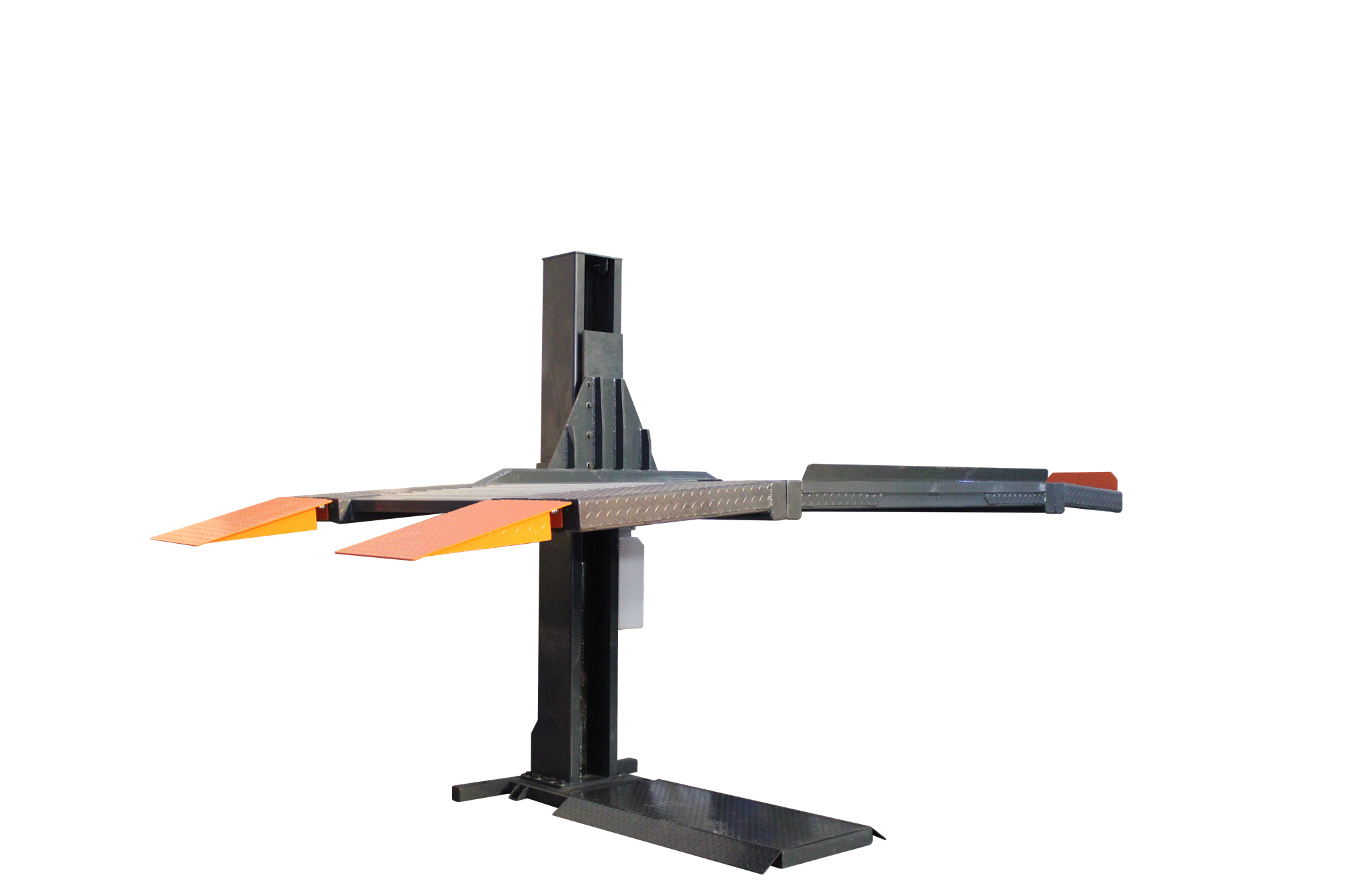

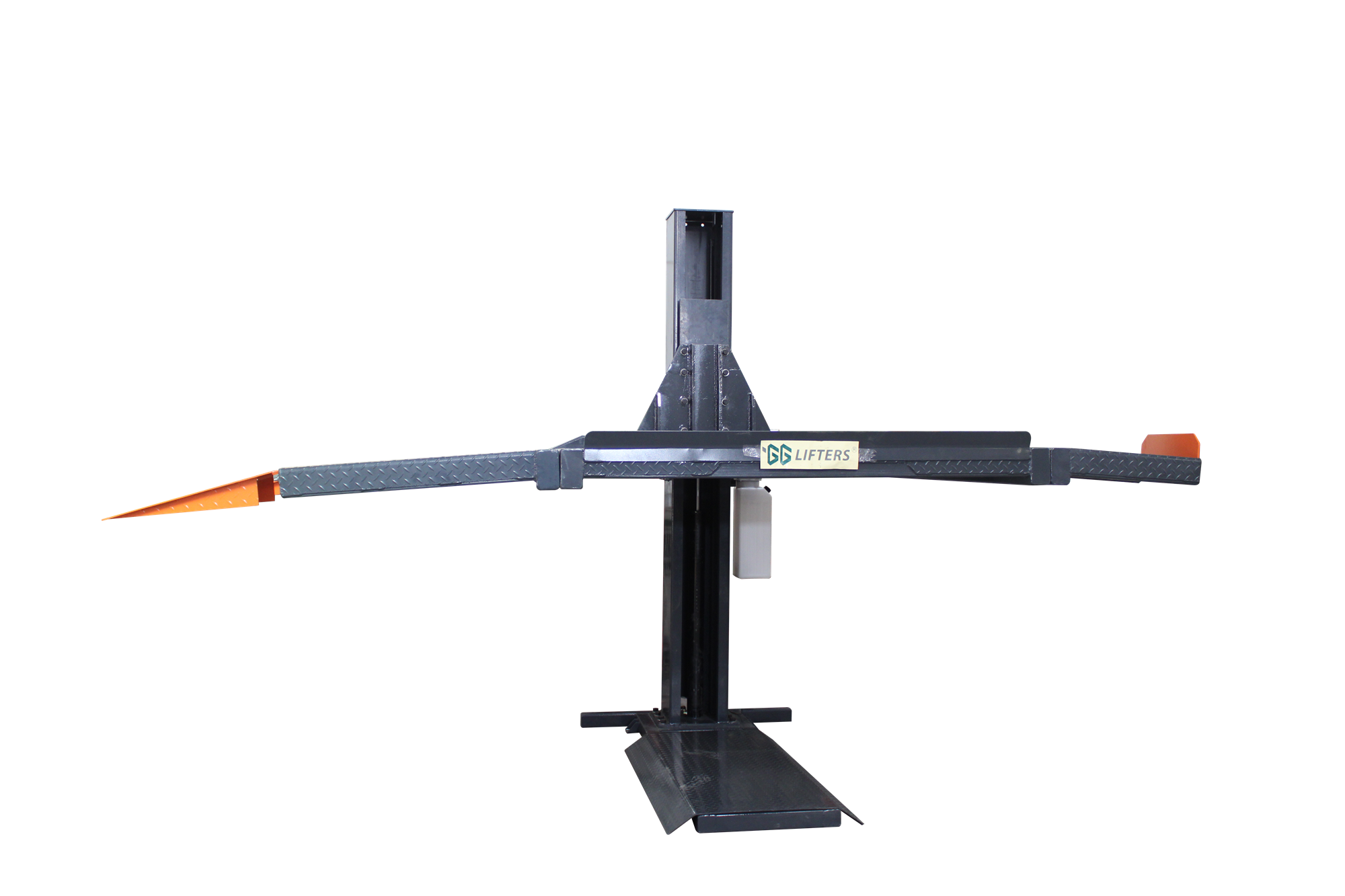

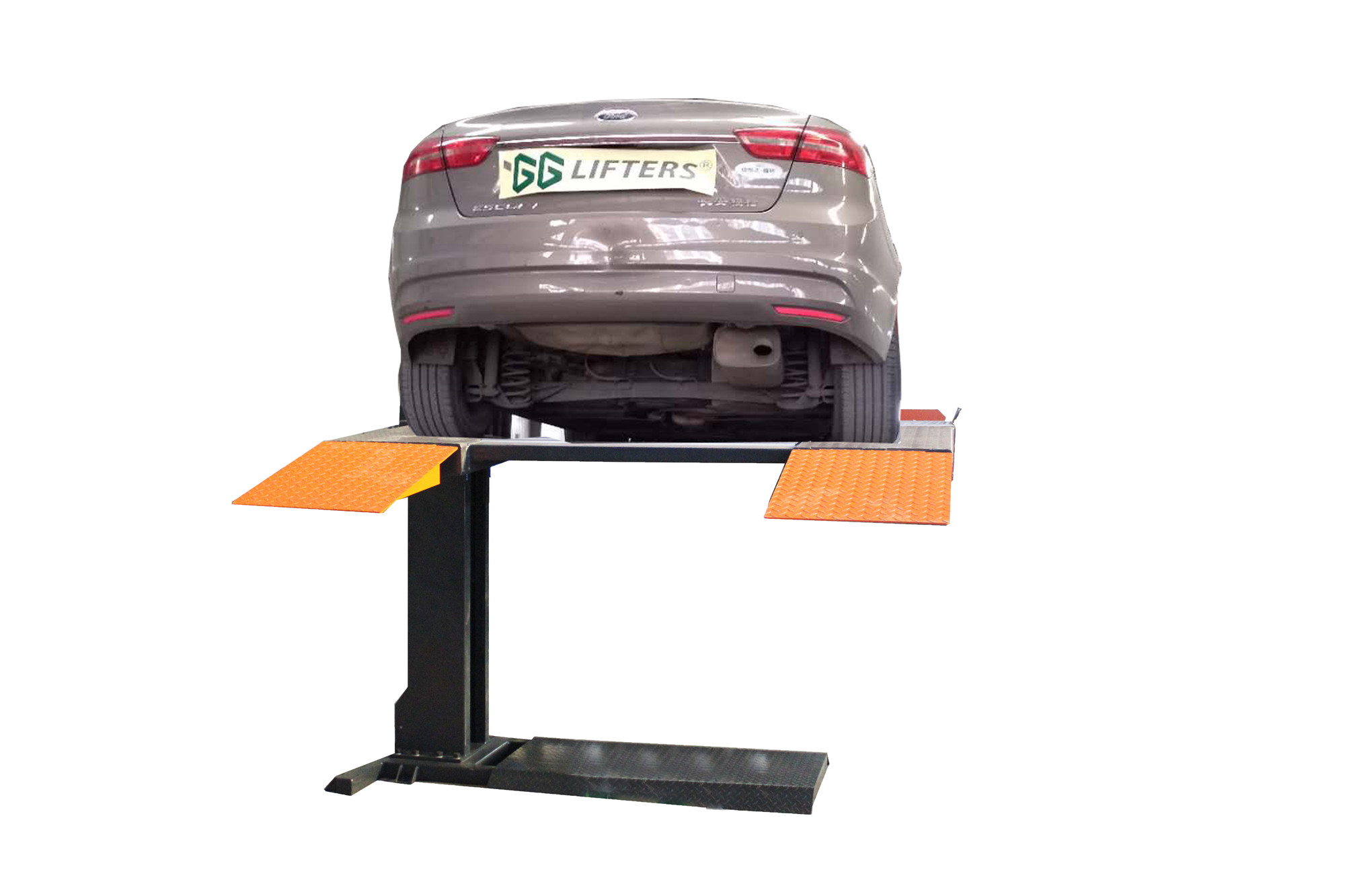

SINGLE POST CAR PARKING LIFT

CE product


Hydraulic driven and chain lifting system.

Single stage hydraulic cylinder.

Automatic lock & electric Lock release.

Compact size and streamlined design without need for maneuvering area.

Space saving, free entrance and exit .Suitable for residential use.

Usability in corridors , aisles to park the car on platform without blocking the road.

Platform runway made of diamond steel plates and wave plates in the middle.

Folded diamond steel ramps make a much easier parking for sports cars.

This system complies with Eurppean Standard BS EN 1493:2010

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.



VIDEO

PARAMETERS

Model NO. POP20/1850
Lifting Capacity 2000 Kg
Max Lifting Height 1820 mm
Lock Release Electric Unlock
External Dimension 3945*2631*2479 mm
Parking Width 2000 mm
Documents with Shipping Installation & User Manual Booklet and Troubleshooting Sheet
Rise/Drop Time 60 S / 50 S
Power Supply/Motor Capacity 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
Color Chart

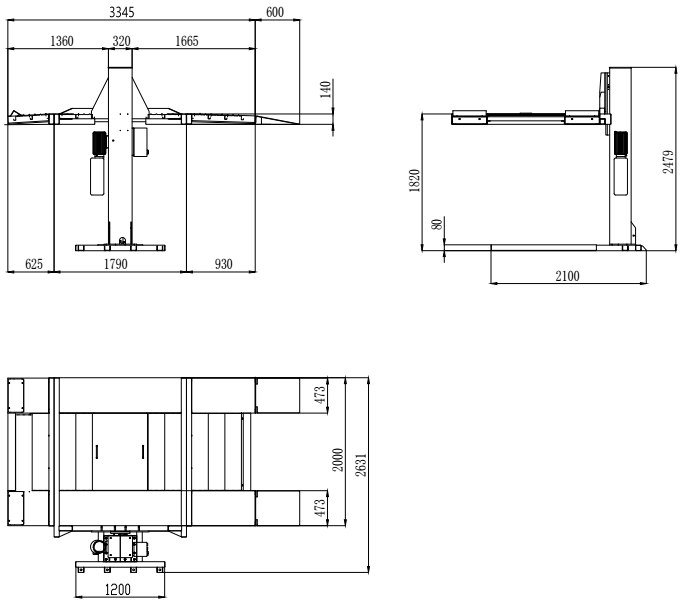

DRAWING

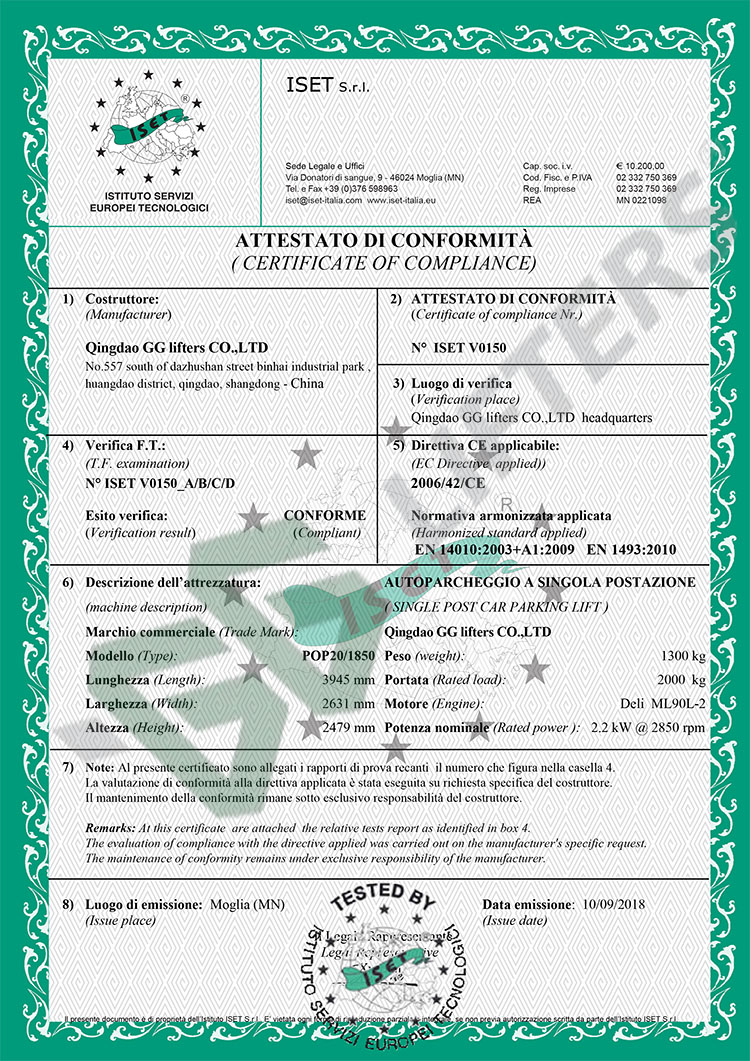

CE
