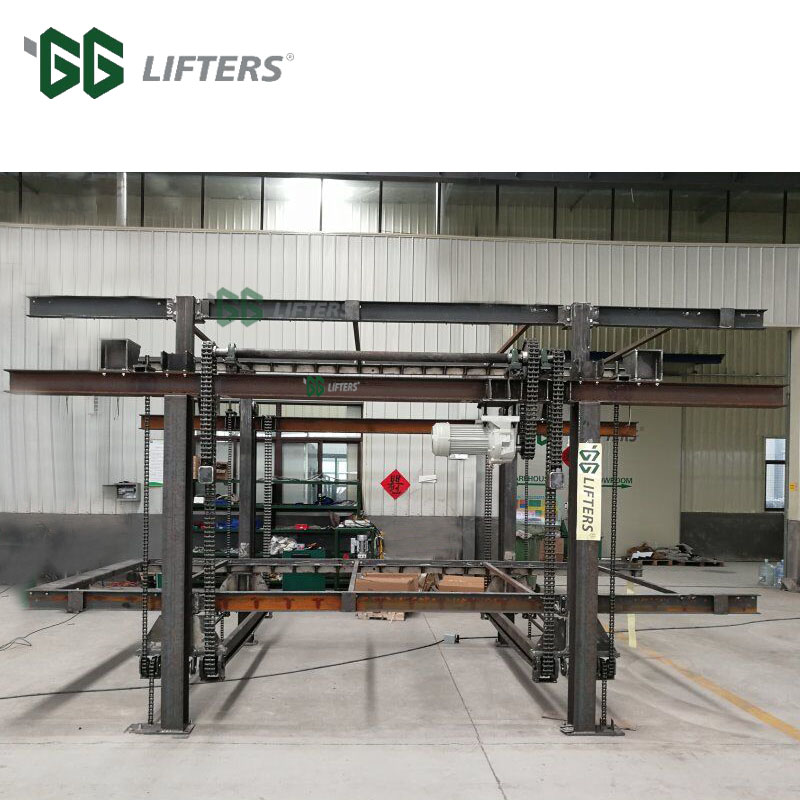

MOTOR DRIVEN PIT CAR PARKING SYSTEM (PDK)

MOTOR DRIVEN PIT CAR PARKING SYSTEM (PDK)

CE APPROVED

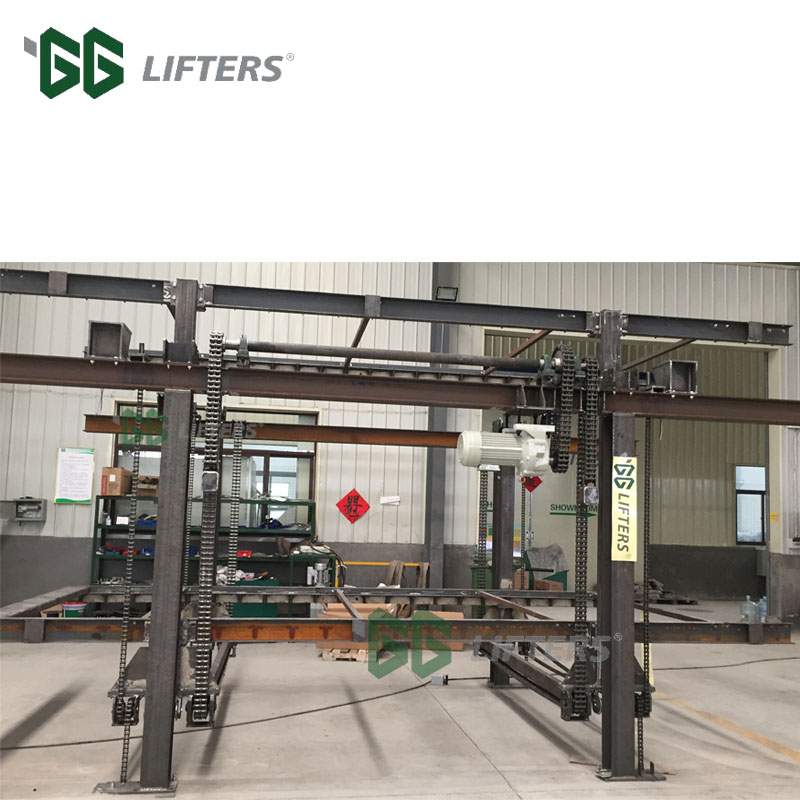

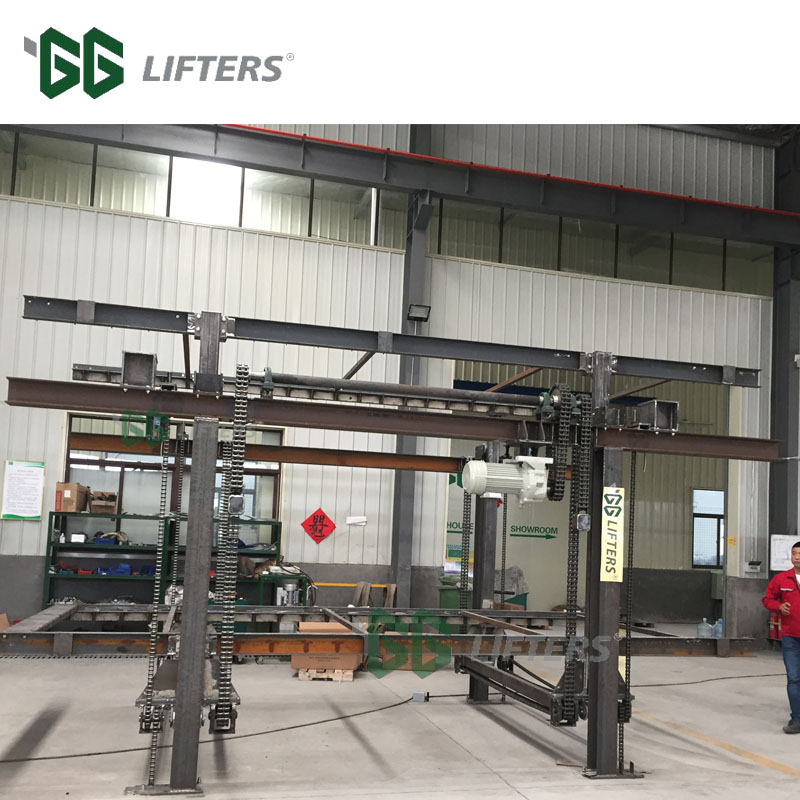

Motor driven and chain balance system.

Fully utilization of underground space, no prominent steel structure above ground level.

Directly park or pick up the car at any level independently.

Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance.

Multiple mechanical locks on posts to ensure safety.

Flexible designed according to customer requirements, suitable for residential & commercial use.

Electric sensors to confirm no persons or objects before rising up/down the platforms.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


VIDEO

PARAMETERS

Model NO. PDK20L2/C PDK25L2/C PDK20L3/C
Lifting Capacity 2000 Kg 2500 Kg 2000 Kg
Lifting Height 1700 mm 2100 mm 1700 mm
Vertical Speed 2-3 M / Min 4-6 M / Min 2-3 M / Min
Lock Release Electric Unlock
External Dimension 5340*2944*2730 mm 5340*2944*2730 mm 5340*2944*4250 mm
Internal Pit Dimension 5400*3000*2730 mm 5400*3000*2730 mm 5400*3000*4250 mm
Drive Mode Motor and Chain
Vehicle Size 5000*1850*1950 mm 5200*2000*1980 mm 5000*1850*1550 mm
Parking Mode 1 on the ground, 1 underground 1 on the ground, 2 underground
Parking Space 2 3
Documents with Shipping Installation Manual Book, User Book, Trouble Shooting Sheet
Rise/Drop Time 70 S / 60 S
Power Supply
Motor Capacity
220 V / 380 V, 50 Hz / 60 Hz,
1 Ph / 3 Ph, 3.7 Kw
220 V / 380 V, 50 Hz / 60 Hz,
1 Ph / 3 Ph, 5.5 Kw
Color Chart

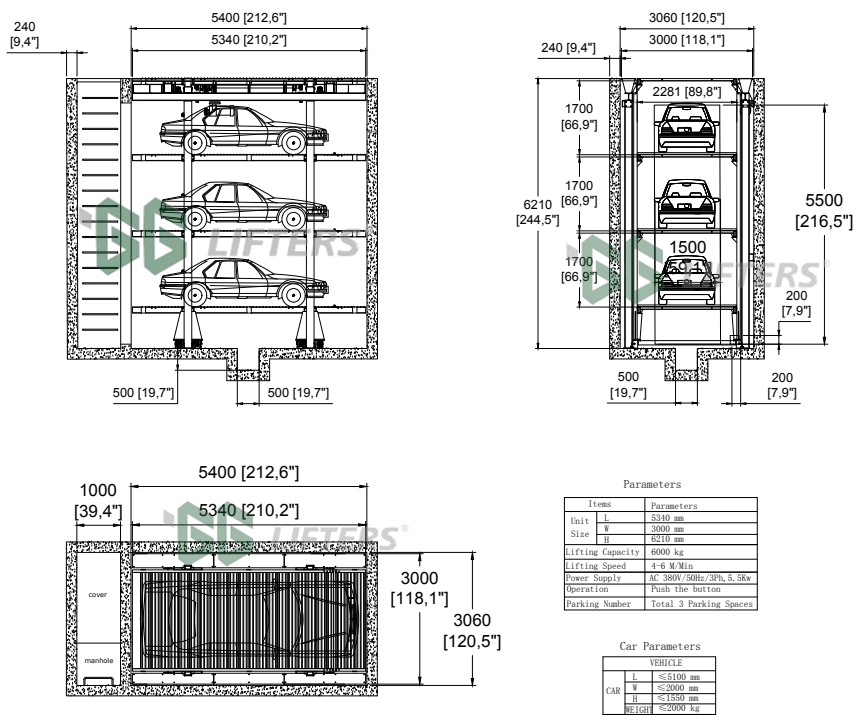

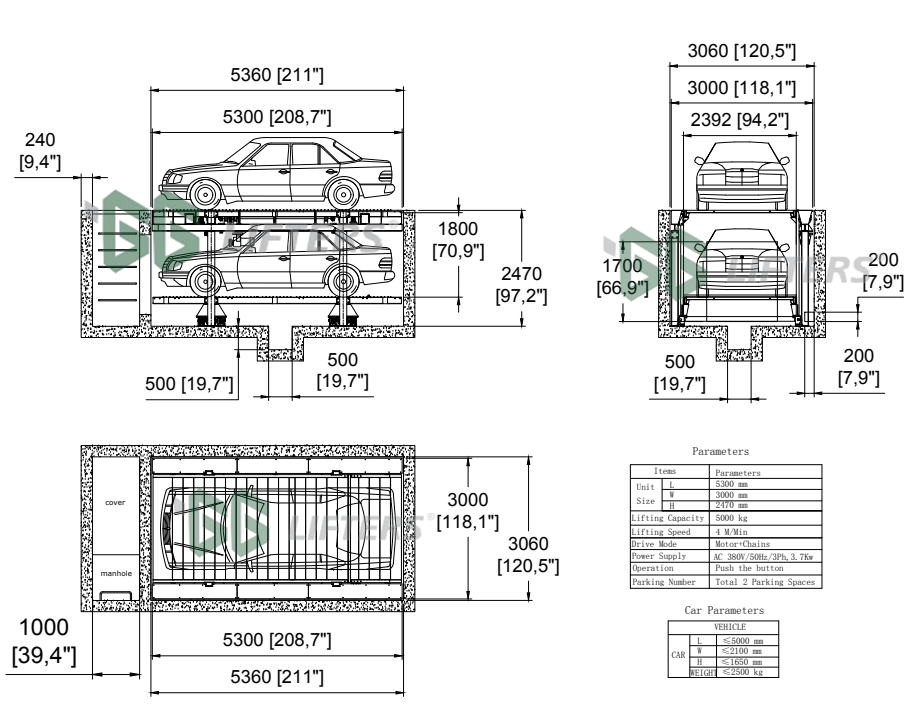

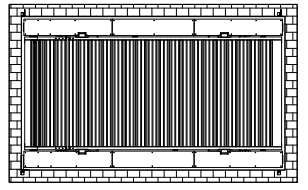

DRAWING

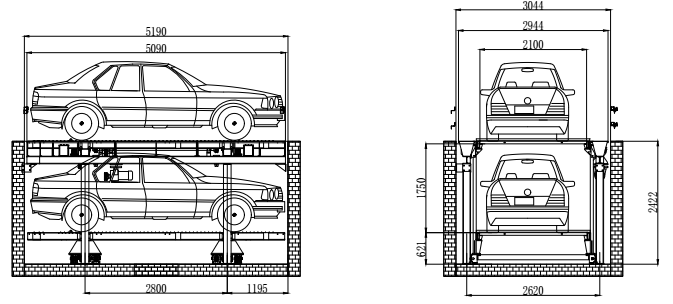

PDK20/L2


PDK20/L3


PDK20/L4

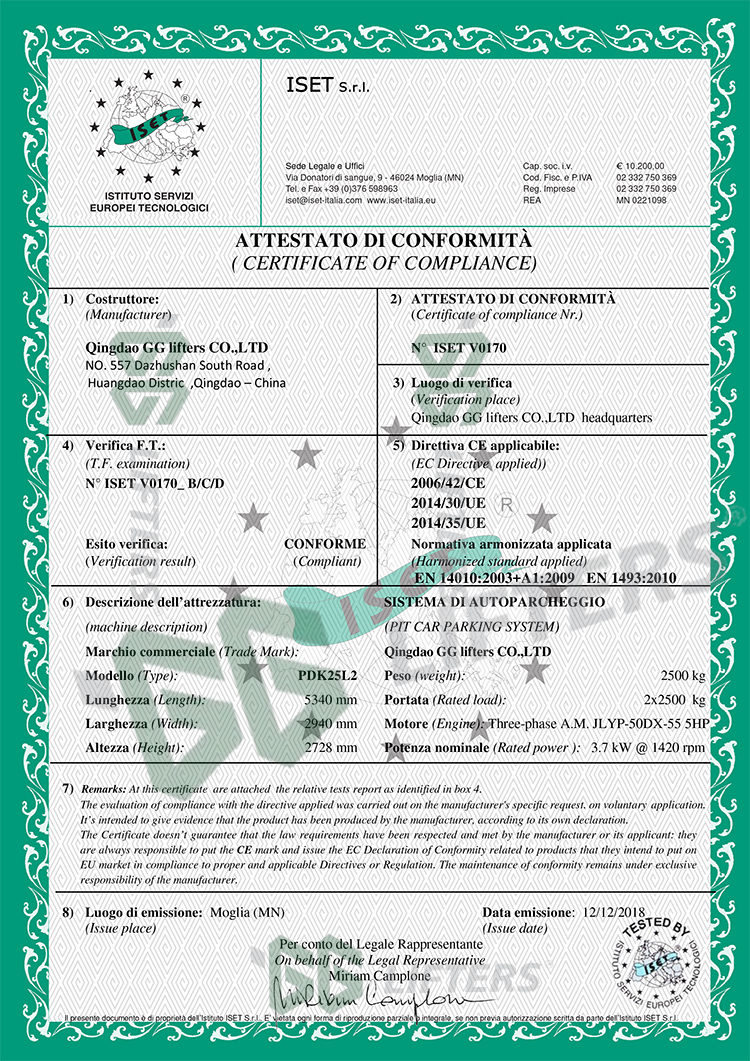

CE
