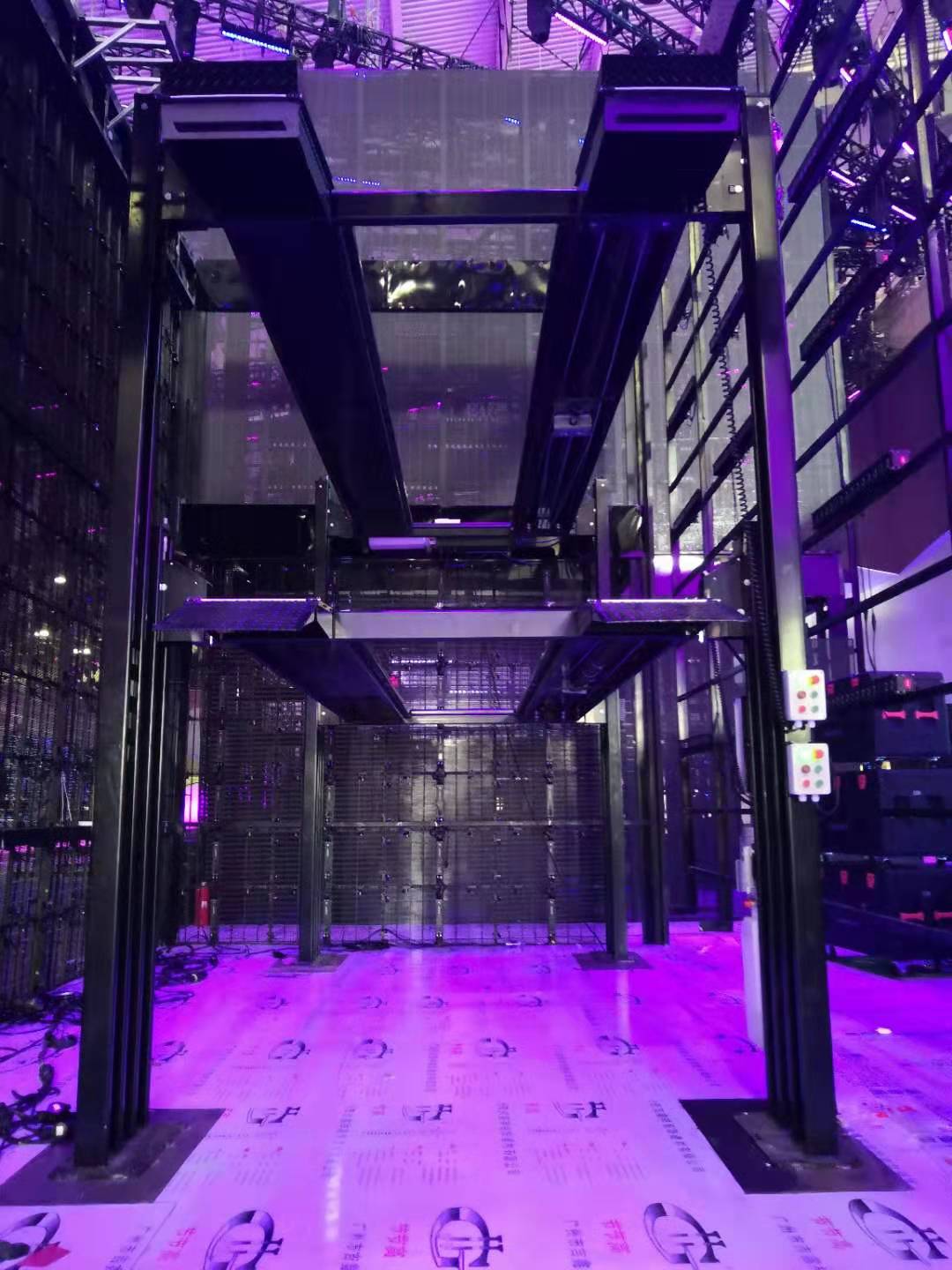

4 POST TRIPLE STACKER LIFT

1. 2 separated 4 post car parking lifts installed together, one external and one internal.
2. Hydraulic driven cylinder with wire rope lifting system through sheaves.
3. Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.

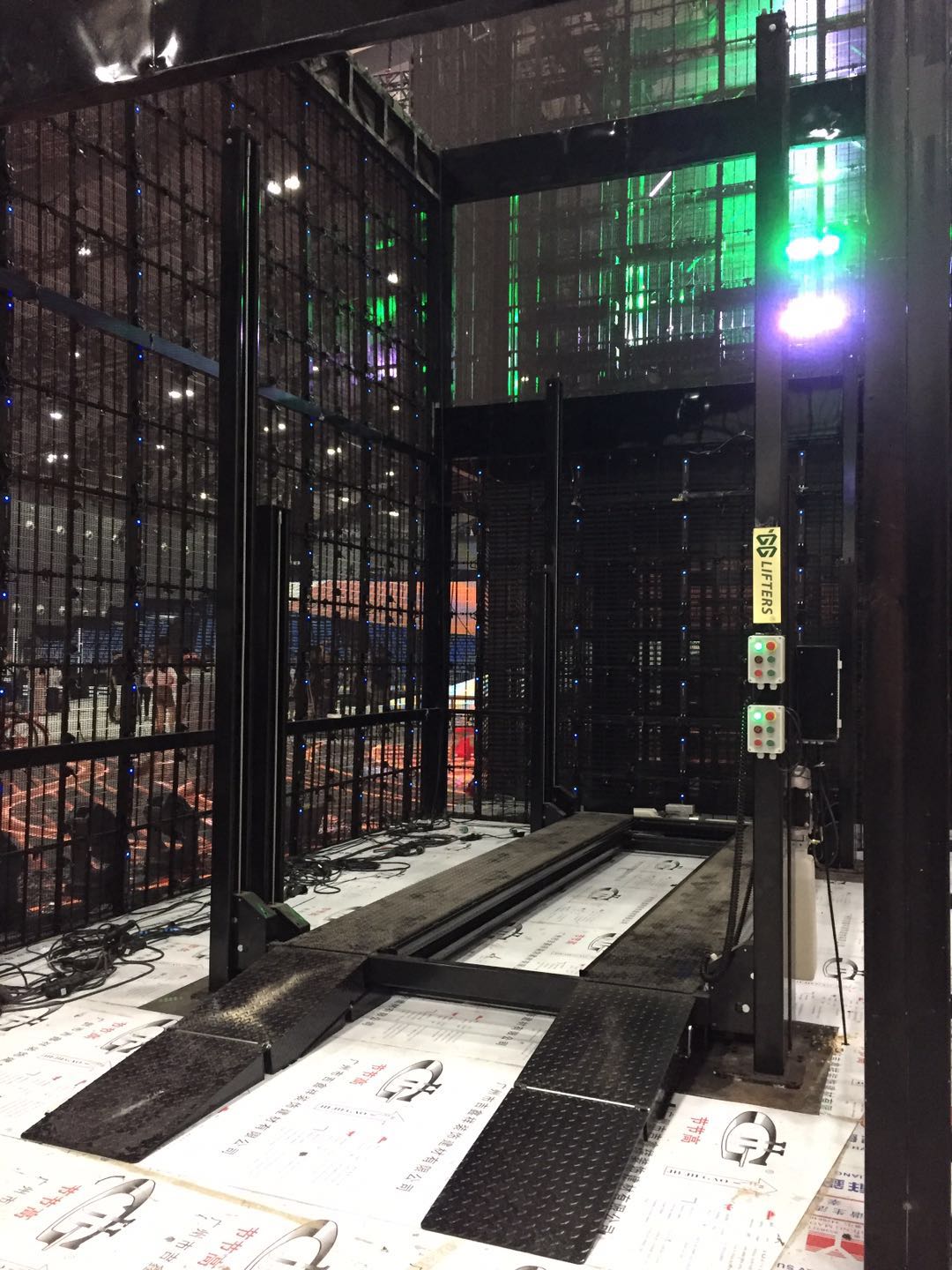

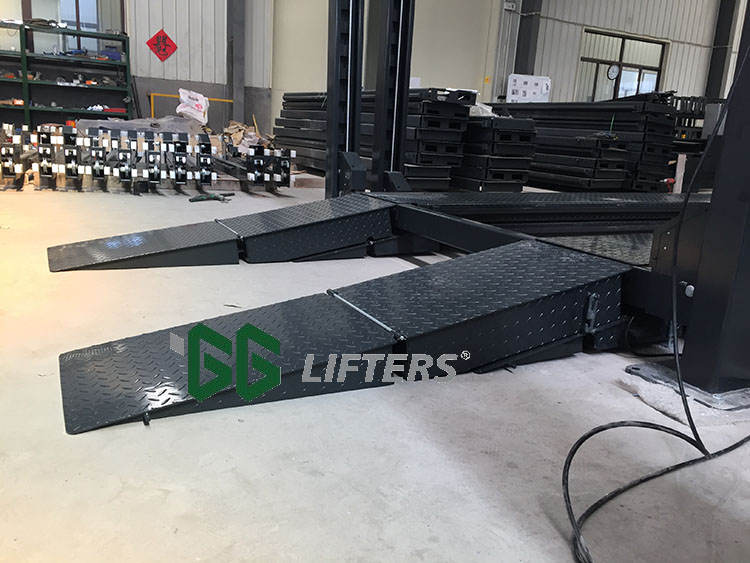

4. Foldable ramps suitable for sport cars and occupy less space.
5. Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.

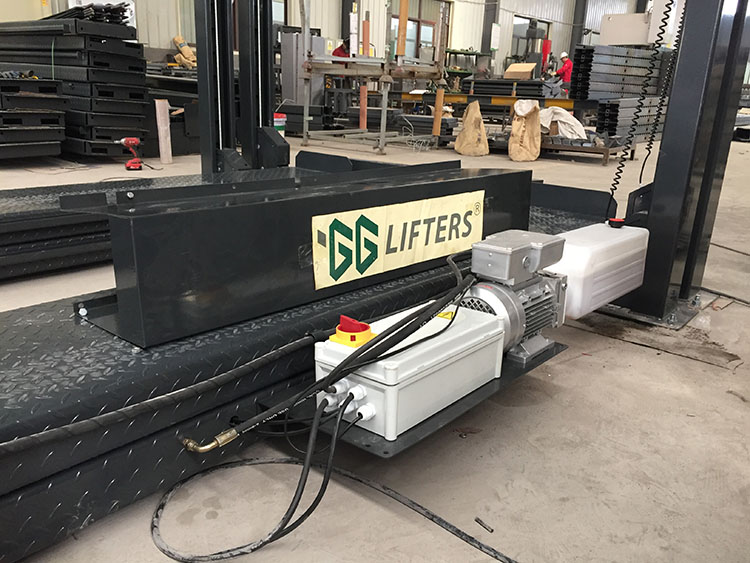

6. Electric control panel& hydraulic power unit of external lift will be placed inside a compartment fixed to the back side of its platform.
7. Electric control panel& hydraulic power unit of internal lift will be placed inside a compartment fixed to the right side of its platform.

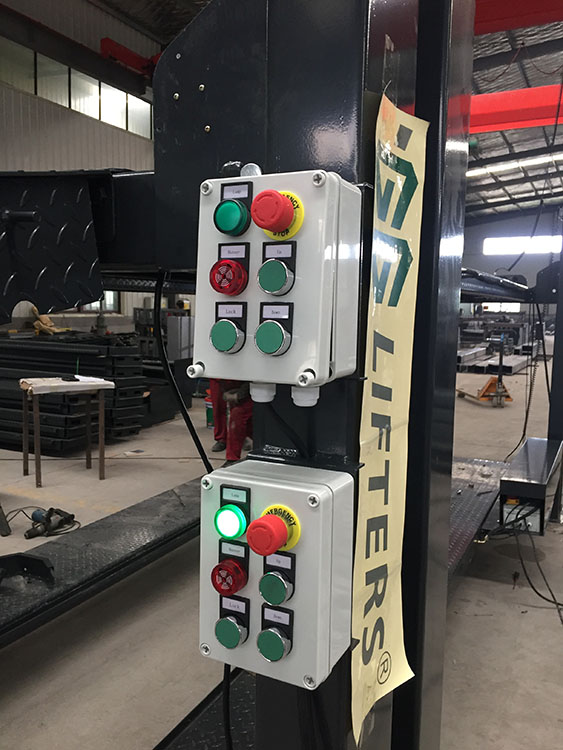

8. Separate Operation box for each lift, will be fixed on the front right post.
9. Wheel stoppers on upper platform.
10. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

PARAMETERS

Model PEP54 /3500
Lifting capacity 2700 kg / platform, and 5400 kg totally
Net lifting Height 1800/3500 mm
Unit External dimensions 6575 *2752*4065 mm
Platforms Length x Width Lower : 4198 x 1900 mm & Upper : 4780 x 1900 mm
Runway type Checkered steel plates
Electric parts Original Chint
Brand of oil seals in cylinder Aston , Italy
Lock release type Electromagnetic lock release
Middle in the runway  4 ea plastic oil trays in the middle of runway
Type of ramp Foldable ramps
Safety Devices One piece adjustable safety lock ladder and the other is activated automatically in case of steel wire rupture
Operation Type Push buttons on operation box
Power Supply 380/ 220 V , 50/60 Hz , 1/3 Ph
Motor Capacity 2 separate units each is 2.2 Kw.

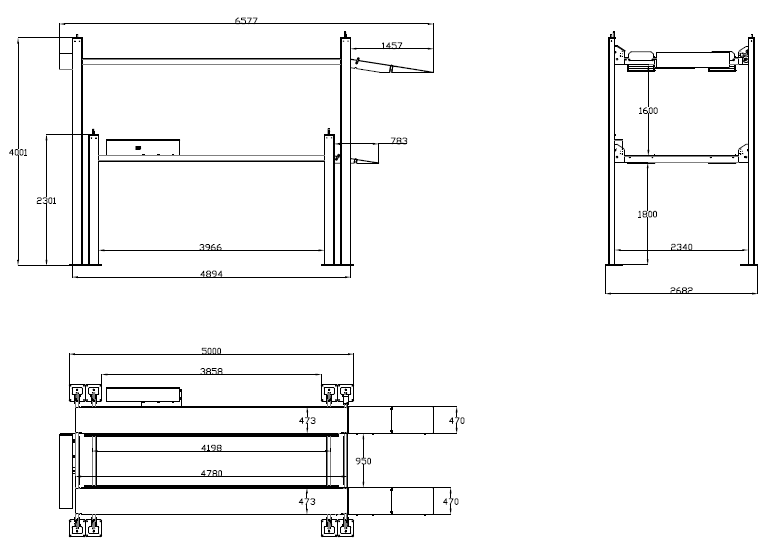

Drawing:
