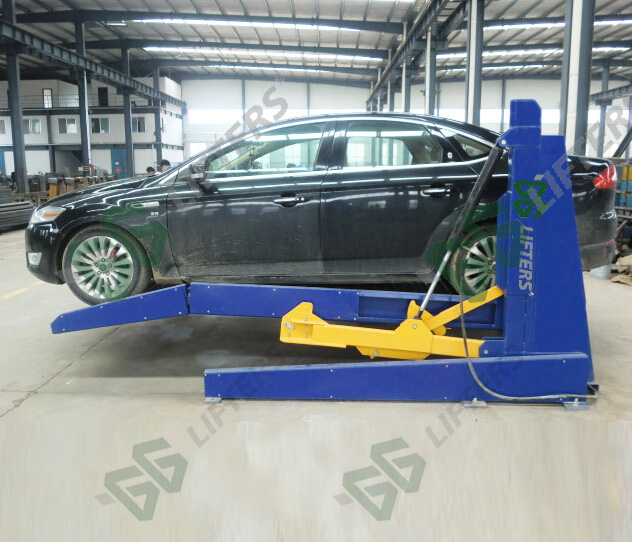

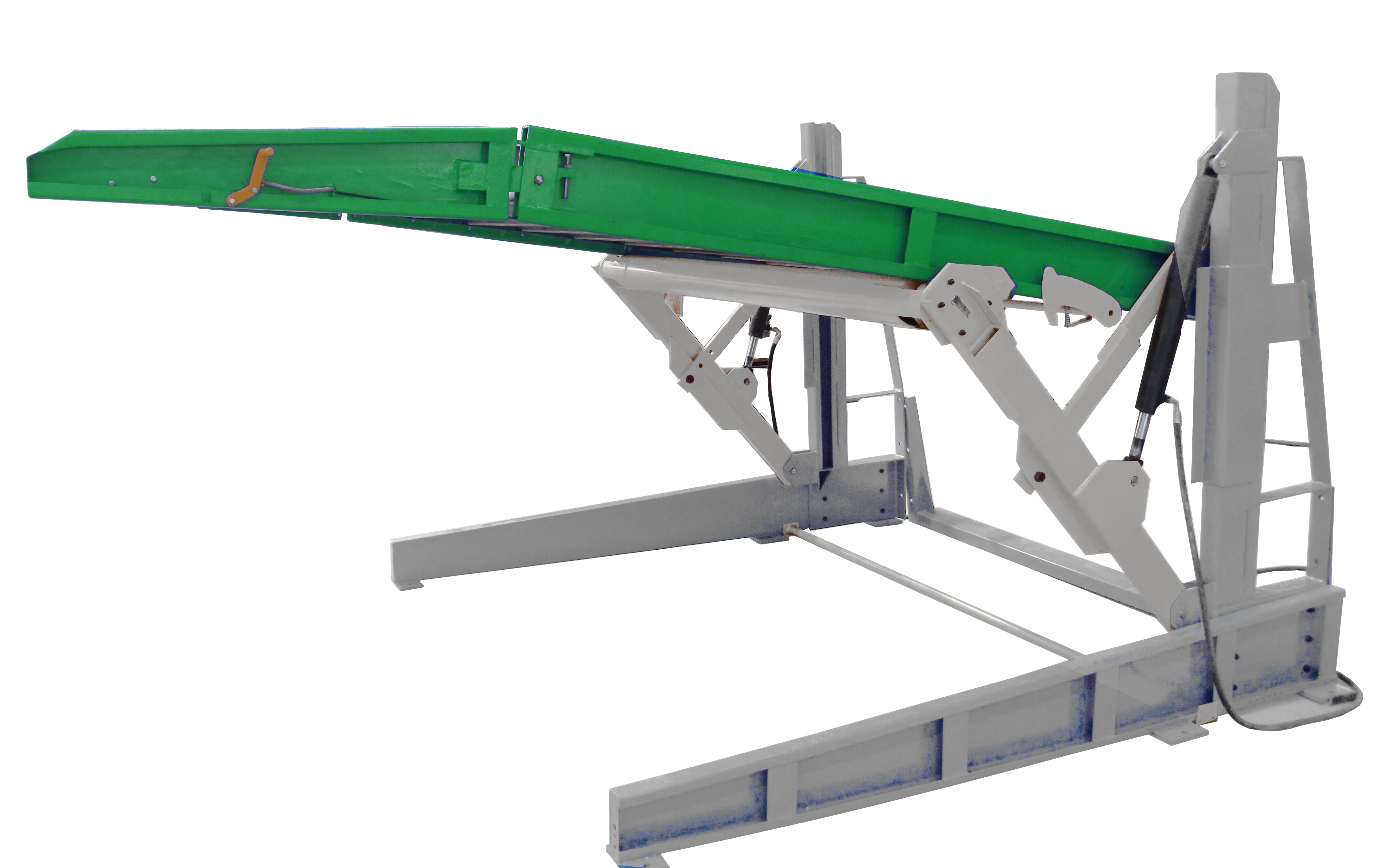

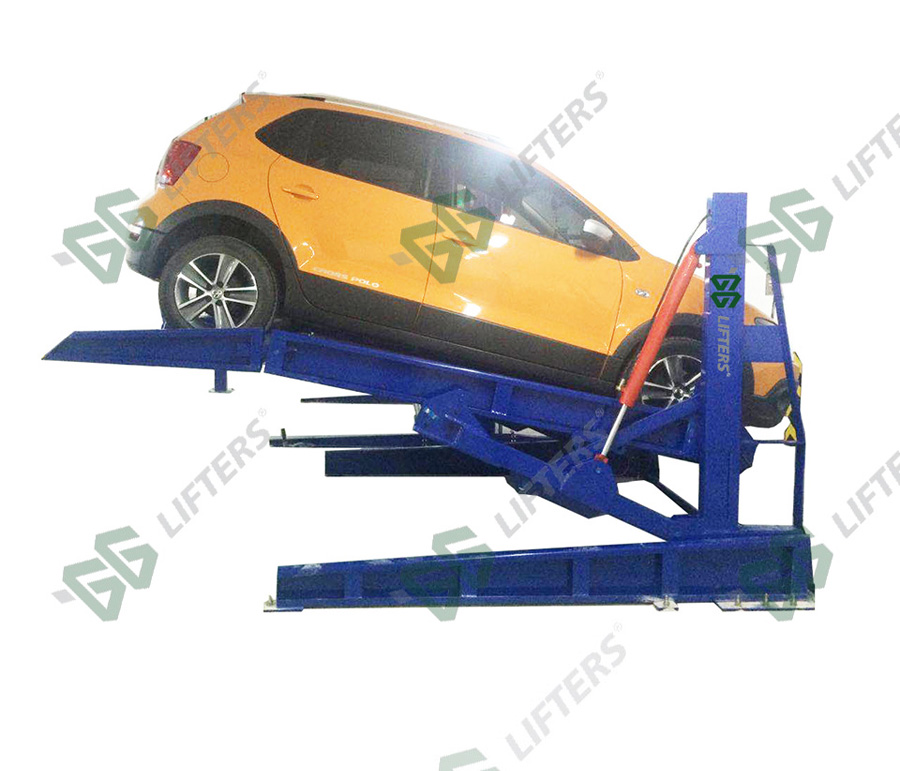

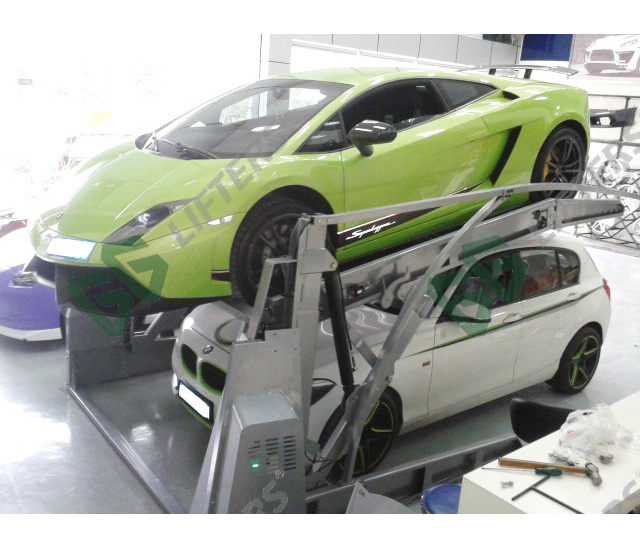

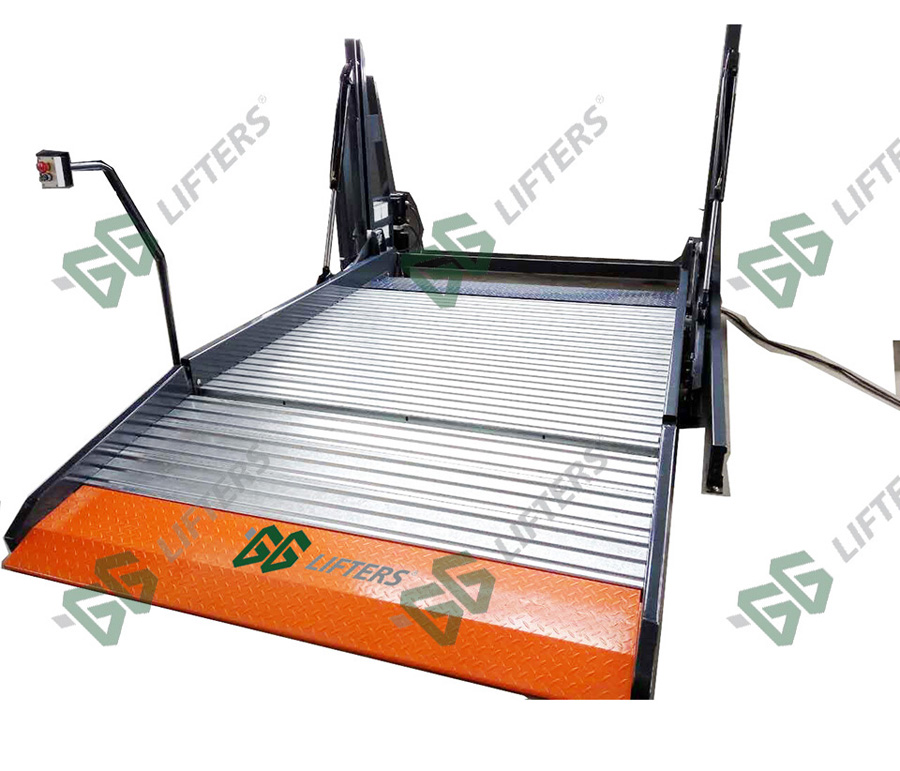

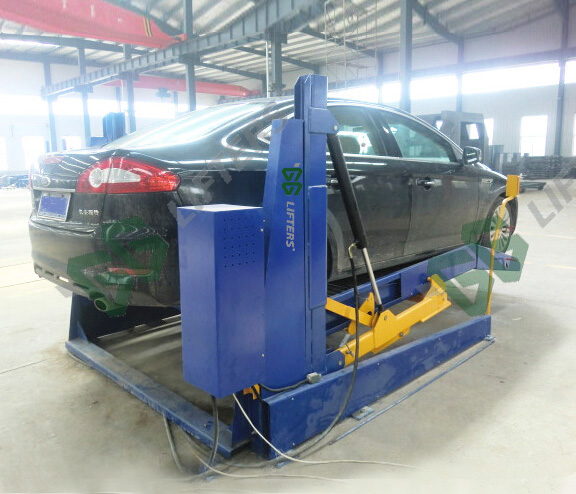

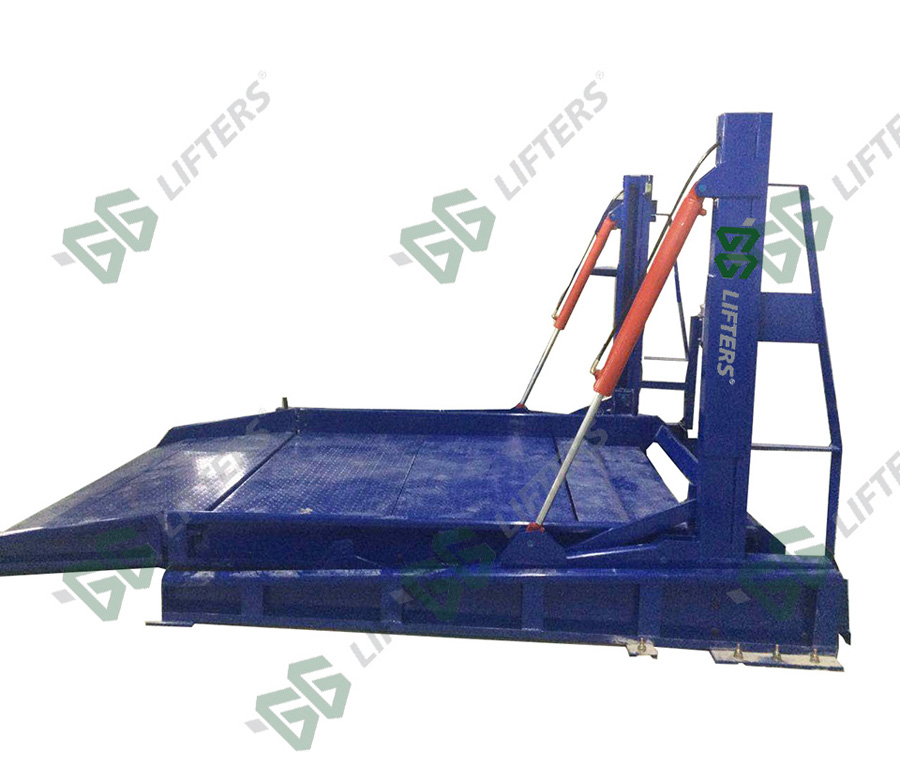

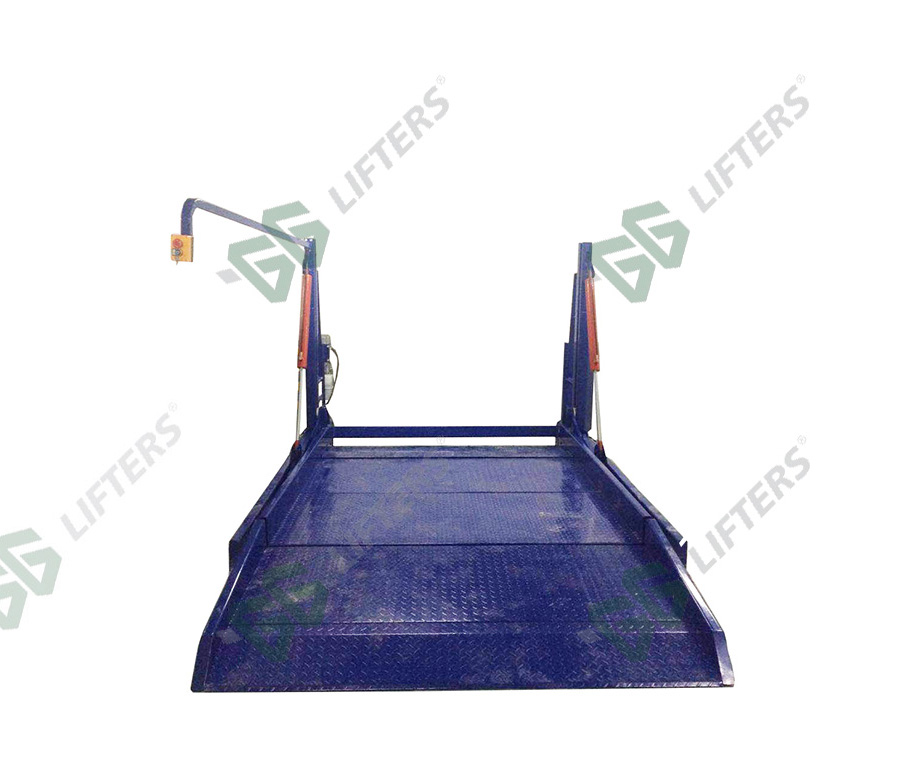

TILTING CAR PARKING LIFT

TILTING CAR PARKING LIFT

Single-stage dual-cylinder lifting system.

Automatic lock & electric Lock release.

Posts with low height to suite low – ceiling garage.

Adjustable platform angle to park different Sedan Cars.

Balance shaft to ensure synchronous up & down movement.

Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.



PARAMETERS

Model NO PTT20/1700
Lifting Capacity 2000 Kg
Lifting Height 1600 mm
Overall Height 1848 mm
Overall Width 2585 mm
Drive Through 2100 mm
Rise/Drop Time 50 S / 40 S
Parking Quantity 2 cars
Operation Mode Automatic/Manual
Temperature -20---45 ℃
Lock Release Electric Unlock
Installation Space 5295*2750*2094 mm
Power Supply/Motor Capacity 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
OR according to customers' request
Color Chart

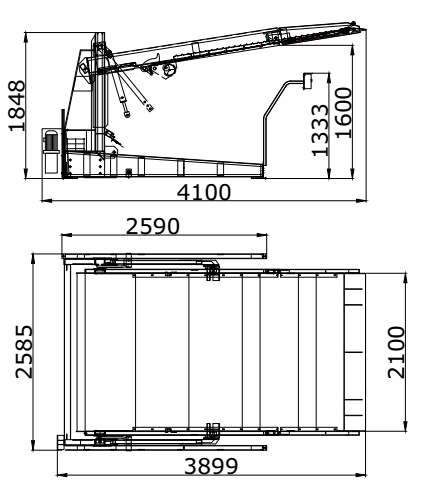

DRAWING
